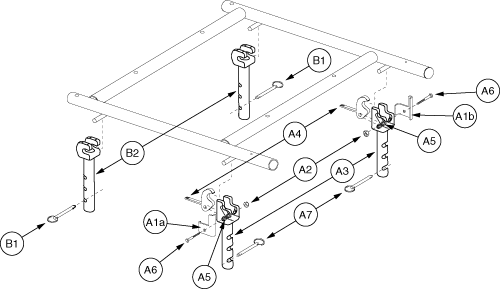

Jazzy 1170 XL - Towers / Mounts / Actuator - Jazzy 1170xl - H -Frame


Pos.
MPN
Details
A1 - B2
FRMASMB6267

TOWER, ASSY, H-FRAME MOUNT, 3 HOLE, FRONT/REAR, JAZZY

---
A1a - A7
FRMASMB1195

TOWER, ASSY, FRONT, RIGHT, JAZZY

---
A1b - A7
FRMASMB1194

TOWER, ASSY, FRONT, LEFT, JAZZY

---
A1a
IND1211A002

MOUNTING BRACKET, SEAT RETAINING, RIGHT

---
A1b
IND1211A001

MOUNTING BRACKET, SEAT RETAINING, LEFT

---
A2
NUTNYLK1003

NUT, NYLOCK, ZINC, 1/4-20

---
A3
PLSINDV1014

SEAT TOWER, FRONT, C-1200-156

---
A4
IND1242A000

LATCH, STD JAZZY SEAT

---
A5
SPGRAW1003

SPRING, RAW, DOUBLE TORSION, B-1114-018

---
A6
SCRHHCS1034

SCREW, HHCS, BLACK ZINC, 1/4-20 X 2.00", GRADE 5

---
B1 - B2
FRMASMB1602

TOWER, ASSY, REAR, JAZZY

---
B1
PINCOTD1000

Monster Scooter Parts

1-1/2" Quick Release Pin

$4.99
View details
B2
PLSINDV1015

SEAT TOWER, REAR, C-1200-157

---
