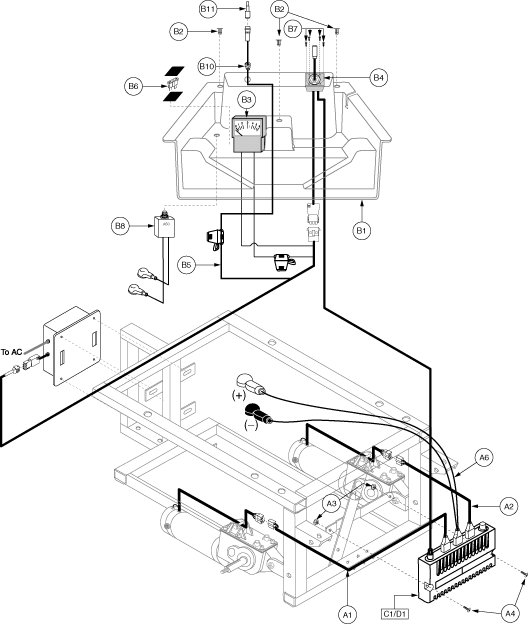

Jazzy 1170 XL - Electronic (Utility) Tray - Remote Plus - Tru -Balance Pwr. Positioning - Actr. Function Through Drive Ctrl.


Pos.
MPN
Details
A1 - B11
ELEASMB4415

ELECTRONIC, ASSY, REMOTE PLUS, JAZZY1170, QUANTUM

---
A1
HARUSHD2154

ELECTRONIC, HARNESS, REMOTE PLUS, MOTOR CONT, RIGHT, H-1200-100

---
A2
HARUSHD2153

ELECTRONIC, HARNESS, REMOTE PLUS, MOTOR CONT, LEFT, H-1200-099

---
A3
NUTNYLK1001

Pride Mobility

NUT, LOCK, PVTP, 10 (.190)-32, IFI-100/107, BZ (NUTNYLK1001)

$3.29
View details
A4
SCRASBH1027

SCREW, BHSCS, BLACK ZINC, 10-32 X 0.50"

---
A6
ELEASMB3234

ELECTRONIC, ASSY, BATTERY CABLE, W/125A/32V FUSEABLE LINK, QUICK DISCONNECT, REMOTE PLUS, H-1400-002

---
B1 - B11
PLSASMB1915

ELECTRONIC, ASSY, REMOTE PLUS TRAY, JAZZY1170, QUANTUM

---
B1
PLSTRAY1010

ELECTRONIC, UTILITY TRAY, JAZZY, ROUND HOLE, RIGHT

---
B2
PLSXTRE1000

RATCHET FASTENER, BLACK, NYLON, M8 HOLE SIZE X 15MM L

---
B3
ELEMETR1000

ELECTRONIC, METER, AMPS, UTILITY TRAY

---
B4
DWR1010H051

ELECTRONIC, HARNESS, POWER INTERFACE/CHARGER CABLE, REMOTE PLUS, RIGHT, H-1010-051

---
B5
DWR1010H098

ELECTRONIC, HARNESS, CHARGER/POWER TAKE OFF(PTO)/INHIBIT, FUSED, H-1010-098

---
B6
ELEFUSE1010

Pride Mobility

ELECTRONIC,FUSE,7.5 AMP,ATO (AUTOMOTIVE TYPE),(LITTELFUSE: 25707.5) (ELEFUSE1010)

$19.79 $20.00
View details
B7
SCRPPH1000

SCREW, PPH, 6-32 X 3/8", G5

---
B8
HARUSHD2103

ELECTRONIC, HARNESS, 50 AMP, JAZZY, CIRCUIT BREAKER WITH WIRES, BOOTS, H-1200-089

---
B9
PLSTIE1004
View details
B10
ELESRLF1002

ELECTRONIC, STRAIN RELIEF BUSHING, 0.750" L, BLACK, 18AWG, (HEYCO: 1237-SR 7P-2)

---
B11
DWR1361H038
View details
C1
ELEASMB5044

CONTROLLER, REMOTE PLUS, ASSY, 80 AMP, JAZZY SERIES PROGRAM

---
D1
ELEASMB5045

CONTROLLER, REMOTE PLUS(PROFILES), ASSY, 80 AMP, JAZZY SERIES PROGRAM

---
