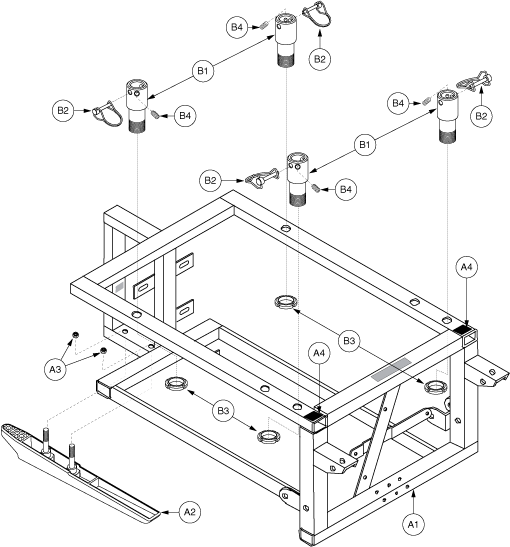

Jazzy 1170 XL - Main Frame - Jazzy 1170xl


Pos.
MPN
Details
A1 - A4
FRMASMB1530

FRAME, ASSY, MAIN, JAZZY1170

---
A1
DWR1170D078

FRAME, MAIN, JAZZY1170, DIMPLED

---
A2
DWG1200D420

BUMPER, SKID BAR, JAZZY REAR, MOLDED, D-1200-042

---
A3
NUTNYLK1026

Pride Mobility

NUT, LOCK, .3125-18, ASME B18.16.6, GR NE2, BZ, PVTP (NUTNYLK1026)

$3.29 $3.34
View details
A4
VELLTCH1000

REUSABLE FASTENER, LOOP, 1", W/ADHESIVE BACK

---
B1 - B4
FRMASMB6341

SEAT MOUNT CONNECTOR, ASSY, W/SET SCREW

---
B1
DWR1500C036

SEAT MOUNT CONNECTOR, MODIFIED, RQ, C-1500-036

---
B2
DWR1054B026

Monster Scooter Parts

Seat Tower Safety Pin for Jazzy, Jet and Quantum Power Chairs (DWR1054B026)

$13.99
View details
B3
DWR1000B432

NUT, BLACK, ZINC, M25-1.5, JAM, CUSTOM, B-1000-432

---
B4
SCRSETS1013

Pride Mobility

SCREW, SET, CUP POINT, .250-20 X .25, ASTM F912, BO (SCRSETS1013)

$3.29
View details
