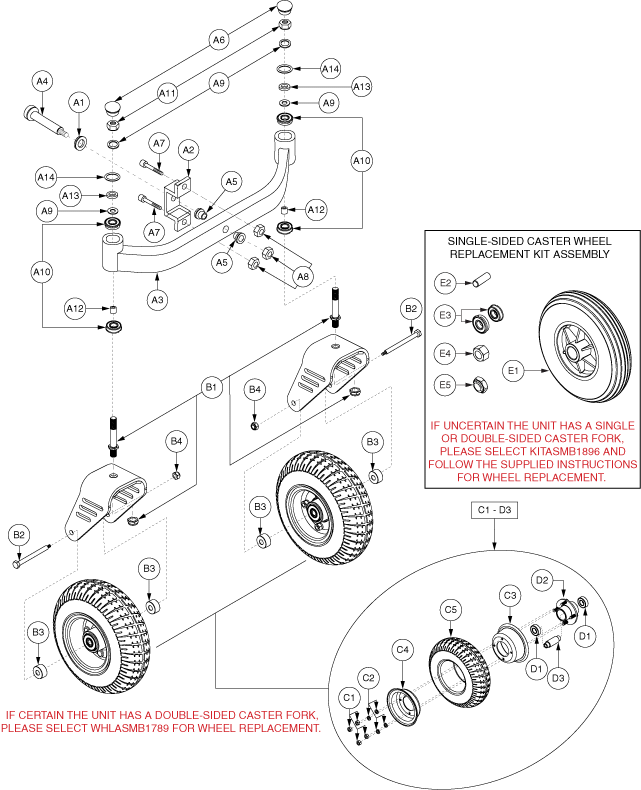

Jazzy 1170 XL - Articulating Beam / Casters - Flat Free

ARTICULATING BEAM, MAIN, CURVED, 17.625"L, W/FORKS & 9" FLAT FREE WHEELS

ARTICULATING BEAM, ASSY, CURVED, 17.625"LG

WASHER, FLAT, BLACK ZINC, 1/2"ID X 1"OD X 1/16"T

MOUNTING BRACKET, SUPPORT, ARTICULATING BEAM U SHAPED

ARTICULATING BEAM, CURVED, 17.625"LG, D-1170-068

Monster Scooter Parts

1/2"x3.25" Shoulder Bolt for the Jazzy 1170 XL Plus (BLTASHL1030)

BUSHING, FLANGE, 0.50"ID X 0.75"OD X 0.75"TH

Monster Scooter Parts

End Cap for the Quantum Q610 (PROECAP1029)

Pride Mobility

SCRALNH1004 - Zinc Socket Head Cap Screw, 3/8-16 x 2.00", Grade 5

Monster Scooter Parts

1/2"x1-1/16" Black Flat Washer (WASSTND1034, WASSTND1134)

BEARING,RADIAL BALL,0.50" ID X 1.125" OD X 0.3125" TH,METAL SHIELD,R8ZZ,A-1010-014

Pride Mobility

NUTNYLK1010 - 1/2"-20 Hex Lock Nut

SPACER, 0.52"ID X 0.68"OD X 0.937"TH, BEARING THRUST

ARBOR SHIM, STEEL, 0.500"ID X 0.750"OD X 0.093"TH

O-RING, NEOPRENE, 10MM SHAFT DIA X 19.5MM OD X 1.78MM TH, B-1005-120

FORK, CASTER, DOUBLE SIDED, 9" FLAT FREE WHEEL, RIGHT

FORK, CASTER, DOUBLE SIDED, 9" FLAT FREE WHEEL, LEFT

CASTER, ASSY, FORK, STEEL, DOUBLE ASSEMBLY, C-1170-073

Pride Mobility

SCRHHCS1273 - Black Zinc Hex Head Cap Screw, 3/8-16 x 4.50", Grade 10.9 for Quantum R4000 & R4400 Power Chairs

Pride Mobility

DWR1500A021 - Steel Spacer, 0.377" ID x 1.00" OD x 0.52" TH for Quantum R4000 & R4400 Power Chairs

Monster Scooter Parts

Swing Arm Nut for the Jazzy 1170 XL Plus (NUTNYLK1006)

WHEEL, FLAT FREE, 9" CASTER, BLACK RIM/GRAY TIRE

NUT, 5/16-24

WASHER, LOCK, ZINC, 0.3125" ID X 0.50" OD X 0.0937" TH

RIM, INNER, REAR, BLACK, 3.95"DIAM. X 1.65 DEPTH

WHEEL, RIM, BLACK, 5", FRONT, EXTERIOR W/VALVE STEM HOLE, XL

Monster Scooter Parts

2.80/2.50-4 (9"x3") Foam Filled Tire with Durotrap Tread for the Pride Revo (SC60/SC63/SC64), Pride Sundancer (SC2000/SC202), Jazzy 1170 XL, Jazzy 1170 XL Plus, and Quantum Q1650 (TIRSOLI1034)

Pride Mobility

WHLASMB1787 - Hub Wheel Assembly, 2.75" BC, with Bearings and Spacer for Quantum R4000 & R4400 Power Chairs

Monster Scooter Parts

499502H Double Sealed Bearing with Snap Ring for Pride Mobility Scooters, Jazzy, and Quantum Power Chairs (BRGBTRA1007)

WHEEL, HUB, 2.75''BC, W/STUDS, C-1000-357

SPACER, STEEL, 9" CASTER BEARING, .377" ID X .623" DIA

WHEEL, ASSY, CASTER, RETRO FIT KIT

Pride Mobility

WHLASMB1388 - 8"x2" Heavy Duty Rear Caster Wheel Assembly for Jazzy & Quantum Power Chairs

SPACER, BLACK ZINC, STEEL, .325" ID X .63" OD X 1.70" TH

BEARING,BALL,8MM ID X 22MM OD X 7MM TH,W/ EXTENDED INNER RACE 9MM,(608ZZ-DOUBLE SHIELD)

Monster Scooter Parts

NUTNYLK1011 - M8-1.25x7.65 Black Lock Nut

Monster Scooter Parts

M8-1.25x6.5 Black Lock Nut (NUTNJAM1020)

INSTALLATION INSTRUCTIONS, CASTER WHEEL RETRO FIT KIT
