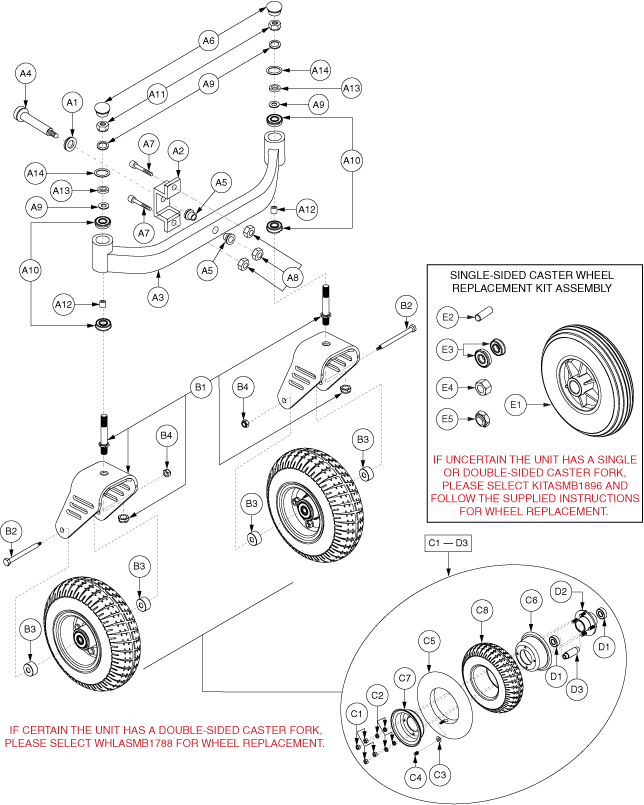

Jazzy 1170 XL - Articulating Beam / Casters - Pnuematic

ARTICULATING BEAM, 17.625"LG, FORK & 9" PNEUMATIC WHEELS

ARTICULATING BEAM, ASSY, CURVED, 17.625"LG

WASHER, FLAT, BLACK ZINC, 1/2"ID X 1"OD X 1/16"T

MOUNTING BRACKET, SUPPORT, ARTICULATING BEAM U SHAPED

ARTICULATING BEAM, CURVED, 17.625"LG, D-1170-068

Monster Scooter Parts

1/2"x3.25" Shoulder Bolt for the Jazzy 1170 XL Plus (BLTASHL1030)

BUSHING, FLANGE, 0.50"ID X 0.75"OD X 0.75"TH

Monster Scooter Parts

End Cap for the Quantum Q610 (PROECAP1029)

Pride Mobility

SCREW, SHCS,ZINC,3/8-16 X 2.00",GRADE 5 (SCRALNH1004)

Monster Scooter Parts

1/2"x1-1/16" Black Flat Washer (WASSTND1034, WASSTND1134)

BEARING,RADIAL BALL,0.50" ID X 1.125" OD X 0.3125" TH,METAL SHIELD,R8ZZ,A-1010-014

Pride Mobility

NUT, HEX, LOCK, .50-20, ASME B18.16.6, BZ, PVTP (NUTNYLK1010)

SPACER, 0.52"ID X 0.68"OD X 0.937"TH, BEARING THRUST

ARBOR SHIM, STEEL, 0.500"ID X 0.750"OD X 0.093"TH

O-RING, NEOPRENE, 10MM SHAFT DIA X 19.5MM OD X 1.78MM TH, B-1005-120

FORK, ASSY, CASTER, DOUBLE SIDED, 9" PNEUMATIC WHEEL, RIGHT

FORK, ASSY, CASTER, DOUBLE SIDED, 9" PNEUMATIC WHEEL, LEFT

CASTER, ASSY, FORK, STEEL, DOUBLE ASSEMBLY, C-1170-073

Pride Mobility

SCREW,HHCS,BLACK ZINC,3/8-16 X 4.50",GRADE 10.9 (SCRHHCS1273)

Pride Mobility

SPACER,STEEL,0.377"ID X 1.00"OD X 0.52"TH,A-1500-021 (DWR1500A021)

Monster Scooter Parts

Swing Arm Nut for the Jazzy 1170 XL Plus (NUTNYLK1006)

WHEEL, PNEUMATIC, 9" CASTER, BLACK RIM/GRAY TIRE

NUT, 5/16-24

WASHER, LOCK, ZINC, 0.3125" ID X 0.50" OD X 0.0937" TH

SLIP COVER, VALVE STEM, 35PSI, 2.4 BAR, MAX RATING, A-7700-010

Pride Mobility

CAP,BLACK,VALVE (PLSINDV1003)

Pride Mobility

TUBE,2.80/2.50-4,ITM2504-11 W/VALVE CAP,(GALLOP: Z421785) (TUBSTND1011)

RIM, INNER, REAR, BLACK, 3.95"DIAM. X 1.65 DEPTH

WHEEL, RIM, BLACK, 5", FRONT, EXTERIOR W/VALVE STEM HOLE, XL

TIRE, PNEUMATIC, GRAY, 9" OD, 3" W, C-179N-1 AQUATREAD

Pride Mobility

WHEEL,ASSY,HUB,2.75''BC,W/BEARINGS & SPACER,B-1203-005 (WHLASMB1787)

Monster Scooter Parts

499502H Double Sealed Bearing with Snap Ring for Pride Mobility Scooters, Jazzy, and Quantum Power Chairs (BRGBTRA1007)

WHEEL, HUB, 2.75''BC, W/STUDS, C-1000-357

SPACER, STEEL, 9" CASTER BEARING, .377" ID X .623" DIA

WHEEL, ASSY, CASTER, RETRO FIT KIT

Pride Mobility

8"x2" Heavy Duty Rear Caster Wheel Assembly for Jazzy Power Chairs

SPACER, BLACK ZINC, STEEL, .325" ID X .63" OD X 1.70" TH

BEARING,BALL,8MM ID X 22MM OD X 7MM TH,W/ EXTENDED INNER RACE 9MM,(608ZZ-DOUBLE SHIELD)

Monster Scooter Parts

M8-1.25x7.65 Black Lock Nut (NUTNYLK1011)

Monster Scooter Parts

M8-1.25x6.5 Black Lock Nut (NUTNJAM1020)

INSTALLATION INSTRUCTIONS, CASTER WHEEL RETRO FIT KIT
