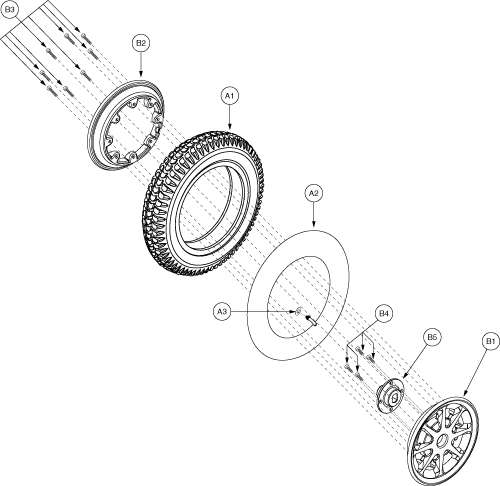

Jazzy 1170 XL - Drive Wheels - Pneumatic


Pos.
MPN
Details
A1 - B5
WHLASMB1447

WHEEL, ASSY, PNEUMATIC DRIVE WHEEL, 4.00 X 8", HONEYCOMB, TRI-SPOKE, 3-PIECE RIM W/ FORGED STEEL DOUBLE "D" HUB, E-1170-007

---
A1
TIRPNEU1017

TIRE, PNEUMATIC, 400-8X16'', C-168-7

---
A2
TUBSTND1017

TUBE, 3.50/4.00-8, ANGLED VALVE W/CAP

---
A3
DWR7700A010

SLIP COVER, VALVE STEM, 35PSI, 2.4 BAR, MAX RATING, A-7700-010

---
B1 - B5
WHLASMB1490

WHEEL, ASSY, RIM, 3.00 X 8", 3-PIECE RIM W/ FORGED STEEL DOUBLE "D" HUB

---
B1
DWR1200E221

WHEEL, RIM, ALUMINUM, 3.00-8", OUTER, 8" HONEYCOMB, W/HUB MOUNTING HOLES, E-1200-221

---
B2
WHLRIMS1051

WHEEL, RIM, ALUMINUM MAG, JAZZY1120/1170

---
B3
SCRALNH1033

SCREW, SHCS, BLACK ZINC, 1/4-20 X 0.75", W/NYLON PATCH

---
B4
SCRSHCS1088

SCREW, SHCS, BLACK OXIDE, 5/16-24 X1.00", W/OIL RESISTANT LOCTITE

---
B5
DWR1200D235

WHEEL, HUB, FORGED STEEL, 2.756"BC X 3.386"DIA X 1.76"TH, DOUBLE D, HONEYCOMB, D-1200-235

---
