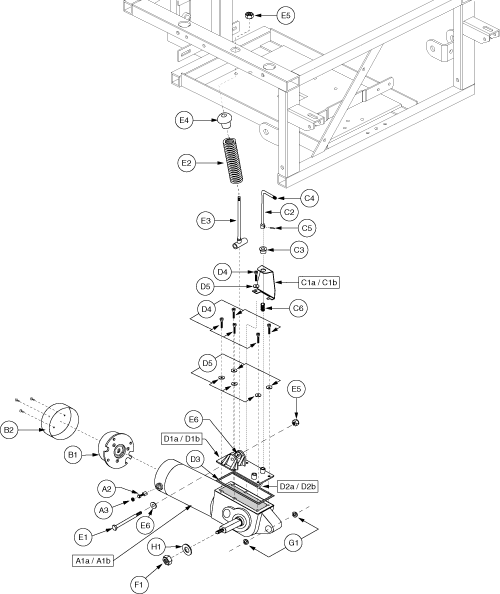

Jazzy 1170 XL - Motors / Freewheel - High Speed


Pos.
MPN
Details
A1 - H1
DRVASMB1380

MOTOR, ASSY, DRIVE, E675XL, EXTERNAL THREAD, 85, 5.50"LG STRUT, PAIR, JAZZY1170

---
A1a - H1
DRVASMB1386

MOTOR, ASSY, DRIVE, E675XL, EXTERNAL THREAD, 85, 5.50"LG STRUT, RIGHT

---
A1b - H1
DRVASMB1385

MOTOR, ASSY, DRIVE, E675XL, EXTERNAL THREAD, 85, 5.50"LG STRUT, LEFT

---
A1a - D5
DRVMOTR1115

MOTOR, E675, 85, 5.44"LG HANDLE, RIGHT, C-1210-008, (ELECTROCRAFT: 675-050-957)

---
A1b - D5
DRVMOTR1114

MOTOR, E675, 85, 5.44"LG HANDLE, LEFT, C-1210-007, (ELECTROCRAFT: 675-051-958)

---
A2
DRVBRSH1000

MOTOR, BRUSH, JAZZY, (RELIANCE: 0002-6957)

---
A3
PLSINDV1059

MOTOR, BRUSH CAP, (RELIANCE: 0003-0035)

---
B1 - B2
DRVASMB1706

MOTOR, ASSY, BRAKE, WARNER, E675/679

---
B1
DRV1045

BRAKE, ELECTRIC SOLENOID, WARNER, (WR198A218P1/0002-9395)

---
B2
PLSINDV1111

CAP, SABLE, MOTOR, BRAKE, E660/E675, (RELIANCE: 03-006839)

---
C1a - C6
FRMASMB2599

FREEWHEEL, ASSY, RELEASE LEVER, 85, 5.44"LG HANDLE, E660, RIGHT

---
C1b - C6
FRMASMB2598

FREEWHEEL, ASSY, RELEASE LEVER, 85, 5.44"LG HANDLE, E660, LEFT

---
C1a
DWR1200C138

FREEWHEEL, MOTOR RELEASE BRACKET, E660/E675, RIGHT, C-1200-138

---
C1b
DWR1200C139

FREEWHEEL, MOTOR RELEASE BRACKET, E660/E675, LEFT, C-1200-139

---
C2
DWR1000C109

FREEWHEEL, RELEASE HANDLE, 85, 5.44"L, RELIANCE, C-1000-109

---
C3
BSHFLNG1024

BUSHING, FLANGE, PLASTIC, 0.50"ID X 0.5625"OD X 0.50"TH X 0.1875"FTH

---
C4
INDPART1703

CAP, RUBBER, FREEWHEEL RELEASE LEVER

---
C5
PINSPRG1001

PIN, SPRING, BLACK ZINC, 0.125" DIA X 0.75" L, SLOTTED

---
C6
SPGRAW1014

SPRING, RAW, FREEWHEEL RELEASE LEVER, RELIANCE

---
D1a - D5
FRMASMB2527

MOTOR, ASSY, GEARBOX COVER, METAL HOUSING, RIGHT, E660/E675

---
D1b - D5
FRMASMB2526

MOTOR, ASSY, GEARBOX COVER, METAL HOUSING, LEFT, E660/E675

---
D1a
INDPART2090

COVER, GEARBOX, E660/E675 METAL HOUSING, RIGHT, (RELIANCE: 1170038044)

---
D1b
INDPART2089

COVER, GEARBOX, E660/E675 METAL HOUSING, LEFT, (RELIANCE: 1170038043)

---
D2a
INDPART1949

MOTOR, PADDLE, W/PIN, RIGHT, (RELIANCE: 1150159006)

---
D2b
INDPART1948

MOTOR, PADDLE, WITH PIN, LEFT, (RELIANCE: 1150159005)

---
D3
GASCORK1001

GASKET, EMBEDDED CORK, (RELIANCE: 1161101016)

---
D4
SCRALNH1011

Pride Mobility

SCREW,SHCS,ZINC,M6-1.0 X 22MM (SCRALNH1011)

$3.29
View details
D5
WASLOCK1003

Monster Scooter Parts

M6 Steel Lock Washer (WASLOCK1003)

$0.42 $0.79
View details
E1 - E6
FRMASMB1722

MOTOR, ASSY, STRUT, 5.500"LG

---
E1
SCRHHCS1051

SCREW, HHCS, BLACK ZINC, 5/16-18 X 3.25", GRADE 5

---
E2
SPGRAW1007

SPRING, PURPLE, 2.50" FL

---
E3
IND1216B000

MOTOR, STRUT WELDMENT, 5.500"LENGTH, B-1200-016

---
E4
DWG1200A230

BALL PIVOT, SPRING ROD, A-1200-023

---
E5
NUTNYLK1026

Pride Mobility

NUT, LOCK, .3125-18, ASME B18.16.6, GR NE2, BZ, PVTP (NUTNYLK1026)

$3.29 $3.34
View details
E6
WASWAVY1008
View details
F1
NUTNJAM1018
View details
G1
BRGSLV1003

BEARING,RADIAL BALL,0.50" ID X 1.125" OD X 0.3125" TH,METAL SHIELD,R8ZZ,A-1010-014

---
H1
WASWAVY1009

WASHER, BELLEVILLE, STAINLESS STEEL, 0.515''ID X 1.00''OD X 0.073''TH

---
