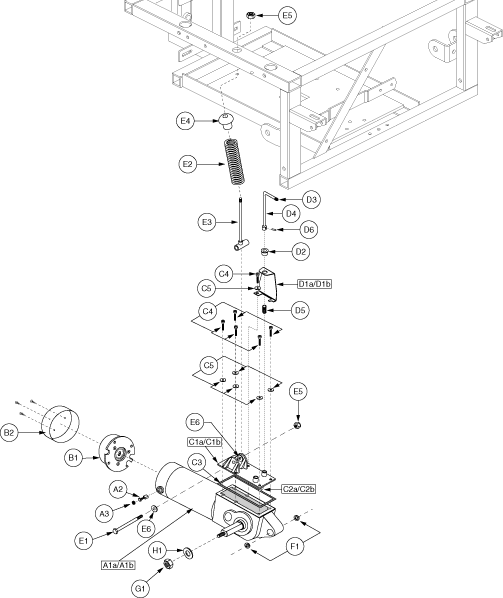

MOTOR, ASSY, DRIVE, E675, 85, 5.44"LG HANDLE, HIGH TORQUE OPTION, PAIR, JAZZY1170
MOTOR, ASSY, DRIVE, E675, HIGH TORQUE, 85 5.44"LG HANDLE, RIGHT, JAZZY1170
MOTOR, ASSY, DRIVE, E675, HIGH TORQUE, 85 5.44"LG HANDLE, LEFT, JAZZY1170
Monster Scooter Parts
Right Motor Assembly for the Jazzy 1470 (DRVMOTR1119)
Monster Scooter Parts
Left Drive Motor for the Jazzy 1170 XL (DRVMOTR1118)
MOTOR, BRUSH, JAZZY, (RELIANCE: 0002-6957)
MOTOR, BRUSH CAP, (RELIANCE: 0003-0035)
MOTOR, ASSY, BRAKE, WARNER, E675/679
BRAKE, ELECTRIC SOLENOID, WARNER, (WR198A218P1/0002-9395)
CAP, SABLE, MOTOR, BRAKE, E660/E675, (RELIANCE: 03-006839)
MOTOR, ASSY, GEARBOX COVER, METAL HOUSING, RIGHT, E660/E675
MOTOR, ASSY, GEARBOX COVER, METAL HOUSING, LEFT, E660/E675
COVER, GEARBOX, E660/E675 METAL HOUSING, RIGHT, (RELIANCE: 1170038044)
COVER, GEARBOX, E660/E675 METAL HOUSING, LEFT, (RELIANCE: 1170038043)
MOTOR, PADDLE, W/PIN, RIGHT, (RELIANCE: 1150159006)
MOTOR, PADDLE, WITH PIN, LEFT, (RELIANCE: 1150159005)
GASKET, EMBEDDED CORK, (RELIANCE: 1161101016)
FREEWHEEL, ASSY, RELEASE LEVER, 85, 5.44"LG HANDLE, E660, RIGHT
FREEWHEEL, ASSY, RELEASE LEVER, 85, 5.44"LG HANDLE, E660, LEFT
FREEWHEEL, MOTOR RELEASE BRACKET, E660/E675, RIGHT, C-1200-138
FREEWHEEL, MOTOR RELEASE BRACKET, E660/E675, LEFT, C-1200-139
BUSHING, FLANGE, PLASTIC, 0.50"ID X 0.5625"OD X 0.50"TH X 0.1875"FTH
CAP, RUBBER, FREEWHEEL RELEASE LEVER
FREEWHEEL, RELEASE HANDLE, 85, 5.44"L, RELIANCE, C-1000-109
SPRING, RAW, FREEWHEEL RELEASE LEVER, RELIANCE
PIN, SPRING, BLACK ZINC, 0.125" DIA X 0.75" L, SLOTTED
MOTOR, ASSY, STRUT, 5.500"LG
SCREW, HHCS, BLACK ZINC, 5/16-18 X 3.25", GRADE 5
SPRING, PURPLE, 2.50" FL
MOTOR, STRUT WELDMENT, 5.500"LENGTH, B-1200-016
BALL PIVOT, SPRING ROD, A-1200-023
Pride Mobility
NUT, LOCK, .3125-18, ASME B18.16.6, GR NE2, BZ, PVTP (NUTNYLK1026)
Pride Mobility
WASHER,DISC SPRING ,0.317 ID X 0.625 OD X .022 THK, SST (SEE DRAWING) (WASWAVY1008)
BEARING,RADIAL BALL,0.50" ID X 1.125" OD X 0.3125" TH,METAL SHIELD,R8ZZ,A-1010-014
Monster Scooter Parts
Articulating Rear Beam Assembly Nut for the Jet 3 and Jazzy Select 6 (NUTNJAM1018)
WASHER, BELLEVILLE, STAINLESS STEEL, 0.515''ID X 1.00''OD X 0.073''TH
