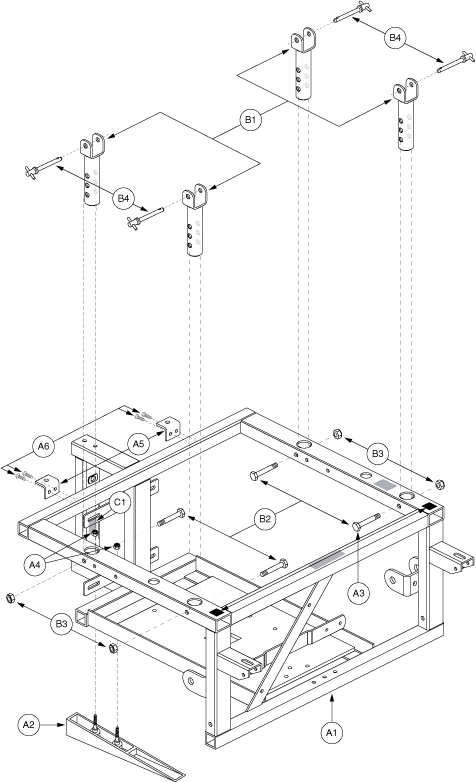

FRAME, ASSY, MAIN, JAZZY1170 XL PLUS
FRAME, FRAME WELDMENT, MAIN, JAZZY1170 XL PLUS, E-1170-006
BUMPER, SKID BAR, JAZZY REAR, MOLDED, D-1200-042
REUSABLE FASTENER, LOOP, 1", W/ADHESIVE BACK
ELECTRONIC, UTILITY TRAY, MOUNTING BRACKET, B-1170-003
SCREW, PPH-THREAD CUTTING, BLACK ZINC, 10-32 X 0.50", TYPE F
SEAT TOWER, ASSY, STEEL TUBE, 3-HOLE
SEAT TOWER, WELDMENT, QUANTUM BLAST, B-1500-004
SCREW, HHCS, BLACK ZINC, 5/16-18 X 2.00", GRADE 8
Pride Mobility
NUT, LOCK, .3125-18, ASME B18.16.6, GR NE2, BZ, PVTP (NUTNYLK1026)
QUICK RELEASE PIN, SHOULDER STYLE-SELF LOCKING, 5/16" X 1.80" GRIP LENGTH, W/RUBBER DIPPED "T" HANDLE, A-1000-235
DECAL, SERIAL NUMBER, 4" X 6", BARCODE, W/PRIDE LOGO
