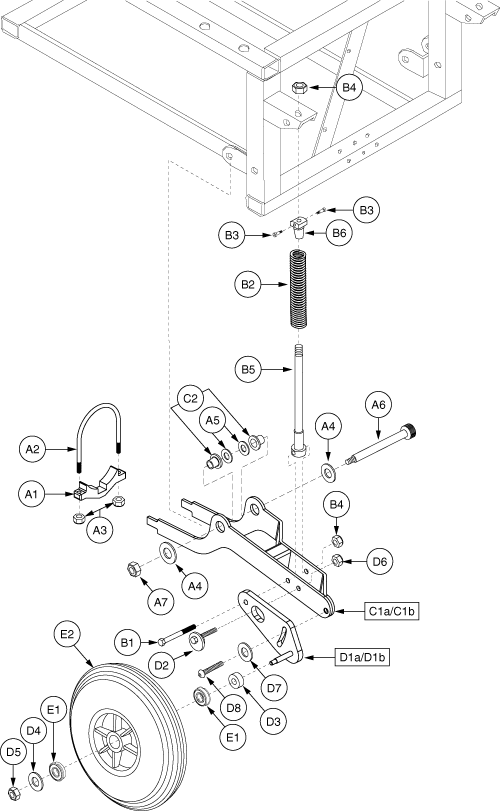

Jazzy 1170 XL - Anti -Tip

ANTI-TIP, ASSY, ATS CAM ADJUSTABLE, 3/8'' SHAFT, BEIGE SPRING, RIGHT

ANTI-TIP, ASSY, ATS CAM ADJUSTABLE, 3/8'' SHAFT, BEIGE SPRING, LEFT

CLAMP, U-BOLT, CURB CLIMBER, C-1200-017

BOLT, "U", BRIGHT ZINC, 1/4-20 X 3.50" W X 4.125" H X 0.75" THREAD LENGTH, B-1200-005

Pride Mobility

NUTNYLK1014 - Black Zinc Lock Nut, 0.250-20, ASME B18.16.6, GR NE2, PVTP

Pride Mobility

WASINDV1000 - Zinc Washer, 0.50" ID x 1.00" OD x 0.125" TH

Pride Mobility

WASNYLN1018 - Nylon Washer, 0.500" ID x 1.125" OD x 0.0625" TH

Pride Mobility

BLTASHL1005 - Shoulder Bolt, 1/2" x 3.50"

Monster Scooter Parts

Swing Arm Nut for the Jazzy 1170 XL Plus (NUTNYLK1006)

STRUT, ASSY, 7.375"LG, 5/16"SHAFT, 5.00" BEIGE SPRING

SCREW,HHCS,BLACK ZINC,5/16-18 X 2.50",GRADE 5

SPRING, BEIGE, 5.00" FL

BOLT, SHOULDER, 1/4" X 1/4" LG, 3/8" THREAD LENGTH

SUSPENSION, ANTI-TIP STRUT WELDMENT, JAZZY 1120, B-1200-017

SUSPENSION, PIVOT, SPRING, A-1200-035

ANTI-TIP, ASSY, BRACKET, JAZZY1170/1420/1470, ATS, RIGHT, W/FORK/WHEEL/CAM

ANTI-TIP, ASSY, BRACKET, JAZZY1170/1420/1470, ATS, LEFT, W/FORK/WHEEL/CAM

ANTI-TIP, ASSY, BRACKET, CAM ADJUSTABLE, RIGHT

ANTI-TIP, ASSY, BRACKET, ATS, CAM ADJUSTABLE, LEFT

ANTI-TIP, ATS MOTOR, CAM ADJUSTABLE, RIGHT, D-1170-082

ANTI-TIP, ATS MOTOR, CAM ADJUSTABLE, LEFT, D-1170-083

BUSHING, FLANGE, BRONZE, 0.50" X 0.75" X 0.375"

CAM ADJ PLATE, ANTI-TIP BRACKET, .3750" SHAFT, RIGHT

CAM ADJ PLATE, ASSY, ANTI-TIP BRACKET, .3750" SHAFT, LEFT

ANTI-TIP BRACKET WELDMENT, SLOTTED, W/3/8" BOLT, RIGHT

ANTI-TIP BRACKET WELDMENT, SLOTTED, W/3/8" BOLT, LEFT

ADJUSTABLE CAM WELDMENT, A-1170-015

SPACER, BLACK, NYLON, 0.375ID X 1.38OD X 0.313TH, A-1170-018

Pride Mobility

WASSTND1002 - Black Zinc Type A Flat Washer, 0.312 N x 0.688 OD x 0.065 Thick, ASTM F844

Pride Mobility

NUTNYLK1026 - Black Zinc Lock Nut, 0.3125-18, ASME B18.16.6, GR NE2, PVTP

NUT, NYLOCK, BLACK ZINC, 5/16-24

WASHER, EXTERNAL TOOTH, 5/16" ID, LOCK

SCREW, BHSCS, BLACK ZINC, 5/16-24 X 1.00"

Monster Scooter Parts

8"x2" (200x50) Front Anti-tip Wheel Assembly for Jazzy & Quantum Power Chairs (WHLASMB1334)

BEARING, SLEEVE, 0.375"ID X 0.875"OD

WHEEL, ANTI-TIP, 200 X 50, FOAM FILLED
