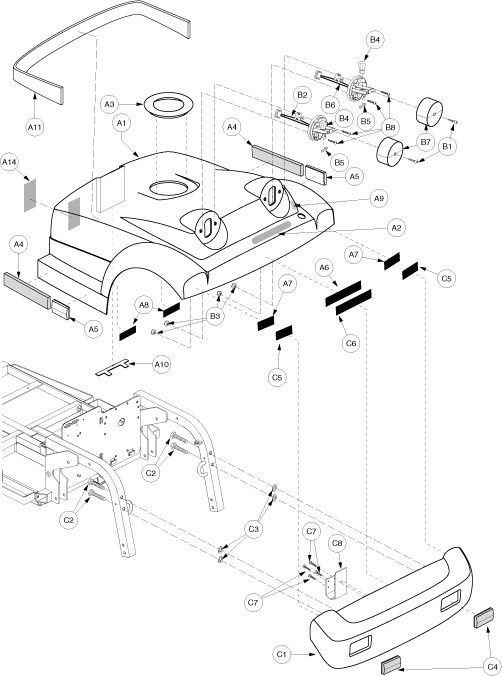

Pride Victory XL (SC260) - Shroud Assembly - Rear - S3924502075c10 - Subsequent

ASSEMBLY, REAR SHROUD, LUNA , VIPER BLUE

PAINTEDSHROUD, REAR BODY, VICTORY XL3 2001 VIPER BLUE

DECAL, REAR, LUNA

MAT, RUBBER, SCUFF GUARD, BLACK, SEAT POST, FLANGE, C-9500-013

TRIM, BLACK, 6"

FASTENER, 25MM X 70MM, REUSABLE, HOOK

FASTENER, 25MM X 60MM, REUSABLE, HOOK

FASTENER, 25MM X 35MM, REUSABLE, LOOP

DECAL, TNO, TWO POSITION FREEWHEEL

MAT, SCUFF GUARD, CIRCUIT BREAKER, SC260, VICTORY XL3

MAT, SCUFF GUARD, BLACK, 37.50"L

Pride Mobility

TIE WRAP,BLACK,6" (PLSTIE1002)

TIE WRAP, BLACK, 3/4" X 3/4", CANAMOUNT, HOLDER

DECAL, TNO, VICTORY, V4, FRONT, ROUND, L-1234-392

LIGHT, ASSY, REAR, YELLOW/RED, HELLA, XL SERIES

SCREW, PPH, ZINC, M3.5 X .6T X 15MM

ELECTRONIC, HARNESS, LEFT REAR LIGHT, SC260

NUT, SERRATED FLANGE, M5-.8

BULB, 24V/21W, (#78187)

LIGHT BULB, 5W, 24V, (HELLA #78204)

ELECTRONIC, HARNESS, RIGHT REAR LIGHT, SC260

LIGHT, TAILTURN LIGHT COMBO

SCREW, PTH, ZINC, M5 X .8T X 15MM

ASSY, BUMPER, REAR, LUNA, W/LICENSE PLATE BRACKET

BUMPER, REAR, VICTORY XL3, E-9550-016

SCREW, HHCS, ZINC, M8-1.25 X 45MM

WASHER,LOCK,ZINC,M8 X 15MM OD X 2MM TH

REFLECTOR, RED, 2.75" X 1.23", SELF ADHESIVE, HELLA, E MARKED

FASTENER, 25MM X 60MM, REUSABLE, LOOP

FASTENER, 25MM X 100MM, REUSABLE, LOOP

SCREW, INDENTED HEX WASHER HEAD, ZINC, M6 X 30MM, THREAD CUTTING, TYPE 25 POINT, ZINC

BRACKET, LICENSE PLATE, VICTORY XL-3, C-9550-037
