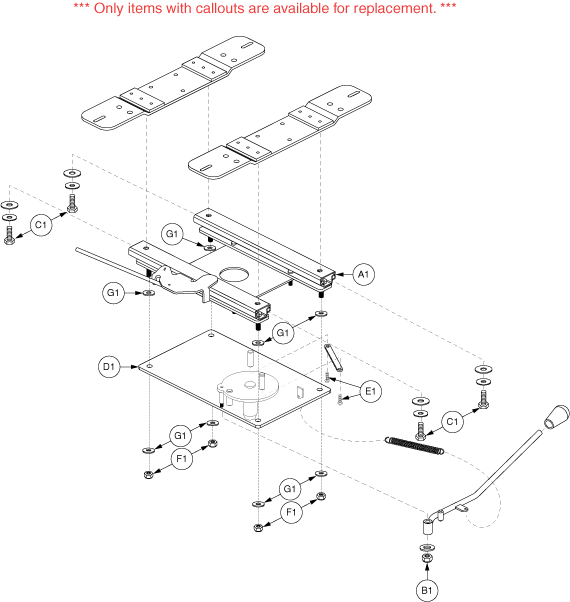

Pride Victory XL (SC260) - Seat Frame


Pos.
MPN
Details
A1
FRMASMB2691

SLIDE MECHANISM, ASSY, BLACK UNIVERSAL HOLE PATTERN, VISCOUNT

---
B1
NUTNYLK1045

NUT, NYLOCK, ZINC, M6-1.0

---
C1
SCRHHCS1015

SCREW, HHCS, M6-1.0 X 20MM, G2

---
D1
DWR9550E020

SEAT WELDMENT, PLATFORM, VICTORY XL3, E-9550-020

---
E1
SCRASBH1046

SCREW, BHSCS, M5-.8 X 12MM

---
F1
NUTNYLK1012

NUT, NYLOCK, BLACK ZINC, M8-1.25

---
G1
WASSTND1062

WASHER, FLAT, ZINC, M8 X 22MM OD X 2MM TH

---
