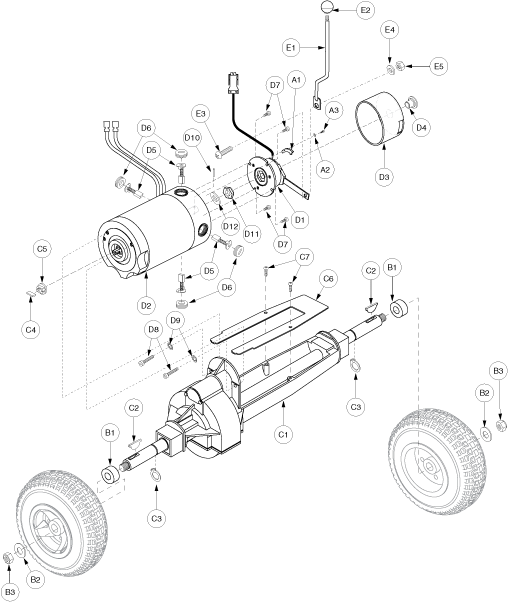

ASSY, MAIN, TRANSAXLE/MOTOR/BRAKE, ASI-MK29-18.0, 2339-2100(-3)
AUXILLARY BRAKE STOP, SC260
WASHER, LOCK, M3, STAINLESS
ASSY, TRANSAXLE/MOTOR/BRAKE, ASI-MK29-18.0, 2339-2100(-3)
SPACER, STEEL, 19.1MM ID X 32MM OD X 12.7MM TH, ZINC
NUT, NYLOCK, M12, 1.5T
ASSY, TRANSAXLE, ASI LONG SHAFT, 18:1 GEAR RATIO
TRANSAXLE ONLY, ASI LONG SHAFT, 18:1 GEAR RATIO
Monster Scooter Parts
Transaxle Woodruff Key for Pride and Go-Go Scooters (KEYSTL1003)
KEY, MOTOR COUPLER, 3/8" X 41/64" X 3/64", (110636YM)
MOTOR COUPLER, NYLON, (229007)
WELDMENT, TRANSAXLE SPLASH GUARD, ASI LONG SHAFT
SCREW, PPH, BLACK, M4.5 X. 75 X 12MM, THREAD CUTTING
ASSY, MOTOR/BRAKE, ASI MK29, 2339-2100(-3)
ASSY, BRAKE, WARNER, 6NM (10481)
MOTOR, ASI MK29, 2339-2100(-3)
BRAKE CAP, PLASTIC, VERSION 2, VICTORY XL3
PLUNGER, BRAKE CAP, VICTORY XL3
MOTOR, BRUSH, ASI, MK29
MOTOR, BRUSH, CAP, CHIPPEWA
SCREW, SHCS, M4 X .7T X 10MM, ZINC PLATE W/NYLON INSERT (ASI#10479)
Pride Mobility
SCREW, SOCKET HEAD, M6X1.0 X 20, ISO 4762, CL 12.9, BZ (SCRSHCS1048)
WASHER, SAE, 1/4"ID, INTERNAL TOOTH
PIN, DOWEL, 1/8" X 0.750", STAINLESS STEEL
BRAKE NUT, WARNER BRAKE, 6NM
NUT, PUSH, 10MM SHAFT DIA X 19.5MM OD X 1.78MM TH, BLACK
ASSY, FREEWHEEL, VICTORY XL 3 WHEEL
FREEWHEEL LEVER, VICTORY XL-3
KNOB, BLACK, M6 X 1.0T, THREADED, SPHERICAL
SCREW, PPH, BLACK ZINC, M5-.8 X 10MM
WASHER, NYLON, 6MM ID X 13MM OD X 1MM TH
NUT, PANEL INSERT, M5-.8, ZINC (131509)
