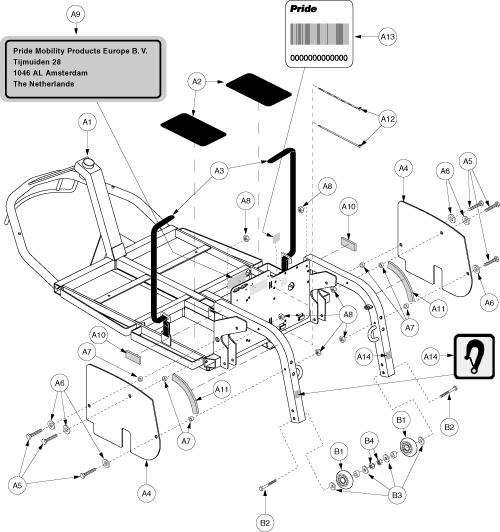

ASSY, MAIN FRAME, VICTORY XL 3, 2001
FRAME, WELDMENT, ONE PIECE, VICTORY XL 2000, 3 WHEEL
MAT, BATTERY, BLACK, 10 1/2" X 6 1/2", SCUFF MATERIAL
STRAP, 1.00" X 37.00, BATTERY, CINCHING, WITH CLIPS
GUARD, SPLASH, PLASTIC, REAR, VICTORY XL3, D-9550-021
SCREW, HHCS, ZINC, M6 X 1 X 50MM
WASHER, FLAT, M6, STANDARD
SPACER, NYLON, 8.2MM ID X 19MM OD X 6.4MM TH
THIN NUT, M6 X 1.0, NYLOCK
DECAL, MANUFACTURER, LUNA
FOAM, .25MM X 55MM, W/ADHESIVE
FOAM, .25MM X 125MM, W/ADHESIVE
DECAL, SERIAL NUMBER, LUNA
DECAL, TIE DOWN INSTRUCTION, VICTORY XL 3
WHEEL, ASSY, ANTI-TIP, VICTORY XL3
Monster Scooter Parts
SCREW, HHCS, ZINC, M8 -1.25 X 70MM
WASHER, FLAT, ZINC, M8 X 17MM OD X 1MM TH
NUT, NYLOCK, BLACK ZINC, M8-1.25
