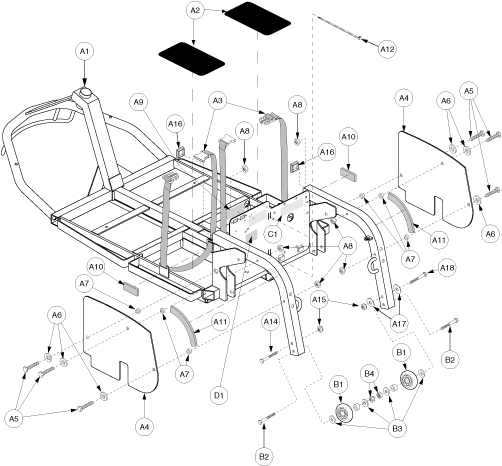

Pride Victory XL (SC260) - Frame Assemblies - Main Frame - V01060385 - S3931802002c10

FRAME, ASSY, LUNA, 3 WHEEL

FRAME, WELDMENT, ONE PIECE, VICTORY XL 2000, 3 WHEEL

MAT, BATTERY, BLACK, 10 1/2" X 6 1/2", SCUFF MATERIAL

STRAP, 1.00" X 37.00, BATTERY, CINCHING, WITH CLIPS

GUARD, SPLASH, PLASTIC, REAR, VICTORY XL3, D-9550-021

SCREW, HHCS, ZINC, M6 X 1 X 50MM

WASHER, FLAT, M6, STANDARD

SPACER, NYLON, 8.2MM ID X 19MM OD X 6.4MM TH

THIN NUT, M6 X 1.0, NYLOCK

DECAL, SERIAL NUMBER, LUNA, SC260, L-9550-020

FOAM, .25MM X 55MM, W/ADHESIVE

FOAM, .25MM X 125MM, W/ADHESIVE

Pride Mobility

TIE WRAP,BLACK,6" (PLSTIE1002)

Pride Mobility

TIEDOWN STRAP, 200 LG, PLASTIC, BLACK, SPEC NO. 2106329-2-50-175-V2 (PLSTIE1004)

SCREW, HHCS, M8-1.25 X 50MM

CAP, END, PLASTIC, 31.75MM X 31.75MM, BLACK RIBBED SQUARE

SCREW, HHCS, M8-1.25 X 90MM

WHEEL, ASSY, ANTI-TIP, VICTORY XL3

Monster Scooter Parts

72mm Front Anti-Tip Wheel Assembly with Bearings for Jazzy & Pride Scooters & Power Chairs (WHLATIP1004)

SCREW, HHCS, ZINC, M8 -1.25 X 70MM

WASHER, FLAT, ZINC, M8 X 17MM OD X 1MM TH

NUT, NYLOCK, BLACK ZINC, M8-1.25

DECAL, SERIAL NUMBER, 4" X 6", BARCODE, W/PRIDE LOGO

DECAL, TNO BATTERY CONNECTION
