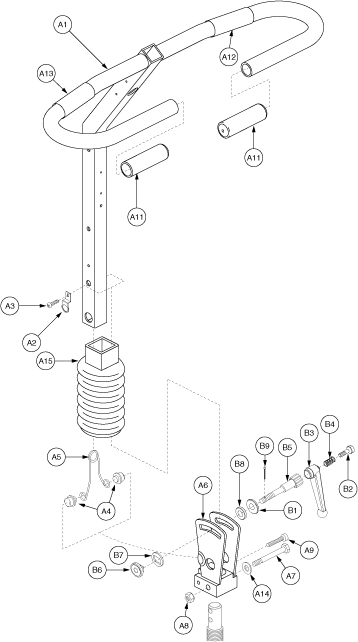

Pride Victory XL (SC260) - Frame Assemblies - Tiller - S3907202002c10 - S3919702075c10


Pos.
MPN
Details
A1 - A14
FRMASMB3216

TILLER, ASSY, TILTING, VICTORY XL SERIES, HANDBRAKE READY

---
A1
DWR9550E004

TILLER, WELDMENT VICTORYXL 2000 3WHEEL

---
A2
PROHDLC1044

HAND GRIP, BLACK, FOAM, 4.75"L, W/O MIRROR CUT-OUT

---
A3
PROHDLC1043

HAND GRIP, BLACK, FOAM, 5.75"L, W/O MIRROR CUT-OUT

---
A4
INDPART1994

BRKT, RESRTAINT, SLIDE WASHER, TILTING TILLER, SC160/170

---
A5
SCRPRH1009

SCREW, PRH, ZINC, M4 X 15MM, SHEET METAL

---
A6
INDPART1021

BUTTON, PUSH, FOLDING PRESS, SC-150

---
A7
SPGRAW1025

SPRING, COMPRESSION, STEEL

---
A8
PROBOOT1009

BOOT, TILLER, 6 RING, SQUARE TOP

---
A9
DWR9550C006

STEERING BLOCK, VICTORY XL3, C-9550-006

---
A10
SCRHHCS1089

SCREW, HHCS, M8-1.25 X 50MM

---
A11
NUTNYLK1012

NUT, NYLOCK, BLACK ZINC, M8-1.25

---
A12
SCRALNH1038

Monster Scooter Parts

Motor Mount Bracket Screw for the Jazzy 1101 and Jazzy 1121 (SCRALNH1038)

$1.11 $1.47
View details
A13
WASSTND1061

WASHER, FLAT, ZINC, M8 X 16MM X 1.0TH

---
A14
PLSTIE1004
View details
B1 - B8
FRMASMB1698

HANDLE, ASSY, LOCKING, TILLER, VICTORY

---
B1
BLTASHL1055

BOLT, SHOULDER, M4 X 14MM, .7T

---
B2
SPGRAW1015

SPRING, RAW, 5/8" ID X 1" LONG, 4 TURN

---
B3
INDPART1688

LEVER, TILLER LOCK, SHUTTLE

---
B4
HDWINDV1010

BOLT, INNER, LEVER, TILT, LOCKING TEETH, M8 - 1.25T X 44MM

---
B5
WASSTND1062

WASHER, FLAT, ZINC, M8 X 22MM OD X 2MM TH

---
B6
WASNYLN1053

WASHER, NYLON, M8 X 19MM OD X 3.5MM TH

---
B7
WASINDV1001

WASHER, WHITE, NYLON 6/6, 26.9MM OD X 2MM THK, SLIDE

---
B8
NUTSLDE1000

NUT, SLIDE, M8 X 1.25T, C-9590-024

---
C1 - D3
FRMASMB5105

LEVER, ASSY, THROTTLE CONTROL, SOFT-GRIP, PLASTIC, 240MM OVERALL LENGTH, FITS CURTIS 8MM SHAFT THROTTLE POT, W/COLOR CODED THUMB INSERT

---
D1 - D3
PLSASMB1508

LEVER, ASSY, THROTTLE CONTROL, 240MM OVERALL LENGTH, W/COLOR CODED INSERTS, C-9550-054

---
D1
DWR9550C048

THROTTLE, 240MM OVERALL LENGTH, CONTROL LEVER, BLACK NYLON, C-9550-048

---
D2
DWR9550A045

LEVER, RUBBER INSERT, YELLOW, THROTTLE CONTROL, REVERSE

---
D3
DWR9550A044

LEVER, RUBBER INSERT, GREEN, THROTTLE CONTROL, FORWARD

---
E1 - E8
ELEASMB2938

ELECTRONIC, ASSY, THROTTLE POT, 5K, W/HARNESS, CARELINE

---
E1
ELEPOT1004

ELECTRONIC, THROTTLE POT, 5K, LINE INDUSTRIES

---
E2
DWR9570H002

ELECTRONIC, HARNESS, THROTTLE POT CONNECTION, MOLEX, 3 PIN, UK/USA (312023)

---
E3
INDPART1992

BRACKET, POTENTIOMETER, LINE INDUSTRIES, A-1000-247

---
E4
INDPART1993

SPRING, TORSION, 1.16" L X 0.64" W, POTENTIOMETER, A-1000-248

---
E5
WASNYLN1050

WASHER, NYLON, 10MM ID X 18MM OD X 3.6MM TH, A-1000-245

---
E6
SCRSETS1007

SCREW, SET, M4-.7 X 6MM

---
E7
HDWINDV1015

SHIM, POTENTIOMETER, A-1000-062

---
E8
SCRPPH1070

SCREW, PPH, BLACK ZINC, M3 X 15MM, THREAD CUTTING

---
