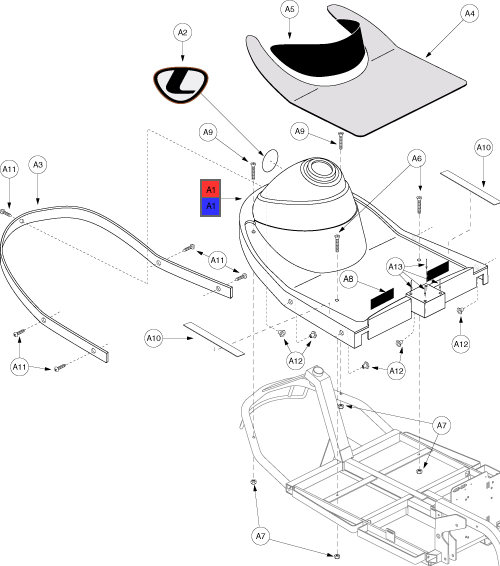

Pride Victory XL (SC260) - Shroud Assembly - Front - V01121260 - Subsequent


Pos.
MPN
Details
A1 - A14
SHDASMB3187

SHROUD, ASSY, FRONT BODY, VIPER BLUE, LUNA

---
A1
SHDPNTD2039

SHROUD, FRONT BODY, PAINTED, VIPER BLUE, XL32, W/TRIM MOUNTING HOLES

---
A2
DWR9550L003

DECAL, NAME, LUNA, FRONT

---
A3
PROMLDG1085

TRIM, BLACK, 1"W X 69"L, W/MOUNTING HOLES

---
A4
PROMATT1098

MAT, RUBBER, FLOOR, VICTORY XL3

---
A5
PROSCUF1025

MAT, SCUFF GUARD, BLACK, VICXL3, FOOTREST

---
A6
SCRPFH1006

SCREW, PFH, M6 X 12MML X 1.0T

---
A7
NUTNYLK1045

NUT, NYLOCK, ZINC, M6-1.0

---
A8
VELHOOK1007

FASTENER, 1" X 1 1/2", REUSABLE, HOOK

---
A9
SCRPFH1022

SCREW, PFH, BLACK ZINC, M6 X 1.0T X 35MM

---
A10
PROSCUF1036

MAT, SCUFF GUARD, BLACK, 13/16"W X 21"L, LEFT SIDE, C-9550-071

---
A11
SCRPPH1130

SCREW, PPH, BLACK ZINC, M5-.8 X 10MM

---
A12
NUTPANL1001

NUT, PANEL INSERT, M5-.8, ZINC (131509)

---
A13
RIVNUT1000

NUT, RIVET, CADMIUM-PLATED STEEL, M4 X .07

---
A14
PLSTIE1004
