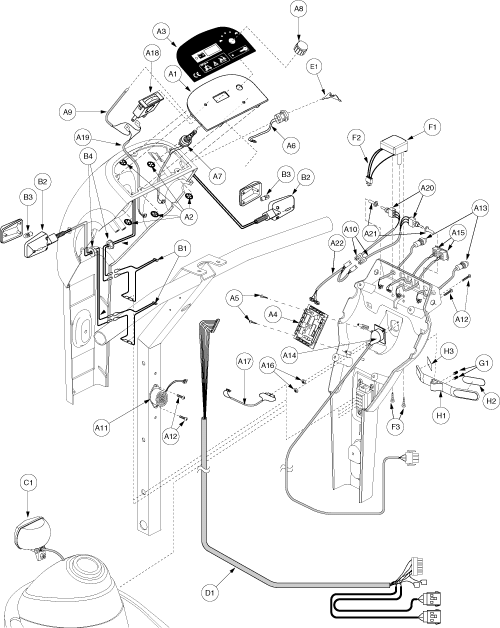

Pride Victory XL (SC260) - Console - S3919702075c10 - S3924502075c10


Pos.
MPN
Details
A1 - A22
ELEASMB3100

ELECTRONIC, ASSY, CONSOLE, LUNA

---
A1
PLSINDV1126

ELECTRONIC, PANEL, CENTER CONSOLE, PLASTIC, VICTORY XL3

---
A2
NUTRTC1000

NUT, REGULAR, 0.125" STUD DIAMETER, TRHEAD CUTTING, {PALNUT FASTENERS SR125004}

---
A3
DWR9550L018

DECAL, CENTER CSL PANEL, VICTORY XL3/XL4 INTERNATIONAL

---
A4
CTLDC1185

ELECTRONIC, PCB, TURN SIGNAL, VICTORY XL3, H-9550-017

---
A5
SCRPPH1115

SCREW, PPH, M3 X.35 X 8MM

---
A6
DWR9550H001

ELECTRONIC, HARNESS, KEY SWITCH, 2 PIN MOLEX CONNECTOR, VICTORY XL3

---
A7
DWR9550H009

ELECTRONIC, HARNESS, SPEED POT, 2 PIN MOLEX CONNECTOR, 5.6K, VICTORY XL3, 12 POSITION ROTARY SWITCH

---
A8
PLSKNCP1032

Monster Scooter Parts

Speed Pot Knob for the Pride Maxima (SC900) and Sundancer (SC2000) (PLSKNCP1032)

$4.99
View details
A9
DWR9550H015

ELECTRONIC, HARNESS, INDICATOR, 2 PIN MOLEX, LOW BATTERY, VICTORY XL3

---
A10
DWR9550H030

ELECTRONIC, HARNESS, TURN SIGNAL, LUNA

---
A11
DWR9550H004

ELECTRONIC, HARNESS, HORN, 2 PIN MOLEX CONNECTOR, PIEZO BUZZER, VICTORY XL3

---
A12
SCRPPH1094

SCREW, PPH, BLACK ZINC, M3 X 10MM, AB SELF THREADING

---
A13
DWR9930H008

ELECTRONIC, HARNESS, HORN, 2 PIN MOLEX CONNECTOR, MOMENTARY SWITCH, SUNDANCER 2001/VICTORY XL 3

---
A14
DWR9550H014

ELECTRONIC, HARNESS, CHARGER, 70", OFF BOARD, VICXL

---
A15
DWR9930H010

ELECTRONIC, HARNESS, SWITCH, ROCKER, 2 PIN MOLEX CONNECTOR, 12" L, HEADLIGHT/HAZARD/PWR SEAT

---
A16
NUTNYLK1055

NUT, NYLOCK, ZINC, M3-.5

---
A17
DWR9550H005

ELECTRONIC, HARNESS, FUSE, 2" FLAG, 4"FLAG, 2 PIN MOLEX CONNECTOR, VICTORY XL3

---
A18
ELEMETR1008

ELECTRONIC, METER, VOLT, CSL, SNAP-IN

---
A19
DWR9550H008

ELECTRONIC, HARNESS, VOLT METER/LED CONNECTION, 10", 2 FLAG, SC260, H-9550-008

---
A20
SWTTOGL1014

ELECTRONIC, SWITCH, TOGGLE, 10AMP/277VAC - 20AMP/125AC, 3/4HP, DPDT, WALCO

---
A21
PROBOOT1015

ELECTRONIC, TOGGLE SWITCH COVER, RUBBER BOOT, THREADED, WALCO:12-BLACK FLEX

---
A22
DWR9550H031

ELECTRONIC, HARNESS, INTERMEDIATE, TURN SIGNAL, LUNA

---
B1 - B5
ELEASMB3148

TURN SIGNAL, ASSY, FLEXIBLE STALK, W/FRONT & REAR AMBER LENS

---
B1
DWR9550H003

ELECTRONIC, TURN SIGNAL, 2 PIN MOLEX CONNECTOR, 2 PINK FLAGS, VICTORY XL3

---
B2
LGTTSNG1010

TURN, SIGNAL, FLEXIBLE STALK, W/FRONT & REAR AMBER LENSE

---
B3
LGTBULB1005

BULB, 24V, MOTORCYCLE STYLE 1820

---
B4
NUTSERF1006

NUT, SERRATED, ZINC, M8 X 1.25T

---
B5
CONREC1013

CONNECTOR, TAB, 110X.020, NO INSULATED

---
C1
ELEASMB3059

HEADLIGHT, ASSY, HELLA, VICTORY XL 3

---
D1
DWR9550H027

ELECTRONIC, HARNESS, FRONT TO REAR, W/LEFT & RIGHT LIGHT CONNECTIONS, SC260

---
E1
KEYSCO1009
F1 - F3
ELEASMB3227

ELECTRONIC, ASSY, THROTTLE POT, 5K, W/HARNESS, CURTIS

---
F1
ELEPOT1010

ELECTRONIC, THROTTLE POT, 5K, CURTIS: 15945701

---
F2
DWR9570H002

ELECTRONIC, HARNESS, THROTTLE POT CONNECTION, MOLEX, 3 PIN, UK/USA (312023)

---
F3
SCRPPTC1014

SCREW, PPH, M4 X 12MM, SELF-TAP

---
G1 - H3
FRMASMB5105

LEVER, ASSY, THROTTLE CONTROL, SOFT-GRIP, PLASTIC, 240MM OVERALL LENGTH, FITS CURTIS 8MM SHAFT THROTTLE POT, W/COLOR CODED THUMB INSERT

---
G1
SCRSETS1007

SCREW, SET, M4-.7 X 6MM

---
H1 - H3
PLSASMB1508

LEVER, ASSY, THROTTLE CONTROL, 240MM OVERALL LENGTH, W/COLOR CODED INSERTS, C-9550-054

---
H1
DWR9550C048

THROTTLE, 240MM OVERALL LENGTH, CONTROL LEVER, BLACK NYLON, C-9550-048

---
H2
DWR9550A045

LEVER, RUBBER INSERT, YELLOW, THROTTLE CONTROL, REVERSE

---
H3
DWR9550A044

LEVER, RUBBER INSERT, GREEN, THROTTLE CONTROL, FORWARD

---
