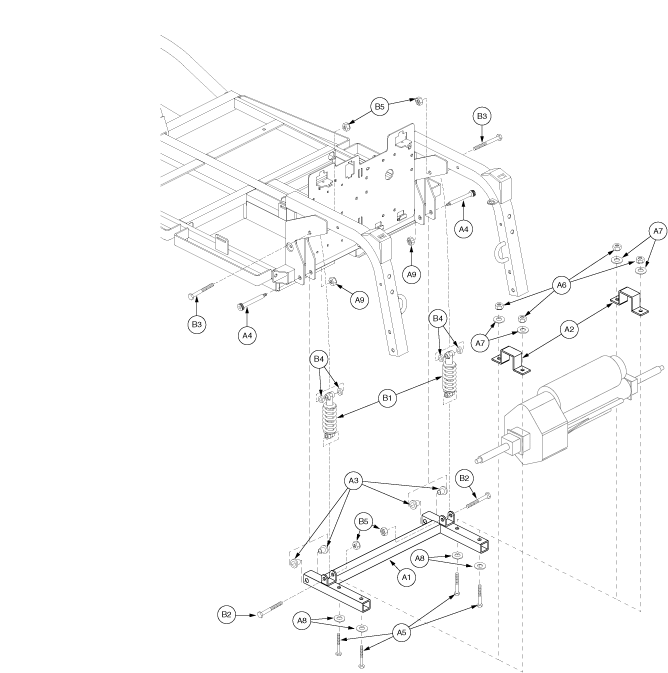

Pride Victory XL (SC260) - Frame Assemblies - Trail Arm


Pos.
MPN
Details
A1 - B5
FRMASMB7708

FRAME, ASSY, TRAIL ARM, W/STEEL BODIED SHOCKS, VICTORY XL3 2001

---
A1
DWR9550D020

WELDMENT, TRAIL ARM, VICTORY XL3, D-9550-020

---
A2
DWR9500B033

AXLE, FRAME, MOUNTED, B-9500-033

---
A3
DWG9900A040

BUSHING, MOTOR MOUNT, OIL IMPREG. BRONZE, .75" FLANGE OD X .503" SHAFT OD X .378" ID X .5" DEPTH X .094" FLANGE DEPTH, A-9900-004

---
A4
BLTASHL1101

BOLT, SHOULDER, BLACK, 10MM X 40MM, GRADE 5

---
A5
SCRHHCS1057

SCREW, HHCS, ZINC, M6-1.0 X 40MM

---
A6
NUTNYLK1045

NUT, NYLOCK, ZINC, M6-1.0

---
A7
WASSTND1063

WASHER, FLAT, ZINC, M6 X 14MM OD X 1MM TH

---
A8
WASSTND1080

WASHER, FLAT, M6, STANDARD

---
A10
PLSTIE1004
View details
B1 - B5
FRMASMB7714

SUSPENSION, ASSY, W/STEEL BODIED SHOCKS, VICTORY XL3 2001

---
B1
DWR9700C037

SPRING, SHOCK COIL, NON-ADJUSTABLE, STEEL BODIED, BLACK, 139.5MM L, RATE: 650 LBS/IN, C-9700-037

---
B2
SCRHHCS1199

SCREW, HHCS, ZINC, M8-1.25 X 40MM

---
B3
SCRHHCS1121

SCREW, HHCS, BLACK ZINC, M8-1.25 X 90MM

---
B4
SPCNYLN1031

SPACER, NYLON, 16MM OD X 8.2MM ID X 5.0MM

---
B5
NUTNYLK1012

NUT, NYLOCK, BLACK ZINC, M8-1.25

---
