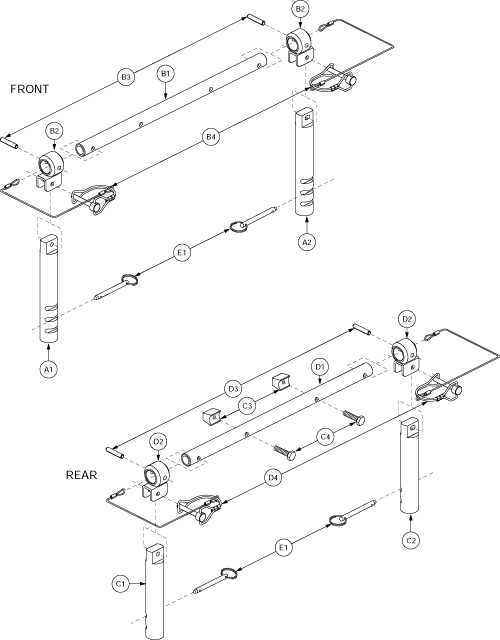

Jazzy 1113 ATS - Towers / Seat Mounts - Universal - Towers & Trapeze Bar, Tall Slotted
Pos.
MPN
Details
A1 - E1
FRMASMB9913

TOWER SPANNER, ASSY, UNIVERSAL SEAT FRAME, 13.625" CENTERS, TALL, QUICK RELEASE, W/PINS, PAIR

---
A1 - B4
FRMASMB9911

TOWER SPANNER, ASSY, UNIVERSAL SEAT FRAME, 13.625" CENTERS, TALL, QUICK RELEASE, FRONT, E-1010-697

---
A1
DWR1010C277

SEAT TOWER, 3 POSITION, 6.5"L, UNIVERSAL SEAT FRAME, JAZZY1113ATS, VA, C-1010-277

---
A2
DWR1010C279

SEAT TOWER, 3 POSITION, 6.5"L, UNIVERSAL SEAT FRAME, SLOTTED, JAZZY1113ATS, VA, C-1010-279

---
C1 - D4
FRMASMB9910

TOWER SPANNER, ASSY, UNIVERSAL SEAT FRAME, 13.625" CENTERS, TALL, QUICK RELEASE, REAR, E-1010-696

---
C1
DWR1010C276

SEAT TOWER, 2 POSITION, 5.6"L, UNIVERSAL SEAT FRAME, JAZZY1113ATS, VA, C-1010-276

---
C2
DWR1010C278

SEAT TOWER, 2 POSITION, 5.6"L, UNIVERSAL SEAT FRAME, SLOTTED, JAZZY1113ATS, VA, C-1010-278

---
C3
DWR1010B033

TRAPEZE BAR STOP BLOCK, B-1010-033

---
C4
SCRHHCS1188

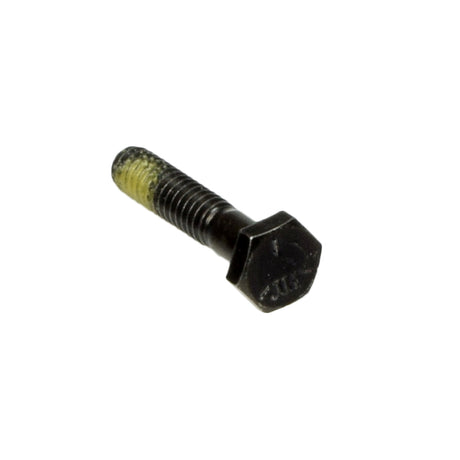

1/4-20x1.25 Hex Head Bolt (SCRHHCS1188) typically used in seat tower assemblies and pinchless hinges of Jazzy and Quantum power chairs.

Monster Scooter Parts

1/4-20x1.25" Hex Head Bolt (SCRHHCS1188)

$2.25 $2.99
View details
D1 - D4
FRMASMB7474

SEAT TOWER, ASSY, TRAPEZE BAR, UNIVERSAL SEAT FRAME, 13.625" CENTERS, QUICK RELEASE, E-1010-392

---
D1
DWR1010D161

HORIZONTAL TOWER SPANNER WELDMENT, UNIVERSAL SEAT FRAME, D-1010-161

---
D2
DWR1010C157

TOWER COLLAR WELDMENT, 13.625" CENTERS, C-1010-157

---
D3
PINSPRG1025

SPRING PIN, SLOTTED, BLACK ZINC, STEEL, 6MM DIA X 30MM L, B-1005-004

---
D4
FRMASMB10678

SEAT TOWER, ASSY, 6MM PIN & 8" LANYARD, C-1010-304

---
E1
PINCOTD1002

COTTERLESS DETENT PIN, 0.25" DIA X 1.75" GRIP LENGTH, W/RING

---
