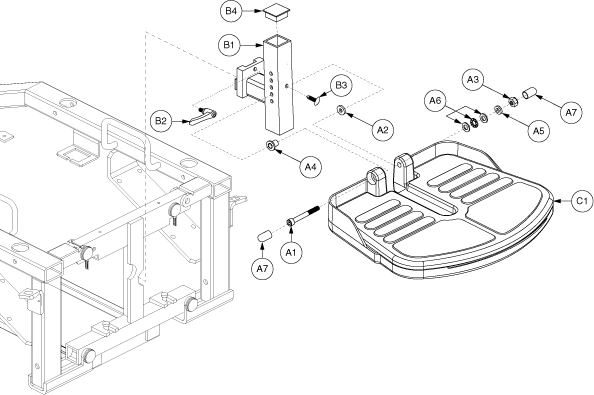

FOOT PLATFORM, ASSY, 9.55"D, QUICK RELEASE-OFFSET MOUNT, W/HARDWARE UPGRADE, JAZZY1113/1113ATS
MOUNTING BRACKET, ASSY, FOOT PLATFORM, OFFSET MOUNT, W/HARDWARE UPGRADE, JAZZY1113/1113ATS/JET7
Pride Mobility

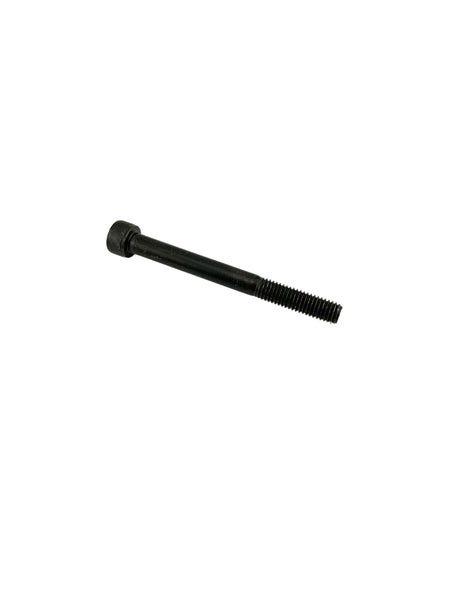

SCREW, SOCKET HEAD, M8X1.25 X 80, ISO 4762, CL 12.9, BZ (SCRSHCS1170)
Monster Scooter Parts

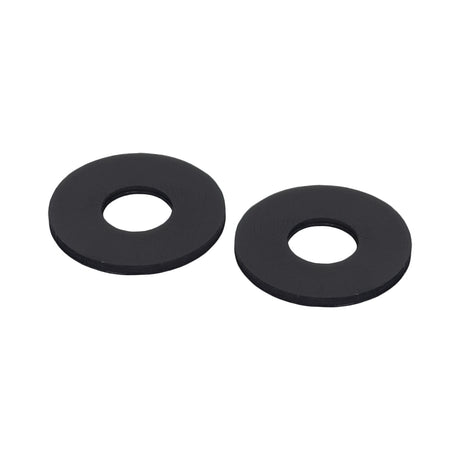

5/16" x 7/8" x 1/16" General Purpose Nylon Flat Washer (Set of 2) (WASNYLN1013)
FOOT PLATFORM MOUNTING SLEEVE, FLANGE, STEEL, B-1000-458
SPACER, STEEL, 0.328" ID X 0.50" OD X 0.076" TH, B-1000-459
BEARING, BALL THRUST, STAINLESS STEEL, 0.3125" ID X 0.625" OD X 0.193" TH, (MCMASTER-CARR: 6655K34)
CAP, VINYL, 0.50" ID, FITS 0.50" - 0.5625" OD, 0.50" H, (MCMASTER CARR: 9753K44)
FOOT PLATFORM MOUNTING BRACKET, ASSY, W/RELEASE LEVER, C-1113-024
FOOT PLATFORM MOUNTING BRACKET WELDMENT, C-1113-023
LEVER, 1/4-20 X 0.39'' THREAD LENGTH X 1.77" HANDLE LENGTH, DIE CAST, (MSC:03782505)
RATCHET FASTENER, BLACK, NYLON, M8 HOLE SIZE X 15MM L
END CAP, PLASTIC, 1.25" SQUARE, FITS 12 GAUGE TUBE, RIBBED
FOOT PLATFORM, ASSY, GRID STYLE, 9.55"D, W/MAT & HARDWARE, E-1000-108
