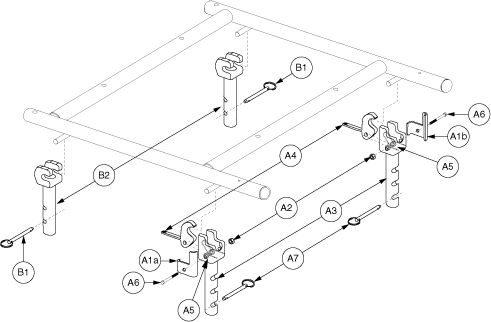

Jazzy 1113 ATS - Towers / Seat Mounts - H -Frame


Pos.
MPN
Details
A1a - A7
FRMASMB3835

FRAME, ASSY, H-FRAME FRONT TOWER, RIGHT, 1113 METRIC

---
A1b - A7
FRMASMB3834

FRAME, ASSY, H-FRAME FRONT TOWER, LEFT, 1113 METRIC

---
A1a
IND1211A002

MOUNTING BRACKET, SEAT RETAINING, RIGHT

---
A1b
IND1211A001

MOUNTING BRACKET, SEAT RETAINING, LEFT

---
A2
NUTNYLK1003

NUT, NYLOCK, ZINC, 1/4-20

---
A3
PLSINDV1014

SEAT TOWER, FRONT, C-1200-156

---
A4
IND1242A000

LATCH, STD JAZZY SEAT

---
A5
SPGRAW1003

SPRING, RAW, DOUBLE TORSION, B-1114-018

---
A6
SCRHHCS1034

SCREW, HHCS, BLACK ZINC, 1/4-20 X 2.00", GRADE 5

---
B1 - B2
FRMASMB3836

FRAME, ASSY, H-FRAME REAR TOWER, JAZZY1113, METRIC

---
B1
PINCOTD1002

COTTERLESS DETENT PIN, 0.25" DIA X 1.75" GRIP LENGTH, W/RING

---
B2
DWR1113C013

TOWER, REAR, TWO HOLE

---
