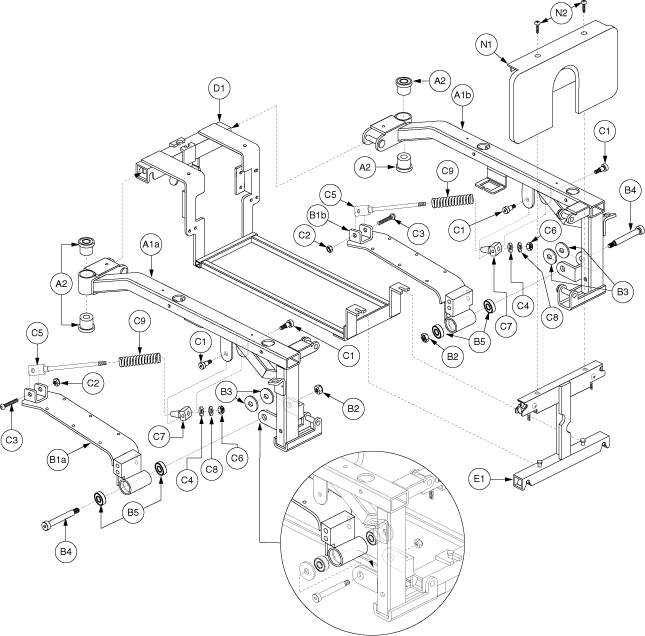

Jazzy 1113 ATS - Main Frame / Motor Mount - Use W/ Tb Super Low Tilt


Pos.
MPN
Details
A1 - M1
FRMASMB6009

FRAME, ASSY, MAIN, W/ANTI-TIPS, SUPERLOW, E-1114-013

---
A1a - A2
FRMASMB6010

FRAME, ASSY, 1113ATS, RIGHT, TAKE APART, SUPERLOW

---
A1b - A2
FRMASMB6011

FRAME, ASSY, TAKE APART, JAZZY1113ATS, LEFT, SUPERLOW, D-1114-018

---
A1a
DWR1114E011

FRAME, WELDMENT, JAZZY1113ATS, RIGHT, SUPERLOW

---
A1b
DWR1114E012

FRAME, WELDMENT, LEFT, JAZZY1113ATS, SUPERLOW, E-1114-012

---
A2
BRGFLNG1008

BEARING, FLANGE, BRONZE, 0.50"ID X 0.75"OD X 0.625"TH X 0.875"FOD X 0.125"F

---
B1a - B5
FRMASMB3340

ANTI-TIP, ASSY, MOTOR MOUNT, JAZZY1113ATS, RIGHT

---
B1b - B5
FRMASMB3339

ANTI-TIP, ASSY, MOTOR MOUNT, JAZZY1113-ATS, LEFT

---
B1a
DWR1114D007

MOUNTING BRACKET, MOTOR MOUNT, RIGHT HAND, 1113-ATS

---
B1b
DWR1114D006

MOUNTING BRACKET, MOTOR MOUNT, LEFT HAND, JAZZY1113ATS

---
B2
NUTNYLK1006

Monster Scooter Parts

Swing Arm Nut for the Jazzy 1170 XL Plus (NUTNYLK1006)

$3.29
View details
B3
WASNYLN1018

Pride Mobility

WASHER,NYLON,0.500" ID X 1.125" OD X 0.0625" TH (WASNYLN1018)

$3.29
View details
B4
BLTASHL1003

BOLT, SHOULDER, 1/2" X 2.50"

---
B5
BRGSLV1003

BEARING,RADIAL BALL,0.50" ID X 1.125" OD X 0.3125" TH,METAL SHIELD,R8ZZ,A-1010-014

---
C1 - C9
FRMASMB3350

STRUT, ASSY, MOTOR MOUNT, 4.31"LG, 5/16"SHAFT, 1113ATS

---
C1
BLTASHL1112

BOLT, SHOULDER, 1/4" X 0.25", A-1000-269

---
C2
NUTNYLK1014

Pride Mobility

NUT, LOCK, .250-20, ASME B18.16.6, GR NE2, BZ, PVTP (NUTNYLK1014)

$3.29
View details
C3
SCRASBH1008

SCREW, BHSCS, BO, 1/4-20 X 1.75", GRADE 8

---
C4
WASDAMP1000
View details
C5
DWR1114B007

SUSPENSION, STRUT, 4.31"LG, 5/16"SHAFT, WELDMENT

---
C6
NUTNYLK1026

Pride Mobility

NUT, LOCK, .3125-18, ASME B18.16.6, GR NE2, BZ, PVTP (NUTNYLK1026)

$3.29 $3.34
View details
C7
DWG1200A350

SUSPENSION, PIVOT, SPRING, A-1200-035

---
C8
WASSTND1025

WASHER, FLAT, ZINC, 0.3125" ID X 0.625" OD X 0.036" TH

---
C9
SPGPNT1008

SPRING, BEIGE, 3.00" FL, B-1010-037

---
D1
FRMASMB3348

BATTERY TRAY LATCH, ASSY, REAR, JAZZY1113ATS

---
E1
FRMASMB3345

FRONT LOCK, ASSY, W/OFFSET MOUNTING HOLES, 1113ATS

---
F1
FRMASMB3362

STRUT, ASSY, 6.31"LG, 5/16"SHAFT, HT ADJUSTABLE, 1113ATS

---
G1
FRMASMB3338

ANTI-TIP, ASSY, FORK, JAZZY1113ATS, RIGHT, D-1114-013

---
H1
FRMASMB3337

FORK, ASSY, ANTI-TIP, JAZZY1113ATS, LEFT, D-1114-012

---
I1
FRMASMB3405

FREEWHEEL, ASSY, MOTOR RELEASE LEVER, RIGHT, C-1114-020

---
J1
FRMASMB3404

FREEWHEEL, ASSY, MOTOR RELEASE BRACKET, LEFT, C-1114-021

---
K1
WHLASMB1284

Monster Scooter Parts

6" Front Anti-Tip Wheel Assembly for Jazzy, Jet, and Quantum Power Chairs

$29.99
View details
L1
SCRSHF1016

SCREW, SHFH, BLACK ZINC, 5/16 X 2.50", FULLY THREADED

---
M1
NUTNJAM1015

Pride Mobility

NUT, JAM, PVTP, .3125-18, STL, BZ (DWG 147337) (NUTNJAM1015)

$3.29
View details
N1 - N2
SHDASMB3749

SHROUD, ASSY, BLACK, FRONT LOCK, 1113 SERIES

---
N1
SHDRAWM2096

SHROUD, RAW, FRONT, JAZZY1113

---
N2
SCRPPSM1000

SCREW, PPH-SHEET METAL, ZINC, #8 X 0.50"

---
