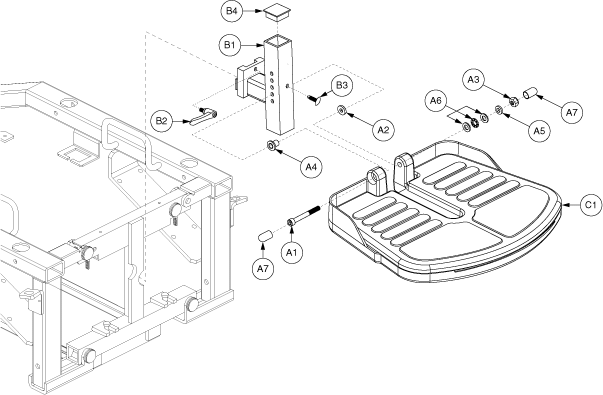

Jazzy 1113 ATS - Footrest Platform - 11.62


Pos.
MPN
Details
A1 - C1
FRMASMB8284

FOOT PLATFORM, ASSY, 11.62"D, QUICK RELEASE-OFFSET MOUNT, W/HARDWARE UPGRADE, JAZZY1113/1113ATS

---
A1 - B4
FRMASMB8282

MOUNTING BRACKET, ASSY, FOOT PLATFORM, OFFSET MOUNT, W/HARDWARE UPGRADE, JAZZY1113/1113ATS/JET7

---
A1
SCRSHCS1170

Pride Mobility

SCREW, SOCKET HEAD, M8X1.25 X 80, ISO 4762, CL 12.9, BZ (SCRSHCS1170)

$2.47 $3.29
View details
A2
WASNYLN1013

Monster Scooter Parts

5/16" x 7/8" x 1/16" General Purpose Nylon Flat Washer (Set of 2) (WASNYLN1013)

$2.10 $3.99
View details
A3
NUTNJAM1020

Monster Scooter Parts

M8-1.25x6.5 Black Lock Nut (NUTNJAM1020)

$2.99
View details
A4
DWR1000B458

FOOT PLATFORM MOUNTING SLEEVE, FLANGE, STEEL, B-1000-458

---
A5
DWR1000B459

SPACER, STEEL, 0.328" ID X 0.50" OD X 0.076" TH, B-1000-459

---
A6
BRGSBTH1000

BEARING, BALL THRUST, STAINLESS STEEL, 0.3125" ID X 0.625" OD X 0.193" TH, (MCMASTER-CARR: 6655K34)

---
A7
PROECAP1080

CAP, VINYL, 0.50" ID, FITS 0.50" - 0.5625" OD, 0.50" H, (MCMASTER CARR: 9753K44)

---
B1 - B4
FRMASMB9257

FOOT PLATFORM MOUNTING BRACKET, ASSY, W/RELEASE LEVER, C-1113-024

---
B1
DWR1113C023

FOOT PLATFORM MOUNTING BRACKET WELDMENT, C-1113-023

---
B2
HDWINDV1073

LEVER, 1/4-20 X 0.39'' THREAD LENGTH X 1.77" HANDLE LENGTH, DIE CAST, (MSC:03782505)

---
B3
PLSXTRE1000

RATCHET FASTENER, BLACK, NYLON, M8 HOLE SIZE X 15MM L

---
B4
PROECAP1030

END CAP, PLASTIC, 1.25" SQUARE, FITS 12 GAUGE TUBE, RIBBED

---
C1
FRMASMB2117

FOOT PLATFORM, ASSY, GRID STYLE, 11.62"D, W/MAT & HARDWARE, E-1000-105

---
