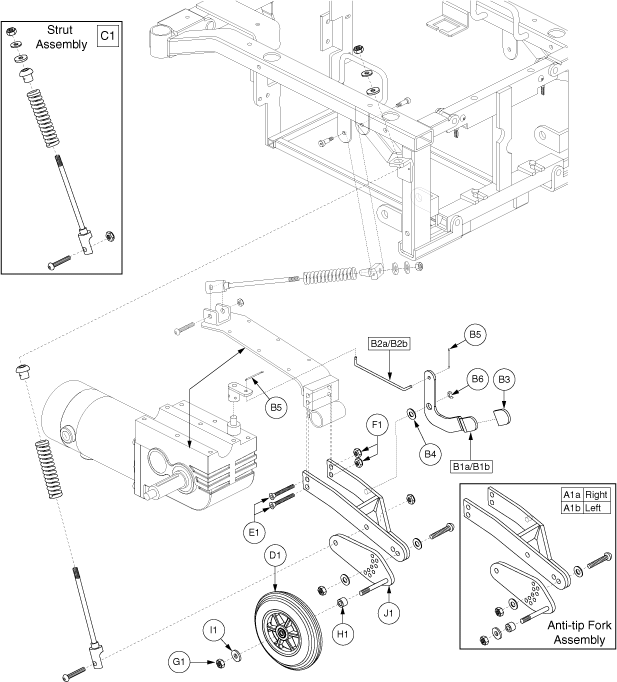

Jazzy 1113 ATS - Anti -Tip / Freewheel Release


Pos.
MPN
Details
A1a
FRMASMB3338

ANTI-TIP, ASSY, FORK, JAZZY1113ATS, RIGHT, D-1114-013

---
A1b
FRMASMB3337

FORK, ASSY, ANTI-TIP, JAZZY1113ATS, LEFT, D-1114-012

---
B1a - B6
FRMASMB3405

FREEWHEEL, ASSY, MOTOR RELEASE LEVER, RIGHT, C-1114-020

---
B1b - B6
FRMASMB3404

FREEWHEEL, ASSY, MOTOR RELEASE BRACKET, LEFT, C-1114-021

---
B1a
DWR1114B009

FREEWHEEL, MOTOR RELEASE LEVER, RIGHT, JAZZY1113ATS

---
B1b
DWR1114B008

FREEWHEEL, MOTOR RELEASE LEVER, LEFT, JAZZY1113ATS

---
B2a
DWR1114B012

FREEWHEEL, MOTOR RELEASE ROD, RIGHT, JAZZY1113ATS

---
B2b
DWR1114B010

FREEWHEEL, MOTOR RELEASE ROD, LEFT, JAZZY1113ATS

---
B3
PROHDLC1014

COVER, HANDLE, STD WIGWAG, BLANK

---
B4
WASWAVY1001

WASHER, WAVY, 3/8"ID X.013TH

---
B5
PINSOTR1000

Monster Scooter Parts

Freewheel Assembly Pin for the Jazzy 1121 (PINSOTR1000)

$3.29
View details
B6
RNGRTAN1013

RETAINING RING, E-CLIP, 0.375", EXTERNAL

---
C1
FRMASMB3362

STRUT, ASSY, 6.31"LG, 5/16"SHAFT, HT ADJUSTABLE, 1113ATS

---
D1
WHLASMB1284

Monster Scooter Parts

6" Front Anti-Tip Wheel Assembly for Jazzy, Jet, and Quantum Power Chairs

$29.99
View details
E1
SCRSHF1016

SCREW, SHFH, BLACK ZINC, 5/16 X 2.50", FULLY THREADED

---
F1
NUTNJAM1015

Pride Mobility

NUT, JAM, PVTP, .3125-18, STL, BZ (DWG 147337) (NUTNJAM1015)

$3.29
View details
G1
NUTNYLK1019

Monster Scooter Parts

M6-1.0 Black Lock Nut (NUTNYLK1019)

$0.99
View details
H1
SPCNYLN1003
View details
I1
WASNYLN1017

Pride Mobility

WASHER, FLAT, 0.313 ID X 1.00 OD X 0.188 THK, NYLON (WASNYLN1017)

$3.29
View details
J1
DWR1114C001

ANTI-TIP, ADJUSTMENT, JAZZY1113-ATS, C-1114-001

---
