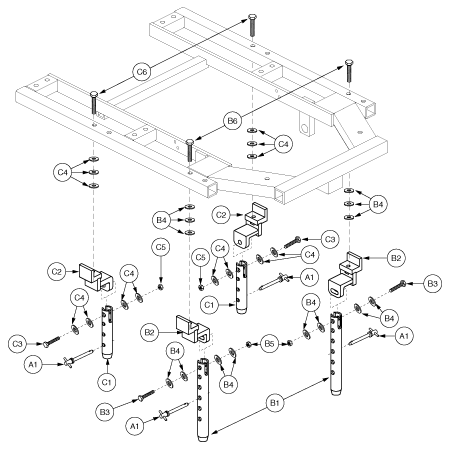

Jazzy 1113 ATS - Towers / Seat Mounts - Tilt - Versa Tilt


Pos.
MPN
Details
A1
PINCLEV1022

QUICK RELEASE PIN, SELF LOCKING, 1/4" X 1.50" GRIP LENGTH, W/PLASTIC "T" HANDLE

---
B1 - C6
FRMASMB4433

TOWER, ASSY, ANGLE ADJUSTABLE, FRONT/REAR, VERSA TILT, JAZZY1113

---
B1 - B6
FRMASMB2789

MOUNTING TOWER, ASSY, 5/16"HDW, VERSA TILT, ANGLE ADJUSTABLE, JAZZY1113

---
B1
DWR1000C173

SEAT POST, STANDARD, 6.5"L, 6 HOLES, VERSA TILT, C-1000-173

---
B2
DWR1113B029

VERSA TILT REAR MOUNT, JAZZY1113

---
C1 - C6
FRMASMB2787

MOUNTING TOWER, ASSY, 5/16"HDW, VERSA TILT, REAR, ANGLE ADJUSTABLE, JAZZY1113

---
C1
DWR1113A021

SEAT POST, 4''LG, 4 HOLE, JAZZY1113, A-1113-021

---
C2
DWR1113B030

VERSA TILT REAR MOUNT, V2, JAZZY1113

---
C3
SCRHHCS1181

SCREW, HHCS, BLACK ZINC, 5/16-18 X 1.25", GRADE 8

---
C4
WASSTND1042
View details
C5
NUTNYLK1026

Pride Mobility

NUT, LOCK, .3125-18, ASME B18.16.6, GR NE2, BZ, PVTP (NUTNYLK1026)

$3.29 $3.34
View details
C6
SCRHHCS1182

SCREW, HHCS, BLACK ZINC, 5/16-18 X 1.50", GRADE 8

---
