Jazzy 1113 ATS - Electronics / Battery Box - 50 - 70 Amp Breakers W/ Serviceable Hardware
Parts Diagrams

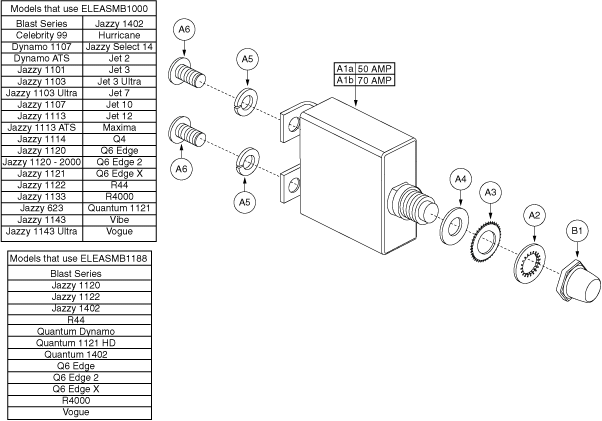

Jazzy 1113 ATS - Electronics / Battery Box - 50 - 70 Amp Breakers W/ Serviceable Hardware Click to enlarge
Pos.
MPN
Details
A1a
ELE1802761
Circuit Breaker with Right Angle Terminals for the Jazzy Jet 3, featuring a black rectangular body with silver connectors and a numbered button.

Monster Scooter Parts

Circuit Breaker with Right Angle Terminals for the Jazzy Jet 3 (ELE1802761)

$22.99
View details
A1b
ELE1705477
70 Amp Circuit Breaker with Right Angle Screw Terminals, featuring a white electrical device with a visible screw and close-up details of a metal nut and label.

Monster Scooter Parts

70 Amp Circuit Breaker with Right Angle Screw Terminals (ELE1705477)

$46.19
View details
A2
HDW163631

PAL NUT, 7/16 - 28 THREAD (FOR USE IN MECHANICAL PRODUCTS CIRCUIT BREAKERS)

---
A3
HDW163630

KNURLED NUT, 7/16 - 28 THREAD

---
A4
HDW144516

NAMEPLATE, PRESS TO RESET

---
A5
HDW144515

WASHER, SPLIT RING LOCK

---
A6
HDW144393

SCREW, 10-32 NCF

---
B1
INDPART2420

Monster Scooter Parts

Battery Box Breaker Button Cover for the Go-Go Elite (INDPART2420)

$3.29
View details
