Monster Scooter Parts  |  SKU: X98-8472

196cc 6.5 Hp Engine for the Realtree RTK200 Go-Kart

$219.99 Free Shipping

This item is not returnable. Return Policy

This item has a 30 day warranty. Warranty Policy

Free Shipping

  • US domestic ship to addresses only.
  • Does not include expedited shipping services.
Key Features

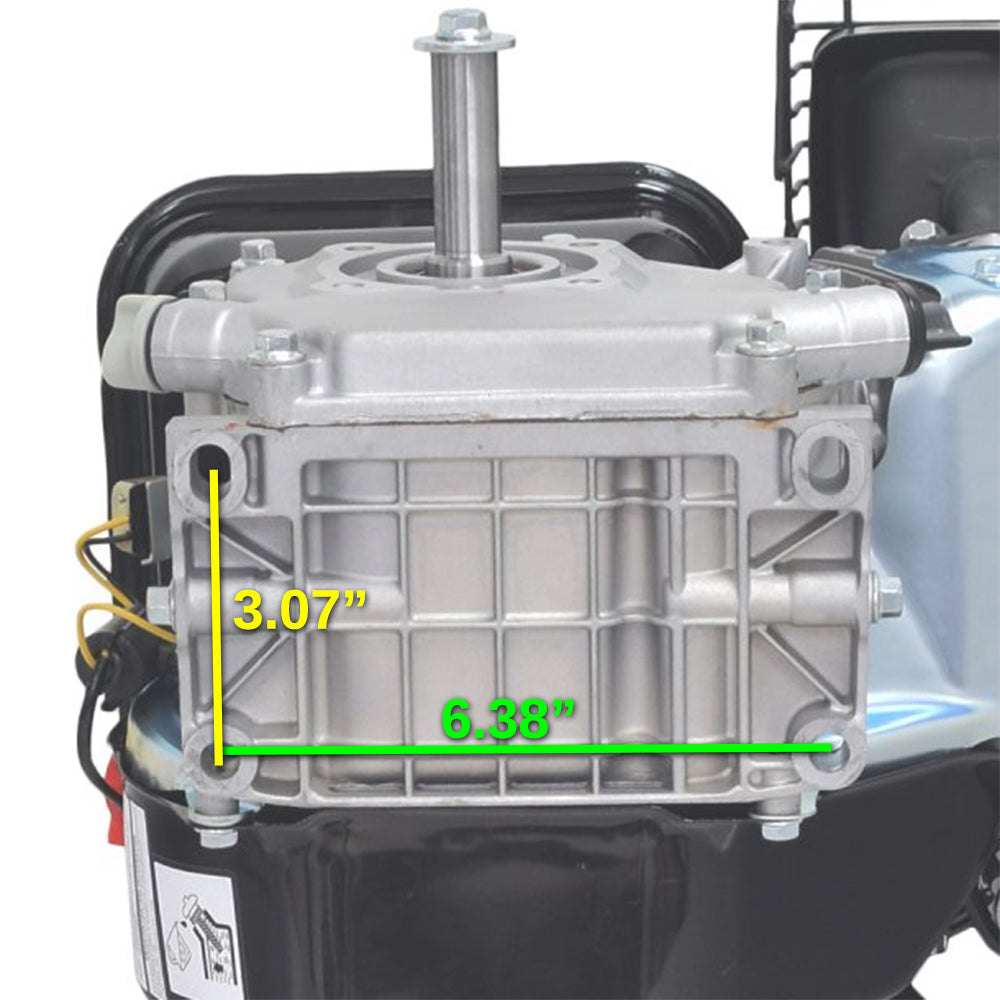

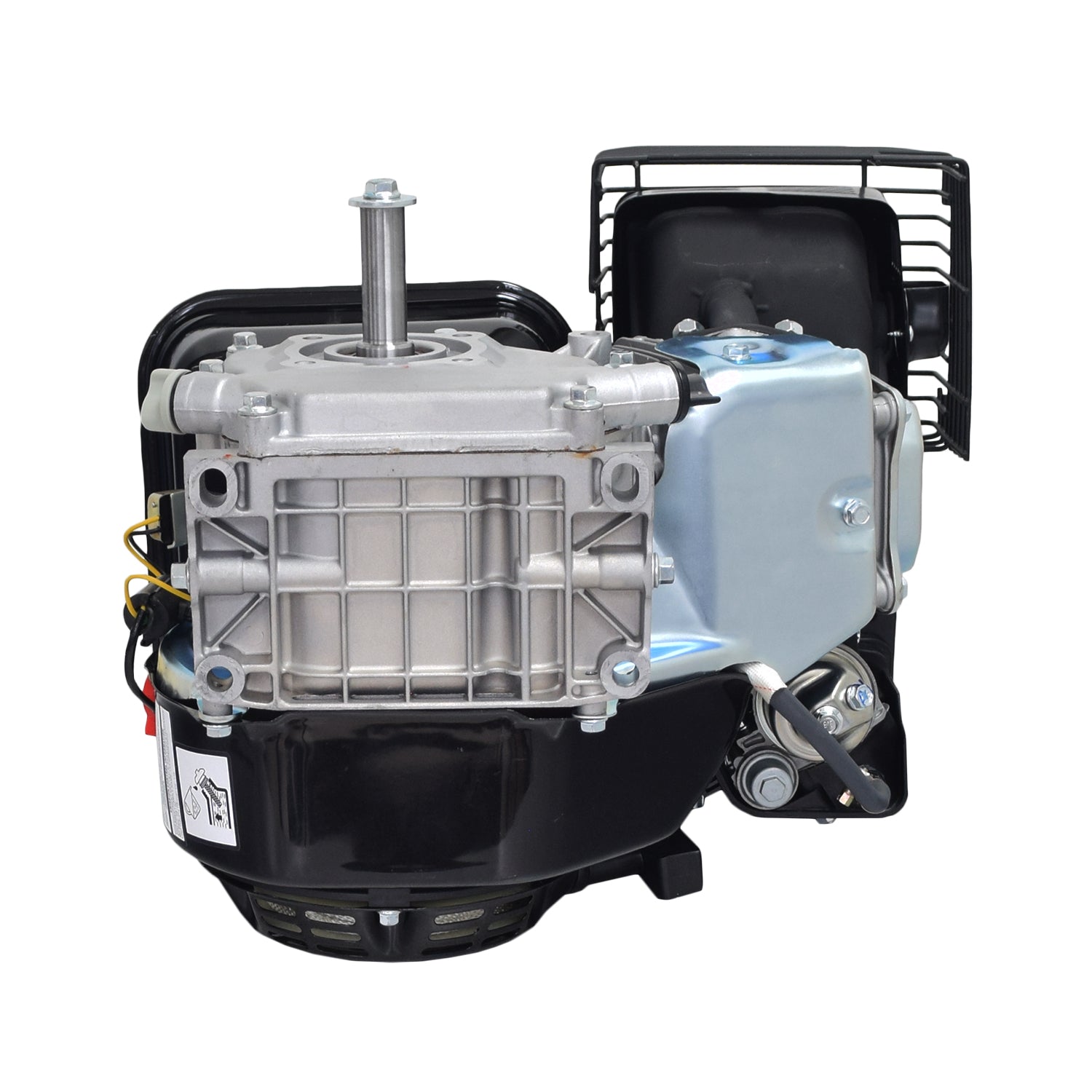

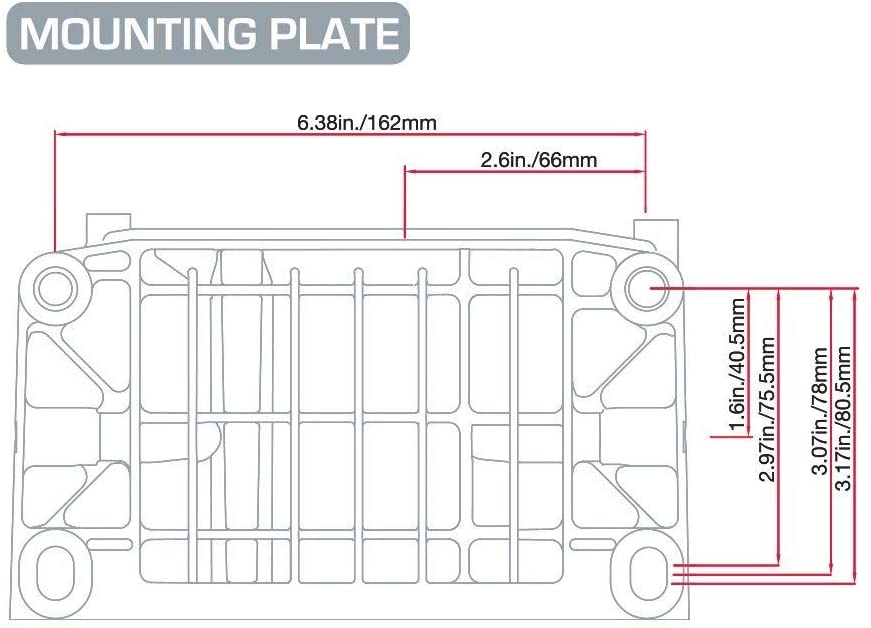

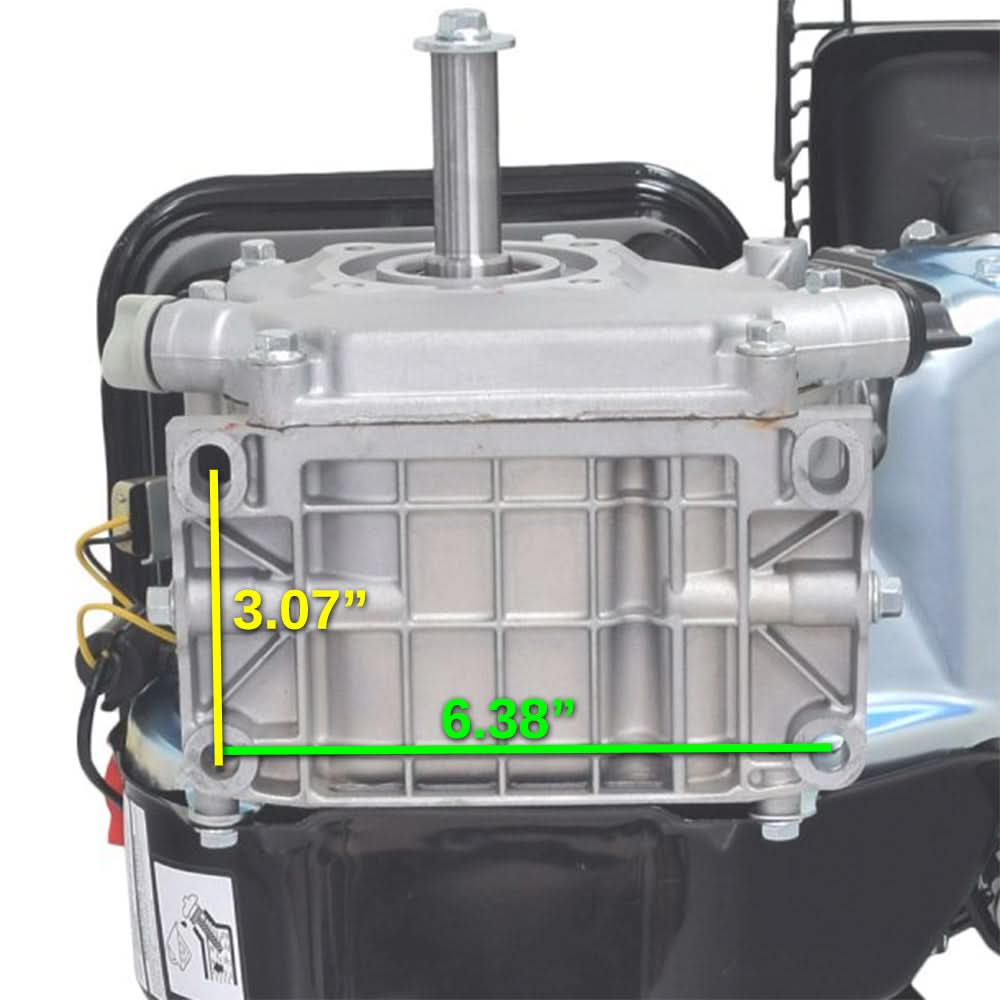

  • Note A: Our 196cc engine may not be a direct bolt-on replacement without minor modifications such as re-drilling the motor mounts so everything lines up correctly, but rest assured it can mounted without too much work.
  • Note B: The throttle mechanism on your old engine needs to be re-used and installed on this replacement engine.
  • 3/4" drive shaft
  • Includes manual pull start, air filter, carburetor, fuel tank, muffler, spark plug, & single magnet flywheel
  • Does not include charging coil
  • Replacement 196cc 6.5 Hp "Honda-clone" engine

Description

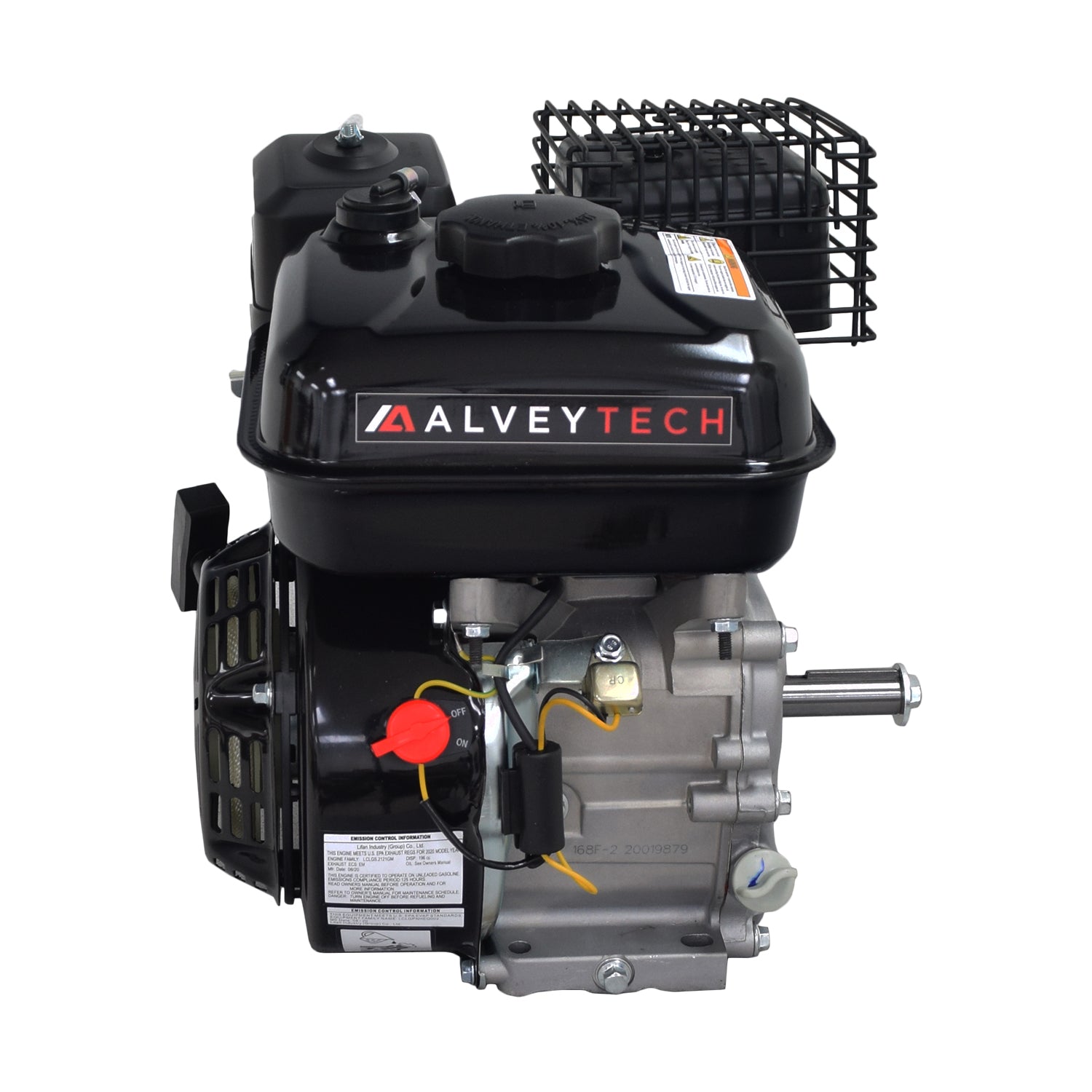

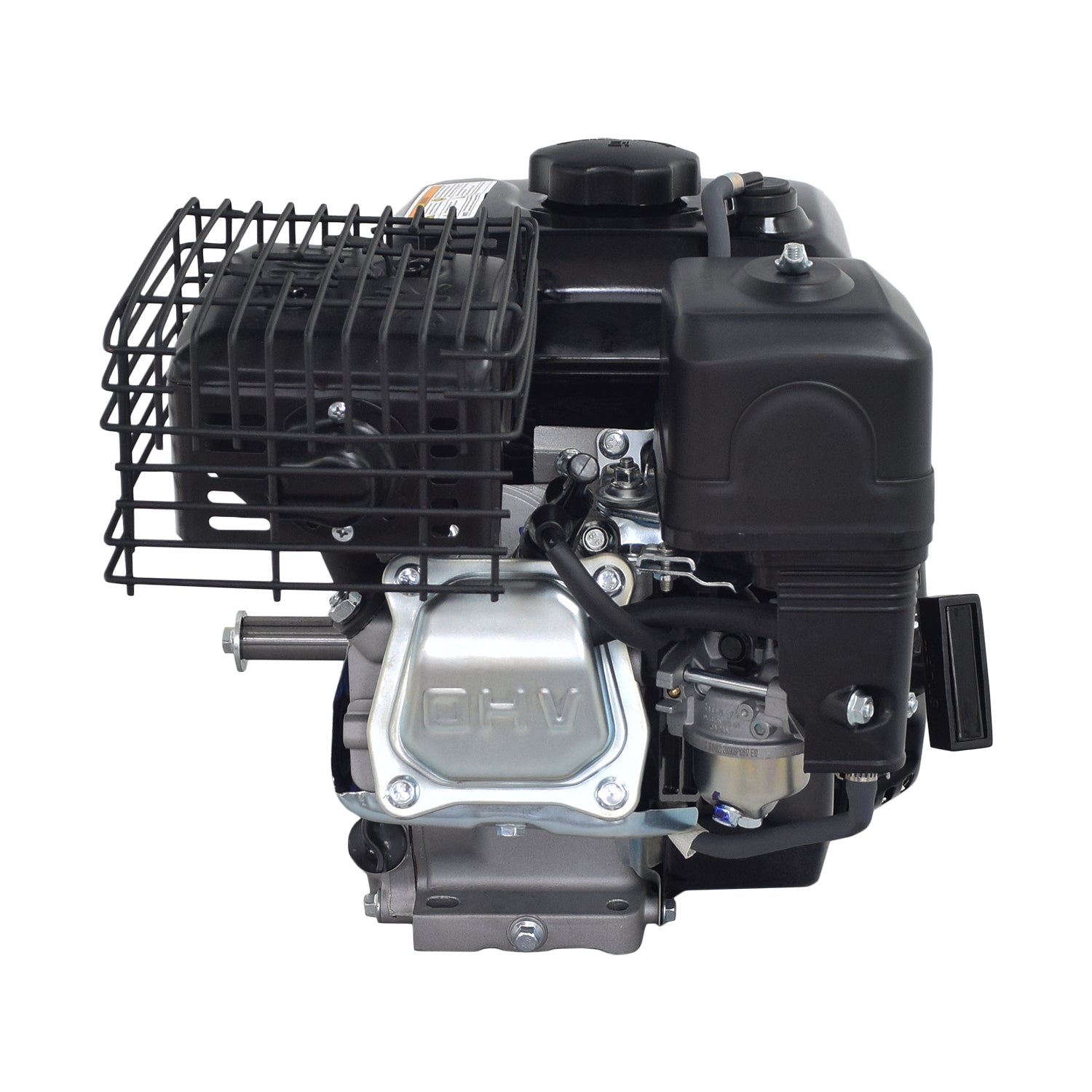

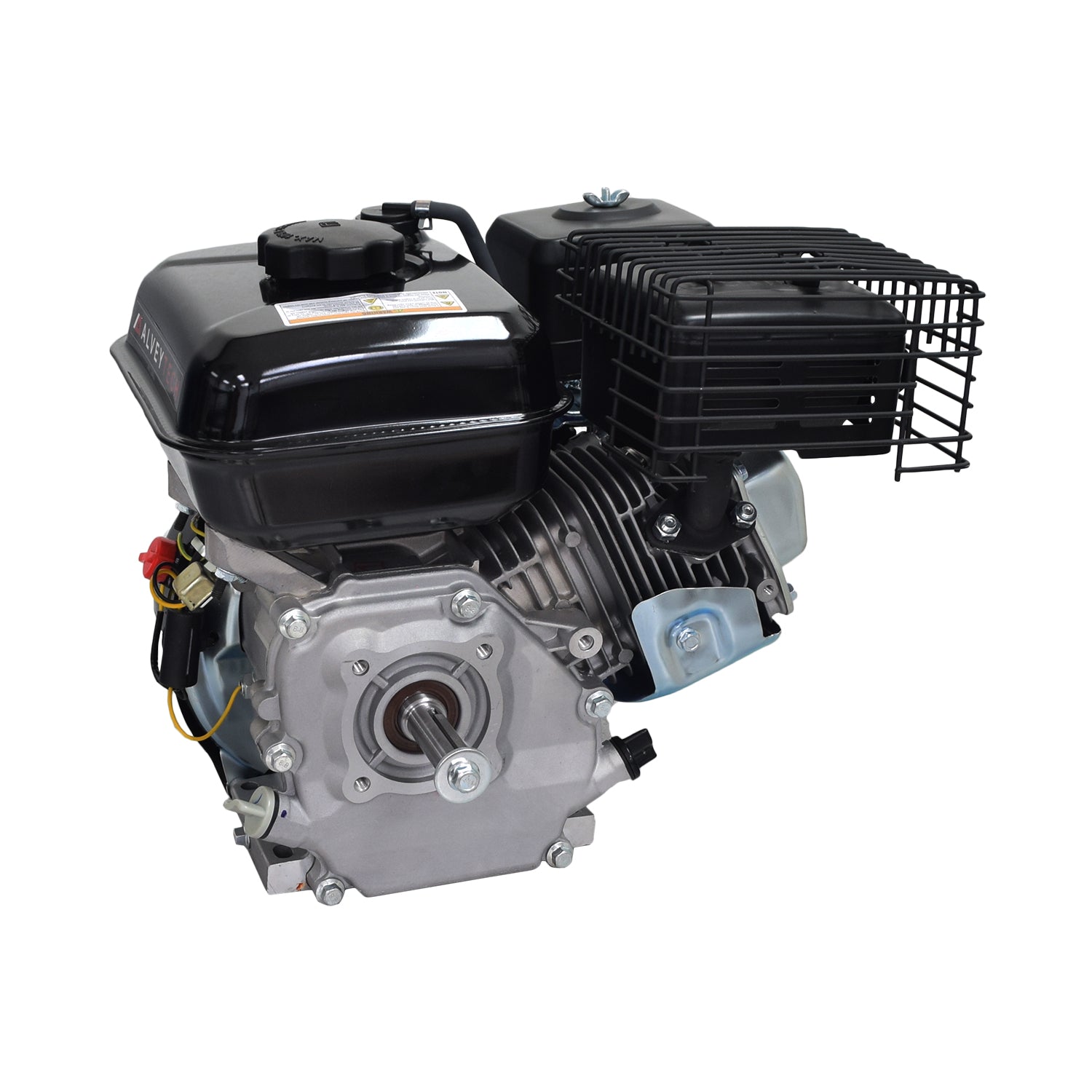

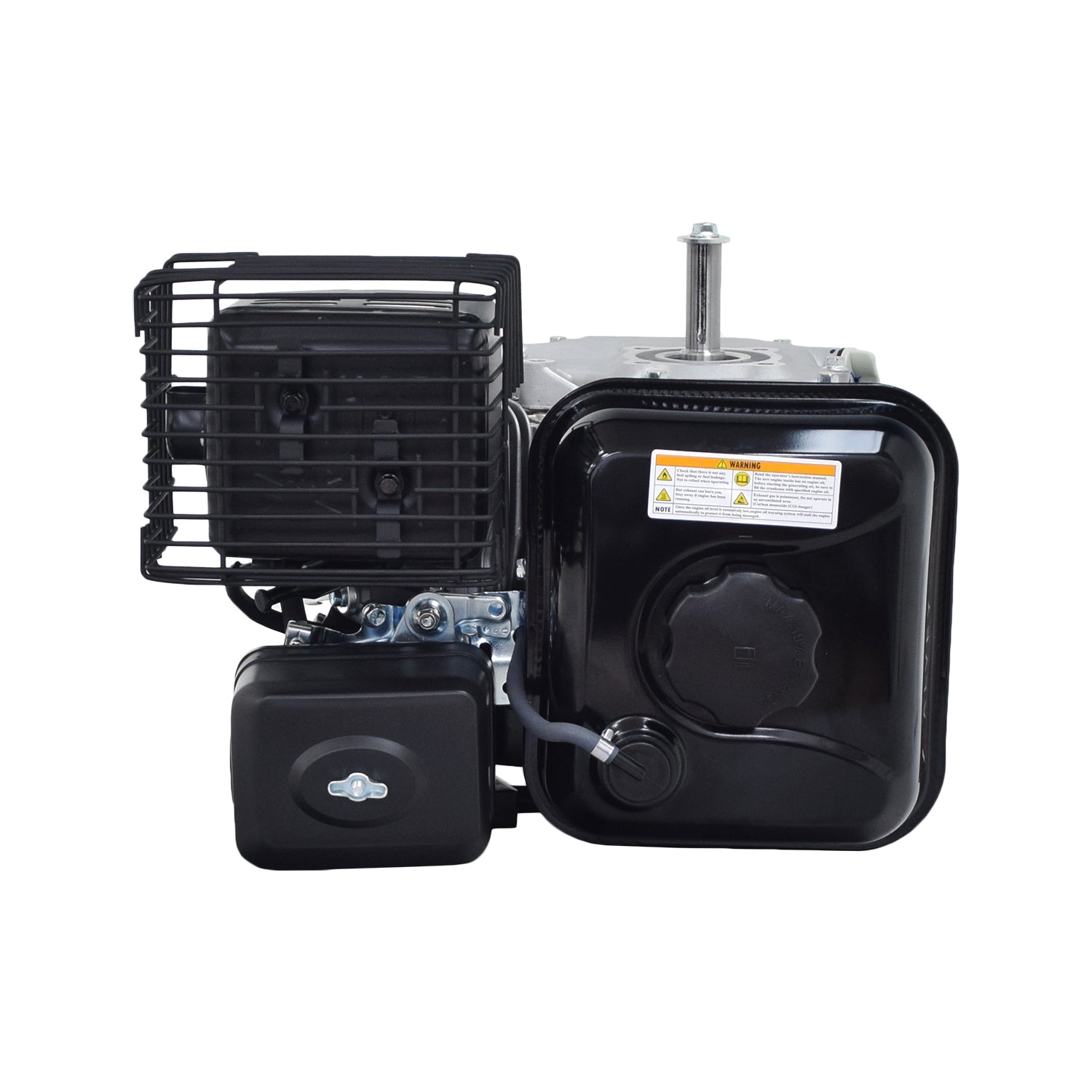

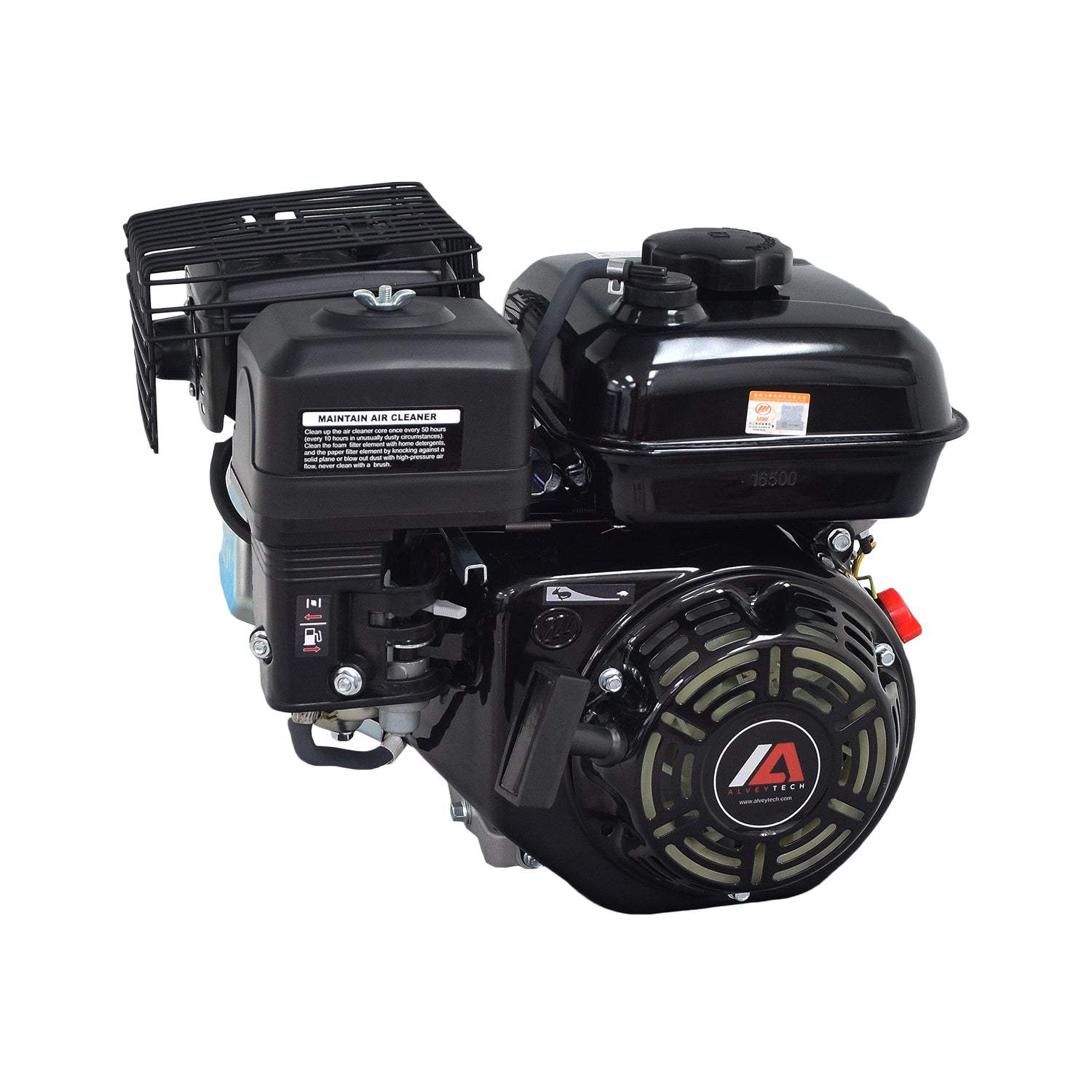

Our recommended replacement 196cc 6.5 Hp engine for the Realtree RTK200 go-kart engine is based on one of the most widely -- if not the widest -- used gasoline engines in the go-kart world today. This EPA and certified go-kart engine is a single cylinder air-cooled engine ideal for lightweight applications, including custom projects. With our convenient inventory of spare and replacement parts, there is no longer any need for the home go-kart mechanic to scrounge second-hand "junk engines" and used go-kart parts as was all too often the case in years past. This 196cc go-kart engine includes the manual pull start, air filter, carburetor, fuel tank, muffler, and spark plug as shown. Please refer to the Specifications list for more detailed information.

Note: As with any aftermarket replacement engine, this little powerhouse was designed to replace the factory-installed engines on a wide range of brands, models, and powersports types such as the Realtree RTK200. Our 196cc engine may not be a direct bolt-on replacement without a few minor modifications or re-drilling the motor mounts so that everything lines up correctly, but rest assured it can be made to work with a just little DIY elbow grease. Perhaps a little extra work to install, but it sure beats having your Realtree RTK200 go-kart sitting and rusting away by the side of the house.

In addition, the throttle mechanism on your old engine may need to be saved to be re-used and installed on this high-quality aftermarket replacement engine.

Commonly known as the Honda-clone engine in reference to its initial brand, this 6.5 Hp design revolutionized the concept of small engines for both motorsports and portable utility equipment. This EPA and certified mini bike and go-kart engine is a single cylinder air-cooled engine ideal for lightweight applications, including custom projects.

⚠ WARNING California Residents: Proposition 65 Warning

Reviews (0)

Specifications

  • Engine Type: Single cylinder air-cooled 4-stroke
  • Displacement: 196cc
  • Rated Power: 4.85KW/3600rpm (6.5 hp)
  • Max Torque: 9.76 ft-lbs/2500 rpm
  • Ignition System: Non-contact Transistorized Ignition (TCI)
  • Start Mode: Recoil pull start
  • Fuel Tank Capacity: 4.2 liters (1.11 gallons)
  • Fuel Type: 87 octane or higher
  • Engine Oil Capacity: 0.5 liters (0.53 quarts)
  • Engine Oil Type: SAE 10W30 API: SF
  • Bore: 68 mm
  • Stroke: 154.1 mm
  • Idle Speed: 1500 rpm +/- 150 rpm
  • Spark Plug: Meiya-F7RTC, Champion-CRN9YC, NGK-BPR6ES
  • Choke: Manual
  • Fuel Shutoff: Yes
  • PTO Shaft Rotation: Counter clockwise
  • Output Shaft Diameter: 3/4 inches
  • Output Shaft Length: 2-1/4 inches
  • Shaft Type: Keyed; Non-tapered
  • Dimensions (L X W X H (inches)): 15-1/4 x 12-1/4 x 13
  • Weight: 34 lbs
  • Shipping Weight: 38.25 lbs
  • Meets EPA 2010 off-road engine standards
  • Meets EPA EVAP standards
