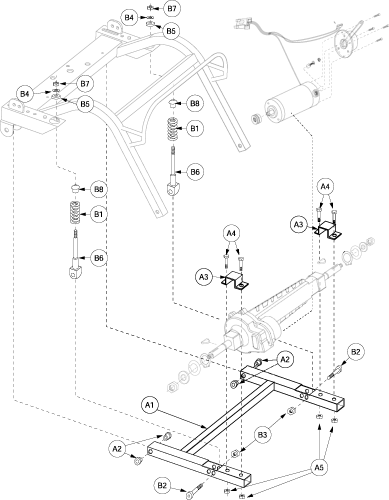

FRAME, ASSY, CROSS, AXLE, WITH SUSPENSION, 99
FRAME, REAR WELDMENT, TRAIL ARM, CELEBRITY 99
BUSHING, MOTOR MOUNT, OIL IMPREG. BRONZE, .75" FLANGE OD X .503" SHAFT OD X .378" ID X .5" DEPTH X .094" FLANGE DEPTH, A-9900-004
MOUNTING BRACKET, TRANSAXLE, CELEBRITY 99, A-9900-003
SCREW, HHCS, ZINC, 5/16-18 X 1.75", GRADE 5
SUSPENSION, ASSY, STRUT, REAR, 2 1/2", SPRING
SPRING, RAW, 2"L X .187" WIRE DIAM, COMPRESSION
BOLT, SHOULDER, 3/8" X 1.00"
WASHER, FLAT, ZINC, 1/4, 0.3125" ID X0.75" OD X 0.0625" TH
Pride Mobility
WASHER,DAMPER,POLYURETHANE,0.330" ID X 0.90" OD X 0.130" TH,5/16",A-1010-012 (WASDAMP1000)
STRUT, SPRING, 5/16-24 X 4.06"
NUT, NYLOCK, 5/16-24
BALL PIVOT, SPRING ROD, A-1200-023
