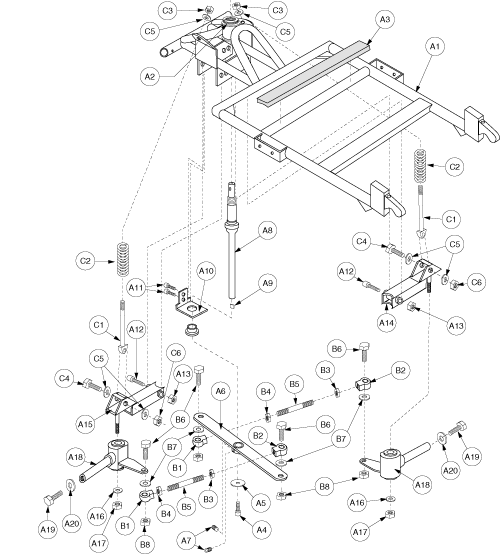

FRAME, ASSY, FRONT, STD XL
FRAME, MAIN, FRONT
Monster Scooter Parts
Headset Steering Bearing Kit for Go-Go and Pride Mobility Scooters (HDWASMB1000)
SEAT, 3/4"W X 1/2"THICK
SCREW, SHCS, ZINC, 10-32 X 0.750", GRADE 2
Pride Mobility
WASHER, FLAT,ZINC,1/4"ID X 1"OD X 1/16"T (WASSTND1010)
FRAME, ARM, CENTER STEERING, HEAVY DUTY
SCREW, SET, M6X6MM, 1.25T, G5, METRIC
FRAME, ROD, STEERING, HEAVY DUTY
KEY, STEERING , LEGEND 4 WHEEL, 1/8" SQ X 1" LONG
FRAME, GUIDE, STEERING ROD, HEAVY DUTY
SCREW, SHCS, BLACK ZINC, 1/4-20 X 0.500"
BOLT, SHOULDER, 3/8-16 X 2.50", GRADE 2
NUT, NYLOCK, ZINC, 1/4-20
AXLE, XL WELDMENT, RIGHT
AXLE, XL WELDMENT, LEFT
WASHER, FLAT, ZINC, 5/16"ID X 7/8"OD X 1/16"T
NUT, NYLOCK, 5/16-20
FRAME, ASSY, AXLE, BLOCK, B-6000-018
SCREW, HHCS, 3/8-16 X 1.00", GRADE 2
WASHER, FLAT, ZINC, 3/8"ID X 7/8"OD X 1/16"T
ROD, 5/16-24 X 4 3/4", WITH HARDWARE
TIE ROD END, 5/16"-24, LEFT HAND THREAD
TIE ROD END, 5/16-24, THREADED, RIGHT HAND
NUT, 5/16-24
NUT, 5/16-24, LEFT HAND THREAD
TIE ROD, 5/16-24 X 4 3/4"
SPRING STRUT ASSY, XL MODELS
FRAME, ASSY, STRUT, SPRING
SPRING, BLACK, XL STRUT
NUT, NYLOCK, BLACK OXIDE, 5/16-18
SCREW, HHCS, ZINC, 5/16-18 X 1.75", GRADE 5
WASHER, FLAT, ZINC, 5/16"ID X 3/4"OD X 1/16"T
NUT, NYLOCK, 5/16-18, JAM
