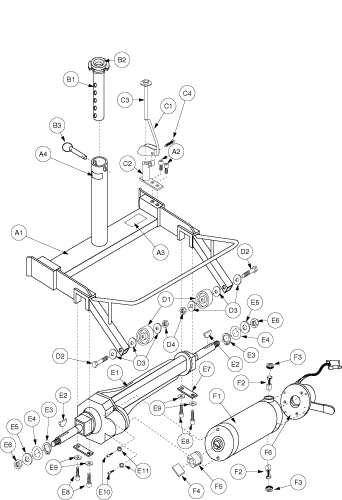

FRAME, ASSY, REAR STD XL
FRAME, MAIN, REAR
SCREW, SHCS, BLACK OXIDE, 1/4-20 X 1/2"
DECAL, SERIAL NUMBER, CELEBRITY XL
DECAL, PATENT PENDING, 3/4" X 2"
SEAT POST, ASSY, UPPER, 5 HOLE
SEAT POST, UPPER, FRAME, B-5100-009
BUSHING, SEAT PEDESTAL, C-1000-416
Monster Scooter Parts
3/8" x 3-3/8" Quick Release Seat Pin for Pride and Jazzy Rear Basket Assemblies
CAM, ASSY
FRAME, LOCKUP, LEVER
FRAME, LOCKUP, BASE
CAM NUT/WASHER
Pride Mobility
SCREW, BUTTON HEAD, .250-20 X 1.5, FT, ASTM F835, BZ (SCRASBH1007)
WHEEL, ASSY, ANTI-TIP, 2"
WHEEL, ANTI-TIP, LEGEND/CELEBRITY
SCREW, HHCS, 1/4-20 X 2.50", GRADE 5
Pride Mobility
WASHER,FLAT,ZINC,1/4"ID X 9/16"OD X 1/16"T (WASSTND1001)
NUT, NYLOCK, ZINC, 1/4-20
MOTOR, DRIVE TRAIN, XL MTR/BRAKE/TRANS
TRANSAXLE, ASSY, COMPLETE
TRANSAXLE, LONG SHAFT
Monster Scooter Parts
3/16" x 3/16" x 7/8" Axle Key (KEYSTL1006)
WASHER, ZINC, .750"ID X 1.25"OD X .030"THK, STAMPED W/KEYWAY
WASHER, FLAT, ZINC, 9/16"ID X 1"OD X 1/16"
Monster Scooter Parts
Transaxle Nut for Pride Celebrity X (SC400/SC4001/SC440/SC4401) & iRide Scooters (NUTNJAM1001)
TRANSAXLE PLATE
SCREW, SHCS, ZINC, 5/16-18 X 1.00"
WASHER, LOCK, 5/16"ID X 7/16"OD X 1/16"T
SCREW, SHCS, BLACK OXIDE, 1/4-20 X 1 1/4"
WASHER, SAE, 1/4"ID, INTERNAL TOOTH
MOTOR, BRAKE, XL
MOTOR, XL SERIERS
MOTOR, BRUSH, RELIANCE
MOTOR, BRUSH, CAP, RELIANCE
KEY, MOTOR COUPLER, 3/8" X 41/64" X 3/64", (110636YM)
MOTOR COUPLER, NYLON, (229007)
TRANSAXLE, BRAKE, RELIANCE, MAGNATEK
