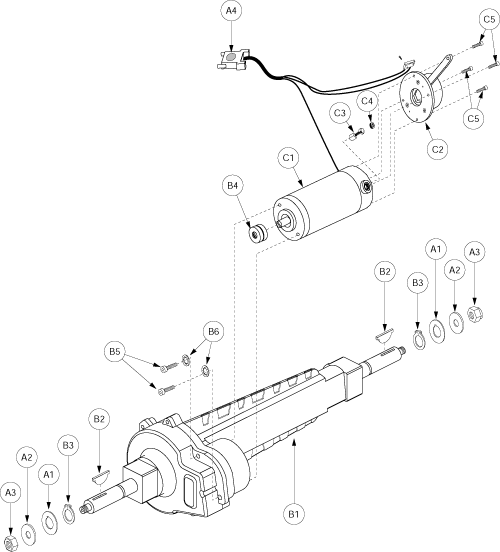

Pride Celebrity XL Heavy Duty 4-Wheel (SC445) - Drive System - Motor/Brake - Xlc-15203 - Sub


Pos.
MPN
Details
A1 - B6
DRVASMB1315

MOTOR, ASSY, ROCKWELL LONG SHAFT TRANSAXLE, REL 675 XL MOTOR 6-PIN/ID BRAKE

---
A1
WASSTND1020

WASHER, ZINC, .750"ID X 1.25"OD X .030"THK, STAMPED W/KEYWAY

---
A2
WASSTND1051

Monster Scooter Parts

1/2"x1-1/16" Flat Washer (WASSTND1051)

$0.87 $1.47
View details
A3
NUTNJAM1001
View details
A4
DECDOT1000

DECAL, ORANGE DOT, .5" CIRCLE

---
B1 - B6
DRV1027

TRANSAXLE, ASSY, RELIANCE, 675 XL, LONG SHAFT (PN1870154002)

---
B1
DRVTAXL1006

TRANSAXLE, LONG SHAFT, ROCKWELL

---
B2
KEYSTL1006

Monster Scooter Parts

3/16" x 3/16" x 7/8" Axle Key (KEYSTL1006)

$2.25 $2.99
View details
B3
RNGRTAN1002

Pride Mobility

RING, RETAINING,3/4" (RNGRTAN1002)

$3.29
View details
B4
INDPART2052

SHAFT COUPLER, ROCKWELL TRANAXLE/END BELL

---
B5
SCRSHCS1030

SCREW, SHCS, BLACK OXIDE, 1/4-20 X 2-1/2"

---
B6
WASINTH1000

WASHER, SAE, 1/4"ID, INTERNAL TOOTH

---
C1 - C5
DRVASMB1440

MOTOR, ASSY, BRAKE, RELIANCE 675XL (675-075-002)/WARNER, 6NM, (WR213A8291)

---
C1
DRVMOTR1108

MOTOR, RELIANCE 675 XL, ROCKWELL END BELL

---
C2
DRV1033

BRAKE, ASSY, WARNER, 6NM, STANDARD LOGIC, 4 WIRE, (WR213A165P1)

---
C3
DRVBRSH1001

MOTOR, BRUSH, RELIANCE

---
C4
INDPART1103

MOTOR, BRUSH, CAP, RELIANCE

---
C5
SCRSHCS1029

SCREW, SHCS, BLACK, 8-32 X 1/2"L

---
