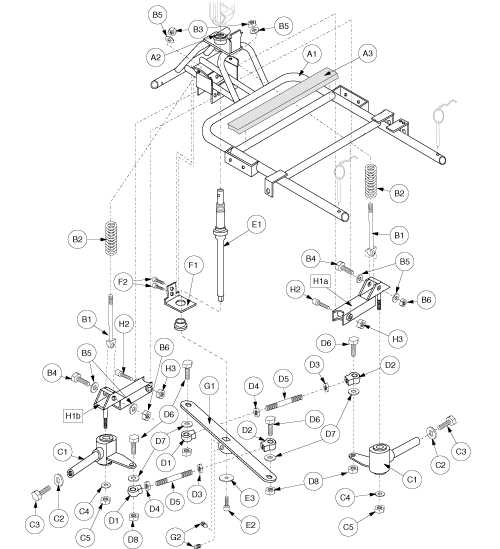

Pride Celebrity XL Heavy Duty 4-Wheel (SC445) - Front Frame - Xlc-12997 - Sub


Pos.
MPN
Details
A1 - H3
FRMASMB1833

ASSY, FRAME, FRONT, INDEPENDENT SUSPENSION, W/CAM LOCK-UP TUBES

---
A1
DWG9950E050

FRAME, FRONT, XL99, CAM LOCK

---
A2
HDWASMB1000

Monster Scooter Parts

Headset Steering Bearing Kit for Go-Go and Pride Mobility Scooters (HDWASMB1000)

$39.99
View details
A3
FOMINDV1000

SEAT, 3/4"W X 1/2"THICK

---
B1 - B6
HDWASMB1006

SPRING STRUT ASSY, XL MODELS

---
B1
BRK6016B004

FRAME, ASSY, STRUT, SPRING

---
B2
SPGPNT1000

SPRING, BLACK, XL STRUT

---
B3
NUTNYLK1017

NUT, NYLOCK, BLACK OXIDE, 5/16-18

---
B4
SCRHHCS1028

SCREW, HHCS, ZINC, 5/16-18 X 1.75", GRADE 5

---
B6
NUTNJAM1000

NUT, NYLOCK, 5/16-18, JAM

---
C1 - C5
FRMASMB1834

ASSY, SPINDLE, R/L, 5/8"OD X 2 1/2"SHAFT

---
C1
AXL6018B000

FRAME, ASSY, AXLE, BLOCK, B-6000-018

---
C2
WASWAVY1005

Pride Mobility

WASHER,WAVY,STEEL,0.64" ID X 0.865" OD (WASWAVY1005)

$3.29
View details
C3
SCRHHCS1010

Pride Mobility

SCREW,HHCS,ZINC,3/8-16 X 1.00",GRADE 5 (SCRHHCS1010)

$3.29
View details
C4
WASSTND1011

WASHER, FLAT, ZINC, 5/16"ID X 1"OD X 1/16"T

---
C5
NUTNYLK1007

Pride Mobility

NUT,NYLOCK,ZINC,3/8-16 (NUTNYLK1007)

$3.29
View details
D1 - D8
HDWASMB1003

ROD, 5/16-24 X 4 3/4", WITH HARDWARE

---
D1
TRDTRRT1001

TIE ROD END, 5/16"-24, LEFT HAND THREAD

---
D2
TRDTLRT1001

TIE ROD END, 5/16-24, THREADED, RIGHT HAND

---
D3
NUTSTD1001

NUT, 5/16-24

---
D4
NUTSTD1013

NUT, 5/16-24, LEFT HAND THREAD

---
D5
AXL9007A000

TIE ROD, 5/16-24 X 4 3/4"

---
D6
SCRHHCS1009

Pride Mobility

SCREW,HHCS,ZINC,5/16-18 X 1",GRADE 5 (SCRHHCS1009)

$3.29
View details
D7
WASSTND1005

WASHER, FLAT, ZINC, 5/16"ID X 3/4"OD X 1/16"T

---
D8
NUTNYLK1005

Monster Scooter Parts

5/16-18 Lock Nut (NUTNYLK1005)

$1.69
View details
E1 - E3
FRMASMB1836

ASSY, STEERING ROD, SQUARE END

---
E1
DWG9000B300

FRAME, ROD, STEERING, HEAVY DUTY

---
E3
WASSTND1010

Pride Mobility

WASHER, FLAT,ZINC,1/4"ID X 1"OD X 1/16"T (WASSTND1010)

$3.29
View details
F1 - F2
FRMASMB1837

ASSY, STEERING ROD GUIDE

---
F1
DWG9000B310

FRAME, GUIDE, STEERING ROD, HEAVY DUTY

---
F2
SCRSHCS1023

SCREW, SHCS, 1/4-20 X 0.50", GRADE 2

---
G1 - G2
FRMASMB1835

ASSY, STEERING ARM, CENTER

---
G1
DWG9000B320

FRAME, ARM, CENTER STEERING, HEAVY DUTY

---
G2
SCRSETS1013

Pride Mobility

SCREW, SET, CUP POINT, .250-20 X .25, ASTM F912, BO (SCRSETS1013)

$3.29
View details
H1 - H3
FRMASMB1964

ASSY, SUSPENSION ARM, RIGHT/LEFT

---
H1a - H3
FRMASMB1965

ASSY, SUSPENSION ARM, RIGHT

---
H1b - H3
FRMASMB1902

ASSY, SUSPENSION ARM, LEFT, 4 WHEEL XL

---
H1a
AXL9021B001

AXLE, XL WELDMENT, RIGHT

---
H1b
AXL9021B002

AXLE, XL WELDMENT, LEFT

---
H2
BLTASHL1063

BOLT, SHOULDER, 5/16-18 X 2"L

---
H3
NUTNYLK1024

NUT, NYLOCK, 5/16-18

---
