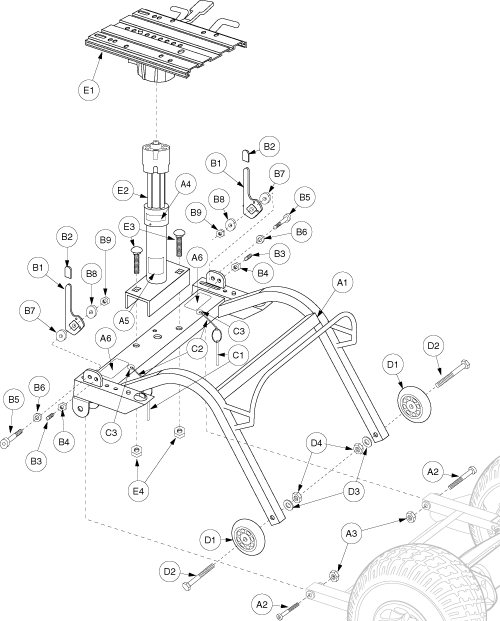

Pride Celebrity XL Heavy Duty 4-Wheel (SC445) - Rear Frame - Xlc-16180 - Sub - Main Frame

FRAME, ASSY, REAR WELDMENT, DUAL CAM, CEL XL/HURRICANE, NO SEAT POST

FRAME, REAR, XL99, WITHOUT SEAT POST

BOLT, SHOULDER, 3/8" X 1.50"

DECAL, PATENT PENDING, 3/4" X 2"

DECAL, SERIAL NUMBER, CELEBRITY XL

DECAL, WARNING-BOTH LOCK PINS

HANDLE, ASSY, CAM, PAINTED

CAM HANDLE, STYLE#9 W/ INSERT

COVER, HANDLE, CAM

BALLPLUNGER+FILM, 5/16-18X37/64

NUT, JAM, 5/16-18

Pride Mobility

BOLT,SHOULDER,1/4" X 0.50" (BLTASHL1006)

WASHER, FLAT SAE, 1/4"ID 7/16"OD 1/16"T

WASHER, NYLON, 1/4"ID X 3/4"OD X 1/8"T

WASHER, FENDER, 1/4"ID X 3/4"OD

NUT, NYLOCK, 10-24

DETENT RING, ASSY, 1/4" X 2", W/LANYARD

Monster Scooter Parts

1-1/2" Quick Release Pin

LANYARD, SS BALL CHAIN, #10X4.5"

RIVET, ALUM RIV/MAND, #44 1/8D X 1/4G

WHEEL, ASSY, ANTI-TIP, 3", SOLID COMPOSITE

Monster Scooter Parts

72mm Front Anti-Tip Wheel Assembly with Bearings for Jazzy & Pride Scooters & Power Chairs (WHLATIP1004)

SCREW, SHCS, BLACK ZINC, 10-32 X 0.500", GRADE 8

WASHER, FLAT, ZINC, 1/4, 0.3125" ID X0.75" OD X 0.0625" TH

Monster Scooter Parts

5/16-18 Lock Nut (NUTNYLK1005)

SEAT POST, ASSY, POST & PLATFORM, ADJUSTABLE, WITH GAS STRUT

SEAT FRAME, PLATFORM, GAS STRUT, W/SLIDING BASESEAT, RIGHT HANDLE RELEASE LEVER

SEAT POST, GAS STRUT

BOLT, CARRIAGE, 3/16-16 X 1 3/4", G5, PLAIN

Pride Mobility

NUT,NYLOCK,ZINC,3/8-16 (NUTNYLK1007)
