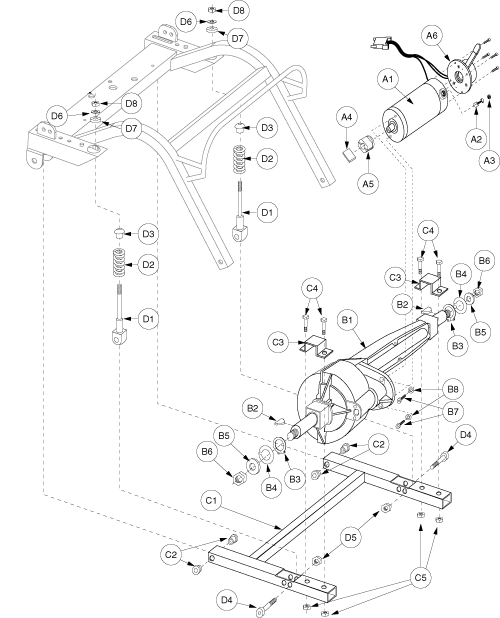

MOTOR, ASSY, DRIVE TRAIN, STX-190 LONG SHAFT, CLASSIC 3
MOTOR, ASSY, BRAKE, RELIANCE 675, UNIVERSAL END BELL, LONG CORD
MOTOR, RELIANCE 675 W/UNIVERSAL END BELL, DC
MOTOR, BRUSH, RELIANCE
MOTOR, BRUSH, CAP, RELIANCE
KEY, MOTOR COUPLER, 3/8" X 41/64" X 3/64", (110636YM)
MOTOR COUPLER, NYLON, (229007)
TRANSAXLE, BRAKE, RELIANCE, MAGNATEK
TRANSAXLE, ASSY, MODIFIED, STX-190
TRANSAXLE, ASSY, LONG SHAFT, STX190
KEYWAY
WASHER, ZINC, .750"ID X 1.25"OD X .030"THK, STAMPED W/KEYWAY
Monster Scooter Parts
1/2-20 Zinc-Plated Jam Lock Nut (NUTNJAM1018)
Pride Mobility
SCREW, SOCKET HEAD, .250-20 X .75, ASTM A574, BZ (SCRSHCS1005)
WASHER, SAE, 1/4"ID, INTERNAL TOOTH
FRAME, ASSY, CROSS, AXLE, WITH SUSPENSION, 99
FRAME, REAR WELDMENT, TRAIL ARM, CELEBRITY 99
BUSHING, MOTOR MOUNT, OIL IMPREG. BRONZE, .75" FLANGE OD X .503" SHAFT OD X .378" ID X .5" DEPTH X .094" FLANGE DEPTH, A-9900-004
MOUNTING BRACKET, TRANSAXLE, CELEBRITY 99, A-9900-003
SCREW, HHCS, BLACK OXIDE, 5/16-18 X 1 1/2", G5
NUT, NYLOCK, 5/16-18
SUSPENSION, ASSY, STRUT, REAR, 2 1/2", SPRING
SPRING, STRUT, C-8500-034
SPRING, RAW, 2.5" X .187"WIRE DIA, COMPRESSION
FRAME, PIVOT, SPRING ROD BALL
BOLT, SHOULDER, 3/8" X 1.00"
WASHER, FLAT, ZINC, 1/4, 0.3125" ID X0.75" OD X 0.0625" TH
Pride Mobility
WASHER,DAMPER,POLYURETHANE,0.330" ID X 0.90" OD X 0.130" TH,5/16",A-1010-012 (WASDAMP1000)
NUT, NYLOCK, 5/16-24
