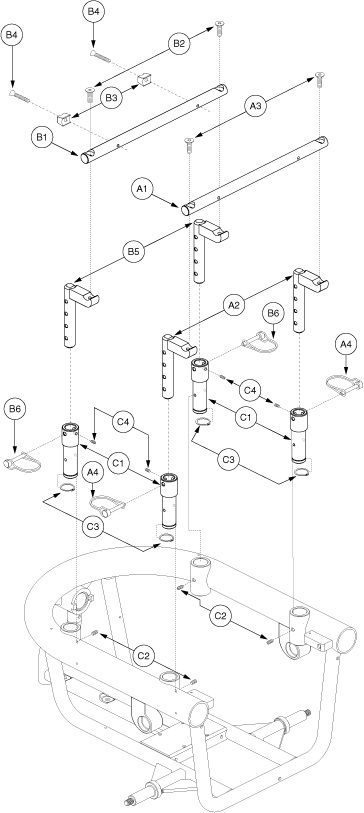

Jazzy 600 XL - Towers / Seat Mounts - Towers & Trapeze Bars
Pos.
MPN
Details
A1 - B6
FRMASMB8322

SEAT TOWER, ASSY, 13", TRAPEZE BARS, PAIR

---
A1 - A4
FRMASMB6931

SEAT TOWER, ASSY, 13'', FRONT TRAPEZE BAR

---
B1 - B6
FRMASMB6932

SEAT TOWER, ASSY, 13'', REAR TRAPEZE BAR

---
B1
DWR1056C010

TRAPEZE CROSS BAR, 19MM DIA X 350MM, HORIZONTAL, C-1056-010

---
B2
SCRSHFH1066

Pride Mobility

SCREW,SHFH,BLACK ZINC,M8-1.25 X 25MM,GRADE 10.9 (SCRSHFH1066)

$2.47 $3.29
View details
B3
DWR1054B021

STOP BLOCK, TRAPEZE CROSS BAR, B-1054-021

---
B4
SCRSHFH1065

SCREW, SHFH, BLACK ZINC, M6-1.0 X 30MM, GRADE 10.9

---
B5
DWR1056C049

TRAPEZE BAR UPRIGHT WELDMENT, 4 HOLE, W/PERCH, C-1056-049

---
B6
DWR1054B026
Seat Tower Safety Pin for Jazzy, Jet and Quantum Power Chairs: A black metal object with a round handle, essential for securing the seat to the base, ensuring safety and stability during use.

Monster Scooter Parts

Seat Tower Safety Pin for Jazzy, Jet and Quantum Power Chairs (DWR1054B026)

$13.99
View details
C1 - C4
FRMASMB6933

SEAT MOUNT CONNECTOR, ASSY, METRIC

---
C1
DWR1056C060

SEAT MOUNT CONNECTOR, C-1056-060

---
C2
SCRSETS1023

Pride Mobility

SCREW,SET,M6-1.0 X 8MM,CUP POINT (SCRSETS1023)

$2.47 $3.29
View details
C3
RNGRTAN1033

Pride Mobility

RETAINING RING,EXTERNAL,YELLOW ZINC CHROMATE,0.984" SHAFT DIA,0.926" GROOVE DIA,C-1005-008 (RNGRTAN1033)

$3.29
View details
C4
SCRSETS1026

Pride Mobility

SCREW,SET,M6-1.0 X 6MM (SCRSETS1026)

$3.29
View details
