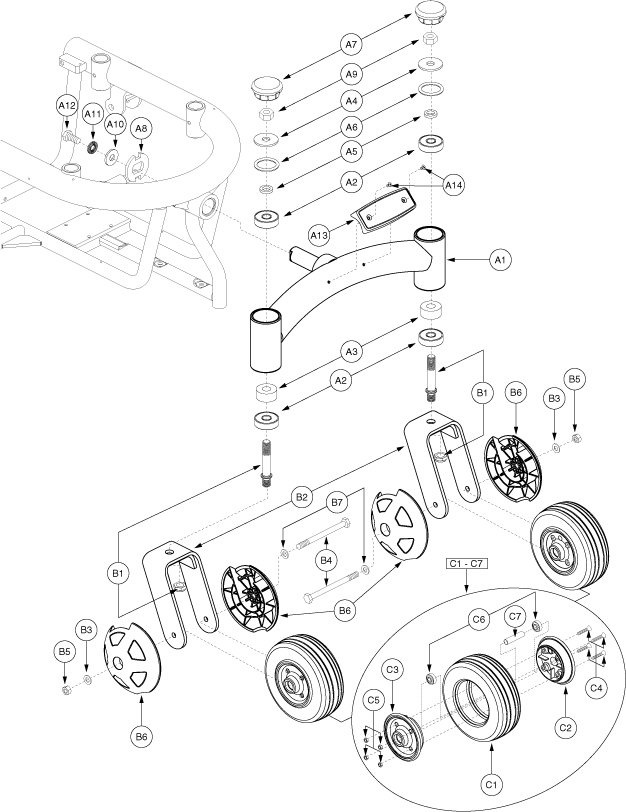

Jazzy 600 XL - Articulating Beam / Casters - Used Prior To Sn J5608607001s10


Pos.
MPN
Details
A1 - C7
FRMASMB9119

ARTICULATING BEAM, ASSY, CURVED, W/CASTER WHEELS, JAZZY600XL

---
A1 - A14
FRMASMB9120

ARTICULATING BEAM, ASSY, W/ANTI-FLUTTER KIT, JAZZY600XL

---
A1
DWR1056E049

ARTICULATING BEAM WELDMENT, CURVED, OFFSET, E-1056-049

---
A2
DWR1133A004

BEARING, BALL, 12.7MM ID X 40MM OD X 12MM TH, ABEC 3, (PEER: 6203-8-2RS), A-1133-004

---
A3
DWR1054A007

SPACER, STEEL, 14.50MM ID X 34MM OD X 15.50MM TH, A-1054-007

---
A4
DWR1133A005

WASHER, BLACK, STEEL, 13MM ID X 40MM OD X 3MM TH, A-1133-005

---
A5
DWR1054A006

SHIM, STEEL, 13MM ID X 21MM OD X 4MM TH, A-1054-006

---
A6
DWR1133A007

O-RING, NEOPRENE, 1.250" ID X 1.625" OD X 0.187" TH, (MCMASTER CARR: 94115K515-322), A-1133-007

---
A7
DWR1054C008

Monster Scooter Parts

Rear Caster Cap for Jazzy 600 XL & Jet 3 Ultra (DWR1054C008)

$4.39
View details
A8
DWR1056B002

WASHER, STOP, CASTER BEAM PIVOT, B-1056-002

---
A9
NUTNYLK1010

Pride Mobility

NUT, HEX, LOCK, .50-20, ASME B18.16.6, BZ, PVTP (NUTNYLK1010)

$2.47 $3.29
View details
A10
WASMETR1052
View details
A11
WASSTND1104
View details
A12
SCRHHCS1290

Pride Mobility

SCREW, HEX HEAD, M10X1.5 X 20, ISO 4014, CL 12.9, BZ (SCRHHCS1290)

$3.29
View details
A13
DWR1056D034

COVER, DECAL PERCH, D-1056-034

---
A14
SCRPFH1043

SCREW, PFH, BZ, M4-.7T X 10MM L

---
B1 - C7
FRMASMB7998

CASTER, ASSY, FLAT FREE, 6" WHEEL, W/FORK & COVERS, REAR/RIGHT, D-1056-032

---
B1 - C7
FRMASMB7997

CASTER, ASSY, FLAT FREE, 6" WHEEL, W/FORK & COVERS, REAR/LEFT, D-1056-029

---
B1
BRK1206A000

STEM, STEEL, W/1/2-20 NYLOCK JAM NUT, A-1200-006

---
B2
DWR1056D027

FORK, WELDMENT, CASTER, REAR, D-1056-027

---
B3
WASMETR1029

WASHER, FLAT, BLACK ZINC, 8.4MM ID X 16MM OD X 1.6MM TH

---
B4
SCRHHCS1370

Pride Mobility

SCREW, HEX HEAD, M8X1.25 X 110, ISO 4014, CL 12.9, BZ (SCRHHCS1370)

$3.29
View details
B5
NUTNYLK1080

Monster Scooter Parts

M8-1.25 Black Lock Nut (NUTNYLK1080)

$4.39
View details
B6
DWR1056C066
View details
B7
DWR1056B068
View details
C1 - C7
WHLASMB1553

WHEEL, ASSY, FLAT FREE, GRAY, 6''X 2'', PRIMO, E-1010-286

---
C1
TIRSOLI1044

WHEEL, TIRE, GRAY, 6''X 2'', SOLID, PRIMO, DURATRAP, RIBBED

---
C2
WHLRIMS1088

WHEEL, RIM, PLASTIC, 102MM X 22MM, FRONT, BOLT SIDE

---
C3
WHLRIMS1089

WHEEL, RIM, PLASTIC, 102MM X 22MM, FRONT, NUT SIDE

---
C4
SCRPFH1036

SCREW, PFH, ZINC, M6 X 1 X 30MM

---
C5
NUTNYLK1045

NUT, NYLOCK, ZINC, M6-1.0

---
C6
BRGSLV1055

BEARING, BALL,8MM ID X 22MM OD X 7MM TH,W/ EXTENDED INNER RACE 9MM,(608-2RS)

---
C7
DWR1010B050

SPACER, STEEL, BLACK ZINC, 9.0MM ID X 12.0MM OD X 46.5MM TH

---
