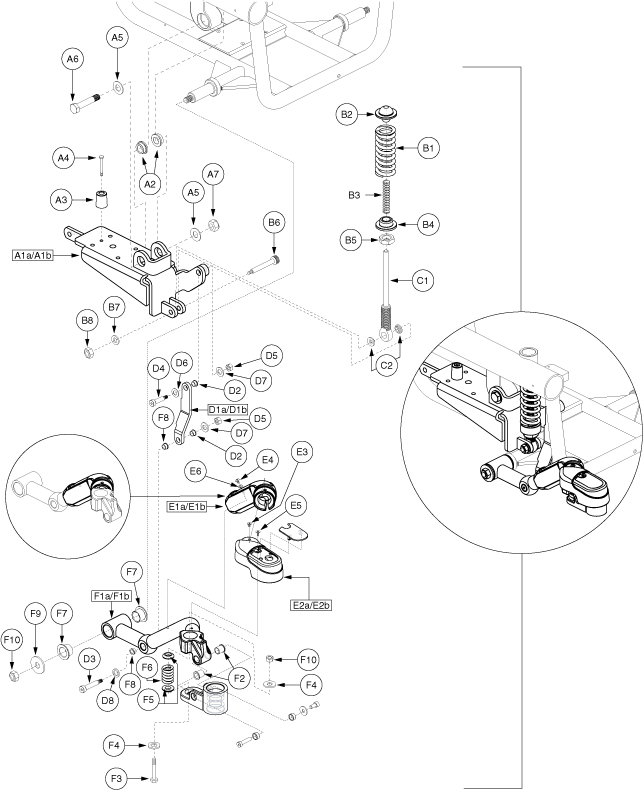

Jazzy 600 XL - Anti -Tip / Freewheel Release - Caster Arm W/ Suspension & Motor Mount - Used Prior To Sn J8508607001s10


Pos.
MPN
Details
A1a - I1a
FRMASMB9116

ANTI-TIP, ASSY, ACTIVE-TRACK, RIGHT, JAZZY600XL

---
A1b - I1b
FRMASMB9117

ANTI-TIP, ASSY, ACTIVE-TRACK, LEFT, JAZZY600XL

---
A1a - A7
FRMASMB8024

ANTI-TIP, ASSY, ACTIVE TRACK, W/MOTOR MOUNT, JAZZY600, RIGHT

---
A1b - A7
FRMASMB8025

ANTI-TIP, ASSY, ACTIVE TRACK, W/MOTOR MOUNT, JAZZY600, LEFT

---
A1a
DWR1056E044

ACTIVE TRAC/MOTOR MOUNT BRACKET WELDMENT, RIGHT, E-1056-044

---
A1b
DWR1056E043

ACTIVE TRAC/MOTOR MOUNT BRACKET WELDMENT, LEFT, E-1056-043

---
A2
DWR1056B065

BUSHING, FLANGE, BLACK ZINC, STEEL, 12MM ID X 18MM OD X 8.25MM TH X 22MM FOD X 2.75MM FTH, B-1056-065

---
A3
DWR1056B062
View details
A4
SCRSHCS1015

Pride Mobility

M6-1.0 X 30 mm Black Zinc Machine Screw (SCRSHCS1015)

$0.79
View details
A5
WASMETR1050
View details
A6
SCRHHCS1330

SCREW, HHCS, BLACK ZINC, M12-1.75 X 65MM, GRADE 12.9, C-1005-003

---
A7
NUTNYLK1066
B1 - C2
FRMASMB9118

STRUT, ASSY, FRONT SUSPENSION, JAZZY600XL, D-1056-043

---
B1
DWR1056B071

SPRING, YELLOW, 3.50" FL X 1.44" OD X 0.234" WIRE DIA X RATE: 361 LBS/IN, B-1056-071, (LEE SPRING: LHL-1500AB-04)

---
B2
DWR1056C020

BALL PIVOT, C-1056-020

---
B3
DWR1056B073

SPRING, ZINC, 2.50" FL X 0.50" OD X 0.038" WIRE DIA X RATE: 3 LBS/IN, B-1056-073, (CENTURY SPRING: 12599)

---
B4
DWR1056B072

SPRING COLLAR, ACTIVE-TRACK STRUT, B-1056-072

---
B5
NUTJAM1027

Pride Mobility

NUT, HEX JAM, M16X1.5, ISO 8675, CL 04, BZ (NUTJAM1027)

$3.29
View details
B6
BLTASHL1088

Pride Mobility

BOLT, SHOULDER, M8 X 25, ISO 7379, CL 12.9, BZ (BLTASHL1088)

$3.29
View details
B7
WASMETR1033
View details
B8
NUTNYLK1019

Monster Scooter Parts

M6-1.0 Black Lock Nut (NUTNYLK1019)

$0.99
View details
C1 - C2
FRMASMB7098

STRUT, ASSY, ACTIVE TRAC, W/BUSHING, C-1056-032

---
C1
DWR1056C013

STRUT WELDMENT, ACTIVE TRAC, C-1056-013

---
C2
DWR1056B037

BEARING, FLANGE, OIL IMPREGNATED BRONZE, 8MM ID X 12MM OD X 6MM TH X 16MM FOD X 2MM FTH, B-1056-037

---
D1a - D8
FRMASMB7990

ANTI-TIP, ASSY, TRANSFER LINK, ACTIVE-TRACK, RIGHT, B-1056-053

---
D1b - D8
FRMASMB7989

ANTI-TIP, ASSY, TRANSFER LINK, ACTIVE-TRACK, LEFT, B-1056-054

---
D1a
DWR1056C046

TRANSFER LINK, ACTIVE-TRACK, RIGHT, C-1056-046

---
D1b
DWR1056C047

TRANSFER LINK, ACTIVE-TRACK, LEFT, C-1056-047

---
D3
BLTASHL1146

BOLT, SHOULDER, BLACK ZINC, 10MM X 30MM, GRADE 12.9

---
D4
BLTASHL1150

BOLT, SHOULDER, 10MM X 25MM, CUSTOM THREAD LENGTH

---
D5
NUTNYLK1085

NUT, NYLOCK, BLACK ZINC CHROMATE, M8-1.25, GRADE 8

---
D6
WASNYLN1114

WASHER, BLACK, NYLON, 10.5MM ID X 20MM OD X 1MM TH

---
D7
WASMETR1029

WASHER, FLAT, BLACK ZINC, 8.4MM ID X 16MM OD X 1.6MM TH

---
D8
DWR1005B028

WASHER, BLACK NYLON, 10.5MM ID X 16MM OD X 2.2MM TH

---
E1a - H1a
FRMASMB8026

ANTI-TIP, ASSY, ARM, W/CASTER BARREL, WHEEL, ACTIVE-TRACK, FRONT/RIGHT

---
E1b - H1b
FRMASMB8027

ANTI-TIP, ASSY, ARM, W/CASTER BARREL, WHEEL, ACTIVE-TRACK, FRONT/LEFT

---
E1a
DWR1056E039

COVER, CASTER ARM, FOAM, RIGHT, E-1056-039

---
E1b
DWR1056E040

COVER, CASTER ARM, FOAM, LEFT, E-1056-040

---
E2a
DWR1056E037

COVER, CASTER ARM, PLASTIC, RIGHT, E-1056-037

---
E2b
DWR1056E038

COVER, CASTER ARM, PLASTIC, LEFT, E-1056-038

---
E3
SCRPPH1129

Pride Mobility

SCREW, PPH,BLACK,M4-.7 X 12MM (SCRPPH1129)

$3.29
View details
E4
SCRPPH1036

Monster Scooter Parts

M4-.7 X 8MM Black Zinc Screw (DWR1354D001)

$2.25 $2.99
View details
E5
SCRPPH1296

Pride Mobility

SCREW, PPH,BLACK ZINC,M6-1.0 X 10MM (SCRPPH1296)

$3.29
View details
E6
WASMETR1042
View details
F1a - G1a
FRMASMB7992

ANTI-TIP, ASSY, ARM, W/CASTER BARREL, ACTIVE-TRACK, FRONT/RIGHT, D-1056-023

---
F1b - G1b
FRMASMB7991

ANTI-TIP, ASSY, ARM, W/CASTER BARREL, ACTIVE-TRACK, FRONT/LEFT, D-1056-024

---
F1a
DWR1056D021

ANTI-TIP ARM WELDMENT, ACTIVE-TRACK, FRONT/RIGHT, D-1056-021

---
F1b
DWR1056D022

ANTI-TIP ARM WELDMENT, ACTIVE-TRACK, FRONT/LEFT, D-1056-022

---
F2
BRGFLNG1046

Monster Scooter Parts

Flange Bearings for Caster Assembly for the Jazzy 600 (BRGFLNG1046)

$3.29
View details
F3
SCRHHCS1444

Monster Scooter Parts

M10-1.5x50mm Caster Arm Black Screw for the Jazzy 600 (SCRHHCS1444)

$1.47
View details
