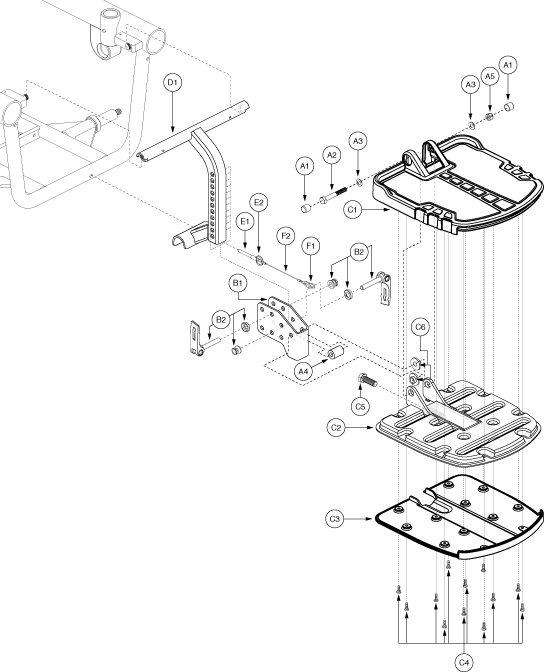

FOOT PLATFORM, ASSY, W/MOUNTING BRACKET, ATX, JAZZY600/6000, D-1201-004
CAP, VINYL, 0.50" ID, FITS 0.50" - 0.5625" OD, 0.50" H, (MCMASTER CARR: 9753K44)
Monster Scooter Parts
SCRHHCS1363 - Footrest Assembly Screw for the Jazzy 610
Pride Mobility
WASWAVY1024 - Spring Washer for the Jazzy 600 & Quantum Q600 Footrest Assembly
SPACER, BLACK ZINC, STEEL, 8.8MM ID X 18MM OD X 26.1MM TH
FOOT PLATFORM MOUNTING BRACKET, ASSY, JAZZY600, C-1056-075
FOOT PLATFORM MOUNTING BRACKET, C-1056-009
LEVER, B-1054-025
FOOT PLATFORM, ASSY, W/RUBBER MAT, ATX, E-1201-005
FOOT PLATFORM, TOP COVER, E-1201-004
FOOT PLATFORM, BASE WELDMENT, E-1201-002
FOOT PLATFORM, BOTTOM COVER, E-1201-003
Pride Mobility
SCRPPH1044 - M4 x 0.7 x 12 mm Pan Head Screw, Type H (ISO 7045, Class 4.8, Zinc)
Pride Mobility
SCRHHCS1543 - Black Zinc Hex Head Cap Screw, M10-1.5 x 45mm, Grade 10.9, Fully Threaded
BEARING, FLANGE, BLACK, DELRIN, 8.25MM ID X 13.13MM OD X 7MM TH X 24MM FOD X 2MM FTH, SELF TAP, C-1005-025
FRAME, ASSY, BATTERY ACCESS BRACKET, STANDARD, 600 SERIES
FOOT PLATFORM UPRIGHT TUBE WELDMENT, D-1056-004
FOOTREST PIN & LANYARD, ASSY, JAZZY600, C-1056-028
QUICK RELEASE PIN, SHOULDER STYLE-SELF LOCKING, 6MM X 38.10MM GRIP LENGTH, B-1133-045
RING, 0.94"OD X 0.61" WIRE DIA, 1-3/4 TURNS, B-1133-044
LANYARD, NYLON COATED WIRE ROPE, NATURAL RUBBER, LOOP END, LOOP W/TAB, 6"LONG, C-1056-027
LANYARD TAB, B-1056-027
LANYARD WIRE, 5.5''L, W/LOOPED ENDS
