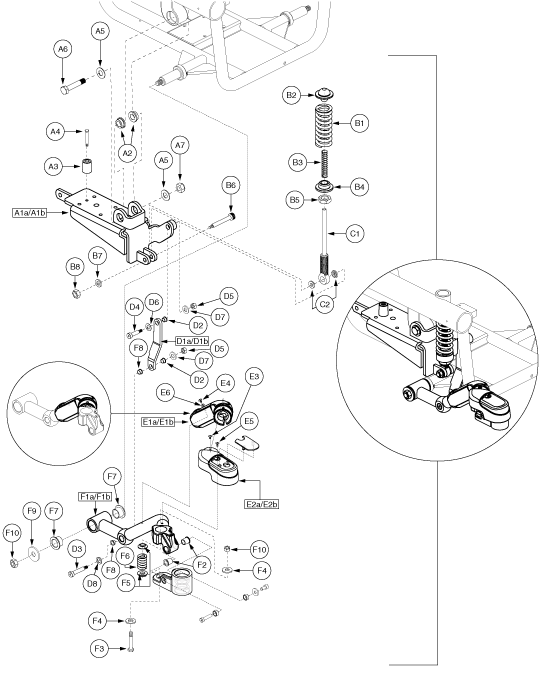

Jazzy 600 XL - Anti -Tip / Freewheel Release - Caster Arm W/ Suspension & Motor Mount - Used On Or After Sn J8508607001s10

ANTI-TIP, ASSY, ACTIVE-TRACK, RIGHT, JAZZY600XL

ANTI-TIP, ASSY, ACTIVE-TRACK, LEFT, JAZZY600XL

ANTI-TIP, ASSY, ACTIVE TRACK, W/MOTOR MOUNT, JAZZY600, RIGHT

ANTI-TIP, ASSY, ACTIVE TRACK, W/MOTOR MOUNT, JAZZY600, LEFT

ACTIVE TRAC/MOTOR MOUNT BRACKET WELDMENT, RIGHT, E-1056-044

ACTIVE TRAC/MOTOR MOUNT BRACKET WELDMENT, LEFT, E-1056-043

BUSHING, FLANGE, BLACK ZINC, STEEL, 12MM ID X 18MM OD X 8.25MM TH X 22MM FOD X 2.75MM FTH, B-1056-065

Pride Mobility

DWR1056B062 - Black Rubber Bumper, 6.5mm ID x 25mm OD x 32mm, Shore 90 A for Quantum Q6 Edge HD, Q6 Edge Z & 6000 Power Chairs

Pride Mobility

SCRSHCS1015 - M6-1.0 X 30 mm Black Zinc Machine Screw

Pride Mobility

WASMETR1050 - Black Zinc Flat Washer, 13 ID x 24 OD x 2.5 Thick, ISO 7089-12-200 HV (Use WASMETR1032) for Pride Jazzy 623 Power Chairs & Quantum 6000 & 600 Power Chairs

SCREW, HHCS, BLACK ZINC, M12-1.75 X 65MM, GRADE 12.9, C-1005-003

Monster Scooter Parts

NUTNYLK1066 - M12-1.25 Grade 8 Black Zinc Nut for the Pride Hurricane (PMV5001), Pride Legend XL (SC3450), and Jazzy 600 XL

STRUT, ASSY, FRONT SUSPENSION, JAZZY600XL, D-1056-043

SPRING, YELLOW, 3.50" FL X 1.44" OD X 0.234" WIRE DIA X RATE: 361 LBS/IN, B-1056-071, (LEE SPRING: LHL-1500AB-04)

BALL PIVOT, C-1056-020

SPRING, ZINC, 2.50" FL X 0.50" OD X 0.038" WIRE DIA X RATE: 3 LBS/IN, B-1056-073, (CENTURY SPRING: 12599)

SPRING COLLAR, ACTIVE-TRACK STRUT, B-1056-072

Pride Mobility

NUTJAM1027 - M16 x 1.5 Hex Jam Nut

Pride Mobility

BLTASHL1088 - Black Zinc Shoulder Bolt, M8 x 25, ISO 7379, CL 12.9 for Quantum 600 Power Chairs

Pride Mobility

WASMETR1033 - Black Zinc Flat Washer, 6.4 ID x 12 OD x 1.6 Thick, ISO 7089-6-200 HV (Use WASSTND1097) for Quantum 6000 & 600 Power Chairs

Monster Scooter Parts

NUTNYLK1019 - M6-1.0 Black Lock Nut

STRUT, ASSY, ACTIVE TRAC, W/BUSHING, C-1056-032

STRUT WELDMENT, ACTIVE TRAC, C-1056-013

BEARING, FLANGE, OIL IMPREGNATED BRONZE, 8MM ID X 12MM OD X 6MM TH X 16MM FOD X 2MM FTH, B-1056-037

ANTI-TIP, ASSY, TRANSFER LINK, ACTIVE-TRACK, RIGHT, B-1056-053

ANTI-TIP, ASSY, TRANSFER LINK, ACTIVE-TRACK, LEFT, B-1056-054

TRANSFER LINK, ACTIVE-TRACK, RIGHT, C-1056-046

TRANSFER LINK, ACTIVE-TRACK, LEFT, C-1056-047

BOLT, SHOULDER, BLACK ZINC, 10MM X 30MM, GRADE 12.9

BOLT, SHOULDER, 10MM X 25MM, CUSTOM THREAD LENGTH

NUT, NYLOCK, BLACK ZINC CHROMATE, M8-1.25, GRADE 8

WASHER, BLACK, NYLON, 10.5MM ID X 20MM OD X 1MM TH

WASHER, FLAT, BLACK ZINC, 8.4MM ID X 16MM OD X 1.6MM TH

WASHER, BLACK NYLON, 10.5MM ID X 16MM OD X 2.2MM TH

ANTI-TIP, ASSY, ARM, W/CASTER BARREL, WHEEL, ACTIVE-TRACK, FRONT/RIGHT

ANTI-TIP, ASSY, ARM, W/CASTER BARREL, WHEEL, ACTIVE-TRACK, FRONT/LEFT

COVER, CASTER ARM, FOAM, RIGHT, E-1056-039

COVER, CASTER ARM, FOAM, LEFT, E-1056-040

COVER, CASTER ARM, PLASTIC, RIGHT, E-1056-037

COVER, CASTER ARM, PLASTIC, LEFT, E-1056-038

Pride Mobility

SCRPPH1129 - Black PPH Screw, M4-.7 x 12mm for Quantum 600 Power Chairs

Monster Scooter Parts

M4-.7 X 8MM Black Zinc Screw (DWR1354D001)

Pride Mobility

SCRPPH1296 - Black Zinc PPH Screw, M6-1.0 x 10mm for Quantum 600 Power Chairs

Pride Mobility

WASMETR1042 - Black Steel Flat Washer, 4.3 ID x 12 OD x 1 Thick, ISO 7093-1 (GB/T 96.1) for Quantum 600, R4000 & R4400 & R44 Power Chairs

ANTI-TIP, ASSY, ARM, REINFORCED, W/CASTER BARREL, ACTIVE-TRACK, FRONT/RIGHT, JAZZY/QUANTUM600, D-1056-046

ANTI-TIP, ASSY, ARM, REINFORCED, W/CASTER BARREL, ACTIVE-TRACK, FRONT/LEFT, JAZZY/QUANTUM600, D-1056-045

ANTI-TIP ARM WELDMENT, ACTIVE-TRACK, FRONT/RIGHT, D-1056-021

ANTI-TIP ARM WELDMENT, ACTIVE-TRACK, FRONT/LEFT, D-1056-022

Monster Scooter Parts

BRGFLNG1046 - Flange Bearings for Caster Assembly for the Jazzy 600

Monster Scooter Parts

SCRHHCS1444 - M10-1.5x50mm Caster Arm Black Screw for the Jazzy 600
