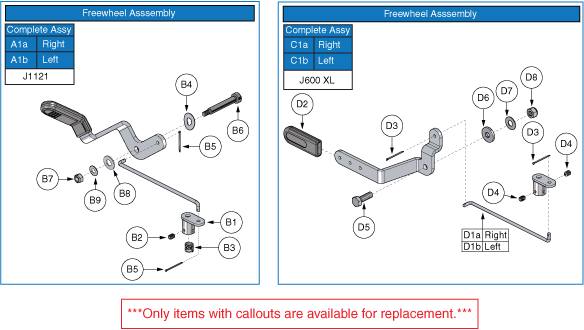

Jazzy 600 XL - Motors / Freewheel - Freewheel Levers


Pos.
MPN
Details
A1a
FRMASMB5479

FREEWHEEL, ASSY, RELEASE LEVER, JAZZY1101/1121, RIGHT

---
A1b
FRMASMB5478

FREEWHEEL, ASSY, RELEASE LEVER, JAZZY1101/1121, LEFT

---
B1
DWR1114B014

FREEWHEEL, MOTOR RELEASE WELDMENT, JAZZY1113ATS

---
B2
SCRSETS1023

Pride Mobility

SCREW,SET,M6-1.0 X 8MM,CUP POINT (SCRSETS1023)

$2.47 $3.29
View details
B3
SPGRAW1046

SPRING, 8MM ID X 10MM OD X 10MM TH, FREEWHEEL LEVER

---
B4
WASWAVY1008
View details
B6
BLTASHL1111

BOLT, SHOULDER, 8MM X 45MM, GRADE 12.9, C-1056-025

---
B7
NUTNYLK1019

Monster Scooter Parts

M6-1.0 Black Lock Nut (NUTNYLK1019)

$0.99
View details
B8
WASSTND1100

WASHER, FLAT, ZINC, 6MM ID X 14MM OD X 1.5MM TH

---
B9
WASNYLN1089

WASHER, NYLON, 8MM ID X 19MM OD X 1MM TH

---
C1a
FRMASMB6925

FREEWHEEL, ASSY, RELEASE, JAZZY600, RIGHT

---
C1b
FRMASMB6926

FREEWHEEL, ASSY, RELEASE, JAZZY600, LEFT

---
D1a
DWR1056B025

FREEWHEEL, RELEASE ROD, RIGHT, B1056-025

---
D1b
DWR1056B011

FREEWHEEL, RELEASE ROD, LEFT, B1056-011

---
D2
DWR1054B034

FREEWHEEL, MOTOR RELEASE LEVER WELDMENT, B1054-034

---
D3
PINSOTR1000

Monster Scooter Parts

Freewheel Assembly Pin for the Jazzy 1121 (PINSOTR1000)

$3.29
View details
D4
SCRSETS1102

Monster Scooter Parts

M6-1.0x6 mm Set Screw (SCRSETS1102)

$0.96 $1.49
View details
D5
SCRHHCS1296
View details
D6
WASNYLN1066

Monster Scooter Parts

Footrest Platform Black Washer for the Jazzy 600 (WASNYLN1066)

$1.11 $1.47
View details
D7
WASNYLN1040
View details
D8
NUTNYLK1011

Monster Scooter Parts

M8-1.25x7.65 Black Lock Nut (NUTNYLK1011)

$0.18 $0.33
View details
