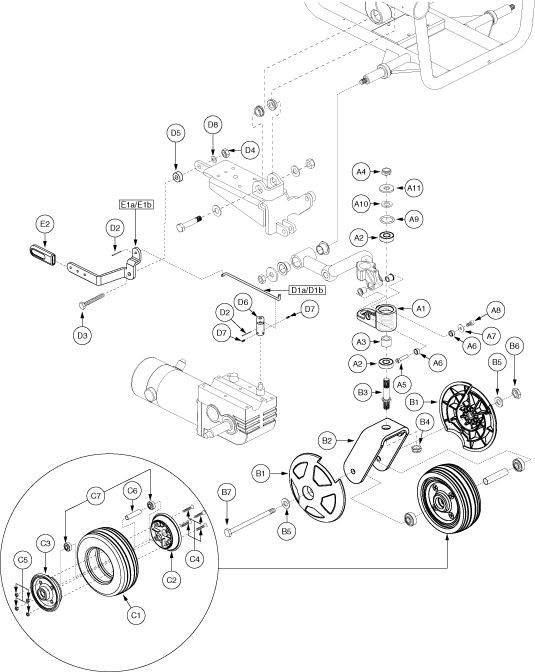

Jazzy 600 XL - Anti -Tip / Freewheel Release - Caster Barrel W/ Forks, Wheels & Freewheel Levers - Used Prior To Sn J8508607001s10

CASTER, ASSY, BARREL, ACTIVE-TRACK, FRONT/RIGHT, C-1056-043

CASTER, ASSY, BARREL, ACTIVE-TRACK, FRONT/LEFT, C-1056-044

CASTER, BARREL WELDMENT, FRONT, C1056-041

SPACER, STEEL, 14MM ID X 21MM OD X 15MM TH, B-1056-047

BEARING, SLEEVE, 0.50"ID X 32MM OD X 0.394"TH, A-1101-011, (NGK: 6201-2RS-8)

PIVOT SHAFT, CASTER SUSPENSION, FRONT

BUSHING, SLEEVE, DELRIN, 10MM ID X 13MM OD X 6MM TH

Monster Scooter Parts

6.4mm IDx18mm ODx1.6mm Thick Steel Flat Black Washer for Front Caster Wheel for the Jazzy 600 (WASMETR1083)

Monster Scooter Parts

M6-1.0x12 mm Black Allen Socket Machine Bolt (SCRSHCS1169)

O-RING, NEOPRENE, 25.4MM ID X 31.8MM OD, A-1101-013

SHIM, BRIGHT ZINC, STEEL, 13MM ID X 24MM OD X 2MM TH, A-1101-001

SPACER, BRIGHT ZINC, STEEL, 13MM ID X 31.5MM OD X 3.18MM TH, A-1101-003

CASTER, ASSY, FLAT FREE, 5" WHEEL, W/FORK & COVERS, FRONT/RIGHT, E-1056-036

CASTER, ASSY, FLAT FREE, 5" WHEEL, W/FORK & COVERS, FRONT/LEFT, E-1056-045

COVER, CASTER BALL, 5" WHEEL

FORK, WELDMENT, CASTER, FRONT

STEM, CASTER PIVOT, 1/2-20 X 3.00"

Monster Scooter Parts

Articulating Rear Beam Assembly Nut for the Jet 3 and Jazzy Select 6 (NUTNJAM1018)

WASHER, FLAT, BLACK ZINC, 8.4MM ID X 16MM OD X 1.6MM TH

Monster Scooter Parts

M8-1.25x6.5 Black Lock Nut (NUTNJAM1020)

Pride Mobility

SCREW,HHCS,BLACK ZINC,M8-1.25 X 80MM,GRADE 12.9 (SCRHHCS1384)

WHEEL, ASSY, CASTER, FLAT FREE, 5", W/BEARINGS & SPACER

TIRE, FLAT FREE, GRAY, 5" X 1.75", SOLID, PRIMO

WHEEL, RIM, PLASTIC, 77MM X 22MM, FRONT, BOLT SIDE

WHEEL, RIM, PLASTIC, 77MM X 22MM, FRONT, NUT SIDE

SCREW, PFH, ZINC, M6 X 1 X 30MM

NUT, NYLOCK, ZINC, M6-1.0

SPACER, STEEL, BLACK ZINC, 9.0MM ID X 12.0MM OD X 46.5MM TH

BEARING, BALL,8MM ID X 22MM OD X 7MM TH,W/ EXTENDED INNER RACE 9MM,(608-2RS)

FREEWHEEL, ASSY, RELEASE, JAZZY600, RIGHT

FREEWHEEL, ASSY, RELEASE, JAZZY600, LEFT

FREEWHEEL, RELEASE ROD, RIGHT, B1056-025

FREEWHEEL, RELEASE ROD, LEFT, B1056-011

Monster Scooter Parts

Freewheel Assembly Pin for the Jazzy 1121 (PINSOTR1000)

Pride Mobility

SCREW, HEX HEAD, M8X1.25 X 25, ISO 4017, CL 10.9, BZ, PVTP (SCRHHCS1296)

Monster Scooter Parts

M8-1.25x7.65 Black Lock Nut (NUTNYLK1011)

Monster Scooter Parts

Footrest Platform Black Washer for the Jazzy 600 (WASNYLN1066)

FREEWHEEL, MOTOR RELEASE LEVER WELDMENT, B1054-034

Monster Scooter Parts

M6-1.0x6 mm Set Screw (SCRSETS1102)

Pride Mobility

WASHER, 0.343 ID X 0.75 OD X 0.031 THK, INCH, NYLON, BLACK (WASNYLN1040)

FREEWHEEL, ASSY, RELEASE LEVER, RIGHT, W/COVER, JAZZY600

FREEWHEEL, ASSY, RELEASE LEVER, LEFT, W/COVER, JAZZY600

FREEWHEEL, LEVER, 5MM TH, RIGHT, D-1056-035

FREEWHEEL, LEVER, 5MM TH, LEFT, D-1056-036

COVER, FREEWHEEL RELEASE LEVER, BLACK
