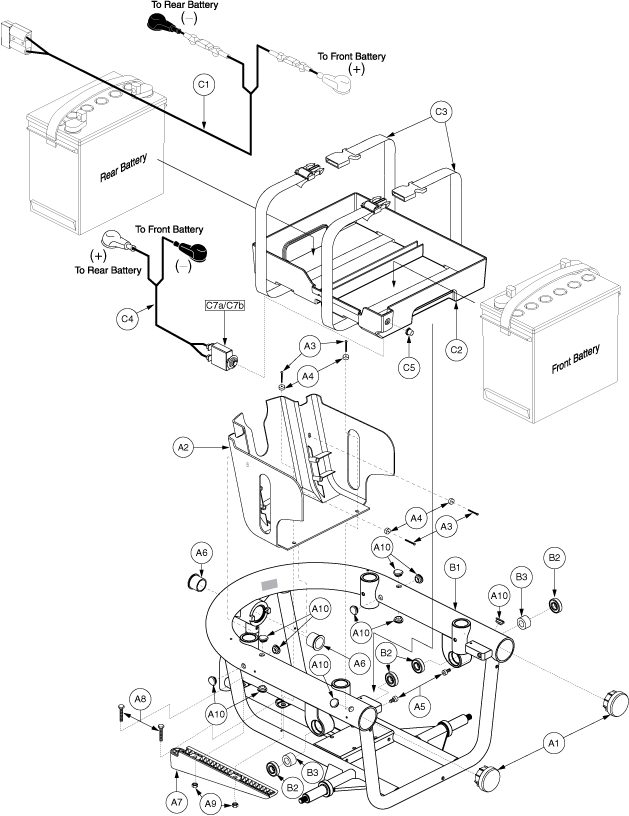

Jazzy 600 - Main Frame / Battery Tray - Main Frame

FRAME, ASSY, MAIN W/NOTCHED BELLY PAN, JAZZY600/QUANTUM600

MAIN TUBE CAP, C-1056-017

SHROUD, BELLY PAN, NOTCHED, E-1056-062

Pride Mobility

SCRPPH1153 - M4-.7x20 mm Pan Head Phillips Machine Screw

SPACER, BLACK, NYLON, 4MM ID X 12.7MM OD X 8MM TH, A-1054-011

Pride Mobility

SCRSHCS1122 - Black Zinc Socket Head Screw, M8 x 1.25 x 16, ISO 4762, CL 12.9 for Quantum 600 Power Chairs

BUSHING, FLANGE, OIL IMPREGNATED BRONZE, 25.05MM ID X 30.035MM OD X 20MM TH X 34.535MM FOD X 2.5MM FTH, B1056-006

BUMPER, SKID BAR, D-1056-020

SCREW, HHCS, BLACK ZINC, M8-1.25 X 35MM, GRADE 10.9

Monster Scooter Parts

NUTNYLK1011 - M8-1.25x7.65 Black Lock Nut

COVER, FRAME PLUG, BLACK, TPE, B-1506-012

FRAME, ASSY, MAIN, W/MOTOR MOUNT BEARINGS, JAZZY600

FRAME, WELDMENT, MAIN, VERSION 2, E-1056-076

Pride Mobility

DWR1101A019 - Ball Bearing, 12 ID x 28 OD x 8 Thick, Double Shield (6001-2Z) for Quantum 600 Power Chairs

BEARING, SLEEVE, ZINC, 13MM ID X 23MM OD X 13.5MM TH, B-1056-076

BATTERY, ASSY, TRAY, LARGE, PLASTIC, W/50 AMP CIRCUIT BREAKER, JAZZY600

BATTERY, ASSY, TRAY, PLASTIC, LARGE, W/40 AMP CIRCUIT BREAKER, JAZZY600

Pride Mobility

DWR1054H003 - Battery to Controller Cable Assembly for Jazzy & Quantum Power Chairs

COVER, BATTERY TRAY, E-1056-009

STRAP, BATTERY, BLACK, 46''L, THIN BUCKLE

Pride Mobility

DWR1054H001 - Positive Battery Terminal to Circuit Breaker Jumper for Jazzy & Quantum Power Chairs

Monster Scooter Parts

INDPART2148 - Circuit Breaker Cover for the Pride Revo (SC64)

Pride Mobility

PLSTIE1001 - Black Plastic Tiedown Strap, 95 LG, Spec No. 2106329-1.5-22-130-V2 for Quantum 4Front 2, 4Front & 6000 Power Chairs

Monster Scooter Parts

50 Amp (50A) 125/250VAC / 50VDC Push-Button Reset Circuit Breaker (LRB402307)

Monster Scooter Parts

40 Amp Circuit Breaker with Straight Screw Terminals (Standard) (ELECBRK1029)
