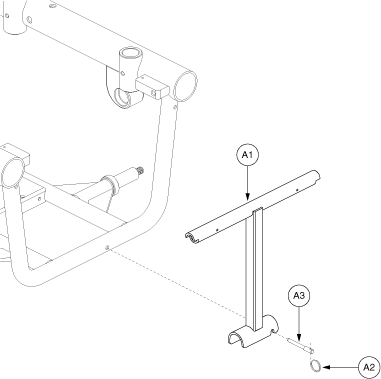

Jazzy 600 - Main Frame / Battery Tray - Battery Access Bracket, Upright Tube For Afp


Pos.
MPN
Details
A1 - A3
FRMASMB11181

FRAME, ASSY, BATTERY ACCESS BRACKET, ARTICULATING FOOT PLATFORM, JAZZY/QUANTUM600

---
A1
DWR1056D037

FRAME, FRONT DOOR UPRIGHT TUBE WELDMENT, D-1056-037

---
A2
DWR1133B044

RING, 0.94"OD X 0.61" WIRE DIA, 1-3/4 TURNS, B-1133-044

---
A3
DWR1133B045

QUICK RELEASE PIN, SHOULDER STYLE-SELF LOCKING, 6MM X 38.10MM GRIP LENGTH, B-1133-045

---
