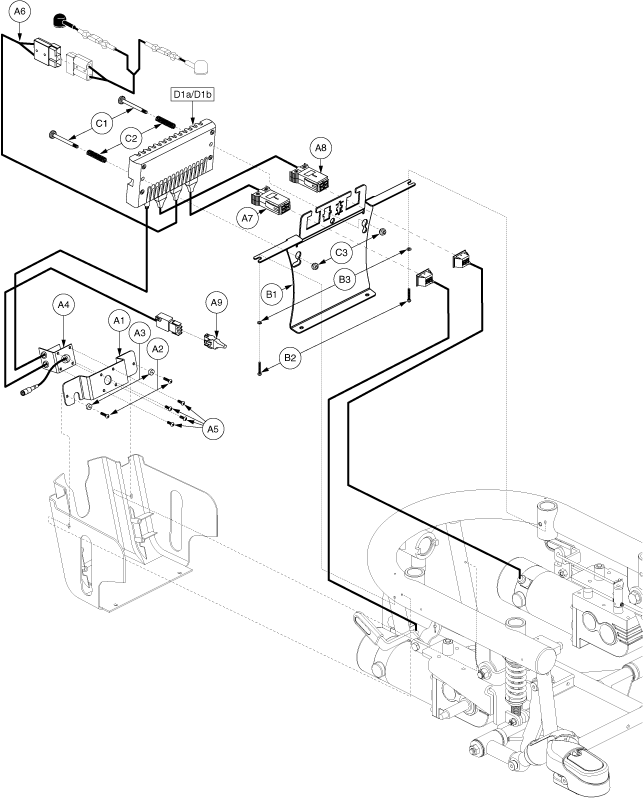

POWER INTERFACE MOUNTING BRACKET, REMOTE PLUS
Monster Scooter Parts
M4-.7x10 mm Black Pan Head Machine Screw (SCRPPH1163/SCRPPH1050)
SPACER, BLACK, NYLON, 4MM ID X 12.7MM OD X 8MM TH, A-1054-011
ELECTRONIC, HARNESS, POWER INTERFACE/CHARGER CABLE, REMOTE PLUS, RIGHT, H-1010-051
Pride Mobility
SCREW,PPH-THREAD CUTTING,BLACK ZINC,6-32 X 0.375",TYPE F (SCRPPH1032)
ELECTRONIC, HARNESS, BATTERY CABLE, REMOTE PLUS, H-1054-007
ELECTRONIC, HARNESS, REMOTE PLUS, MOTOR, 1113, RIGHT
ELECTRONIC, HARNESS, REMOTE PLUS, MOTOR, 1113, LEFT
Monster Scooter Parts
Offboard Adapter Plug for the Jazzy 1113 (HARUSHD2080)
MOUNTING BRACKET, ASSY, POWER MODULE W/HARDWARE, JAZZY600
POWER MODULE MOUNTING BRACKET, E-1056-018
SCREW, PAN HEAD, TYPE H, M4X0.7 X 10, FT, ISO 7045, CL 4.8, BZ (USE SCRPPH1163)
Pride Mobility
WASHER, FLAT, 4.3 ID X 12 OD X 1 THK, ISO 7093-1 (GB/T 96.1), STL, BLK (WASMETR1042)
QUICK RELEASE BUTTON, ASSY, REMOTE PLUS POWER MODULE, JAZZYULTRA
POWER MODULE SCREW, ZINC, M5-.8 X 55MM, B-1054-040
SPRING, COMPRESSION, BRIGHT ZINC, 1.50" FL X 0.30'' OD X 0.038" WIRE DIA X RATE:13.5LBS/IN, MUSIC WIRE, B-1054-041, (MCMASTER CARR:9434K62)
POWER MODULE BUTTON, ZINC, M5-.8 TAP THRU X 12MM OD
CONTROLLER, REMOTE PLUS, ASSY, 80 AMP, W/JAZZY600 PROGRAM
CONTROLLER, REMOTE PLUS(PROFILED), ASSY, 80 AMP, W/JAZZY600 PROGRAM
