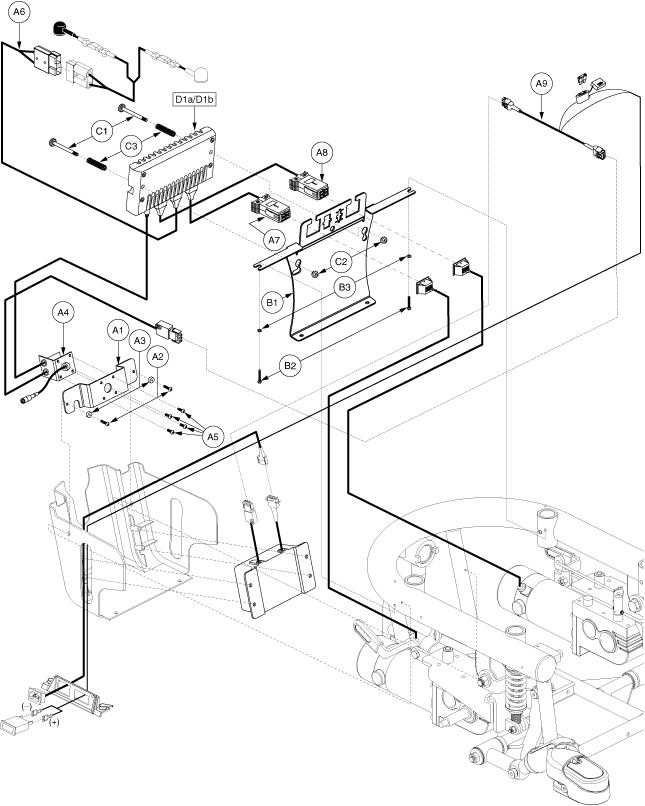

POWER INTERFACE MOUNTING BRACKET, REMOTE PLUS
Monster Scooter Parts
M4-.7x10 mm Black Pan Head Machine Screw (SCRPPH1163/SCRPPH1050)
SPACER, BLACK, NYLON, 4MM ID X 12.7MM OD X 8MM TH, A-1054-011
ELECTRONIC, HARNESS, POWER INTERFACE/CHARGER CABLE, REMOTE PLUS, RIGHT, H-1010-051
Pride Mobility
SCREW,PPH-THREAD CUTTING,BLACK ZINC,6-32 X 0.375",TYPE F (SCRPPH1032)
ELECTRONIC, HARNESS, BATTERY CABLE, REMOTE PLUS, H-1054-007
ELECTRONIC, HARNESS, REMOTE PLUS, MOTOR, 1113, RIGHT
ELECTRONIC, HARNESS, REMOTE PLUS, MOTOR, 1113, LEFT
Monster Scooter Parts
Charger to Controller Harness for the Jet 3 Ultra (DWR1054H006)
MOUNTING BRACKET, ASSY, POWER MODULE W/HARDWARE, JAZZY600
POWER MODULE MOUNTING BRACKET, E-1056-018
SCREW, PAN HEAD, TYPE H, M4X0.7 X 10, FT, ISO 7045, CL 4.8, BZ (USE SCRPPH1163)
Pride Mobility
WASHER, FLAT, 4.3 ID X 12 OD X 1 THK, ISO 7093-1 (GB/T 96.1), STL, BLK (WASMETR1042)
QUICK RELEASE BUTTON, ASSY, REMOTE PLUS POWER MODULE, JAZZYULTRA
POWER MODULE SCREW, ZINC, M5-.8 X 55MM, B-1054-040
POWER MODULE BUTTON, ZINC, M5-.8 TAP THRU X 12MM OD
SPRING, COMPRESSION, BRIGHT ZINC, 1.50" FL X 0.30'' OD X 0.038" WIRE DIA X RATE:13.5LBS/IN, MUSIC WIRE, B-1054-041, (MCMASTER CARR:9434K62)
CONTROLLER, REMOTE PLUS, ASSY, 80 AMP, W/JAZZY600 PROGRAM
CONTROLLER, REMOTE PLUS(PROFILED), ASSY, 80 AMP, W/JAZZY600 PROGRAM
