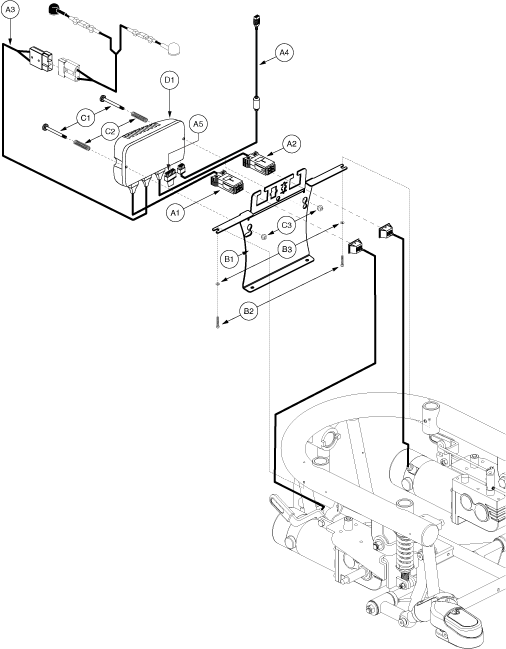

Jazzy 600 - Electronics / Modules - Ne Plus - No Power Seat

Pride Mobility

ELECTRONIC,HARNESS,MOTOR CONTROLLER,Q-LOGIC,CURTIS,JAZZY600/QUANTUM600,RIGHT,H-1056-029 (DWR1056H029)

Pride Mobility

ELECTRONIC,HARNESS,MOTOR CONTROLLER,Q-LOGIC,CURTIS,JAZZY600/QUANTUM600,LEFT,H-1056-028 (DWR1056H028)

Pride Mobility

ELECTRONIC,HARNESS,POWER CABLE,Q-LOGIC,CURTIS,JAZZY600/QUANTUM600,H-1056-027 (DWR1056H027)

Pride Mobility

ELECTRONIC,HARNESS,BUS EXTENSION CABLE,CURTIS,0.410 METER,MALE/FEMALE,H-1111-065,(CURTIS: 17881303) (DWR1111H065)

Monster Scooter Parts

Q-Logic Harness Run Plug for the Jazzy 614 and J6 Power Chairs (DWR1265H027)

MOUNTING BRACKET, ASSY, POWER MODULE W/HARDWARE, JAZZY600

POWER MODULE MOUNTING BRACKET, E-1056-018

SCREW, PAN HEAD, TYPE H, M4X0.7 X 10, FT, ISO 7045, CL 4.8, BZ (USE SCRPPH1163)

Pride Mobility

WASHER, FLAT, 4.3 ID X 12 OD X 1 THK, ISO 7093-1 (GB/T 96.1), STL, BLK (WASMETR1042)

Pride Mobility

QUICK RELEASE BUTTON,ASSY,POWER MODULE,B-1116-054 (HDWASMB1059)

POWER MODULE BUTTON SCREW, B-1056-023

SPRING, COMPRESSION, BRIGHT ZINC, 1.50" FL X 0.30'' OD X 0.038" WIRE DIA X RATE:13.5LBS/IN, MUSIC WIRE, B-1054-041, (MCMASTER CARR:9434K62)

POWER MODULE BUTTON, B-1056-033

CONTROLLER, NE PLUS, CURTIS, ASSY, 75 AMP, W/JAZZY600 PROGRAM
