Pride Mobility
Pride Mobility

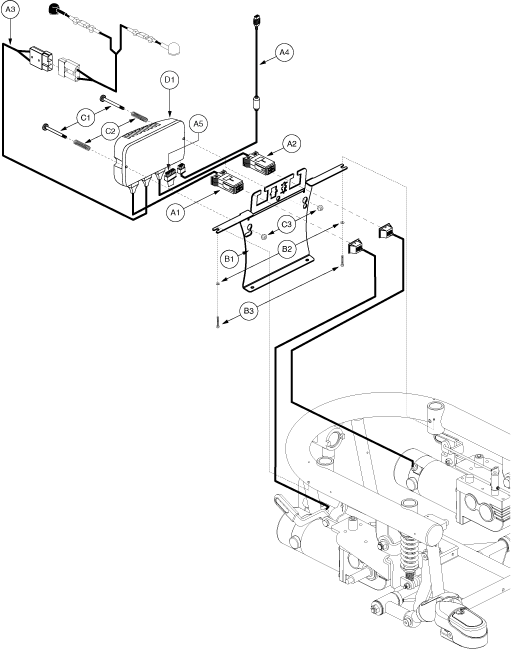

ELECTRONIC,HARNESS,MOTOR CONTROLLER,Q-LOGIC,CURTIS,JAZZY600/QUANTUM600,LEFT,H-1056-028 (DWR1056H028)
Pride Mobility
ELECTRONIC,HARNESS,POWER CABLE,Q-LOGIC,CURTIS,JAZZY600/QUANTUM600,H-1056-027 (DWR1056H027)
Pride Mobility
Pride Mobility
ELECTRONIC,HARNESS,RUN PLUG,NE,CURTIS,H-1265-061 (DWR1265H061)
MOUNTING BRACKET, ASSY, POWER MODULE W/HARDWARE, JAZZY600
POWER MODULE MOUNTING BRACKET, E-1056-018
SCREW, PAN HEAD, TYPE H, M4X0.7 X 10, FT, ISO 7045, CL 4.8, BZ (USE SCRPPH1163)
Pride Mobility
WASHER, FLAT, 4.3 ID X 12 OD X 1 THK, ISO 7093-1 (GB/T 96.1), STL, BLK (WASMETR1042)
Pride Mobility
QUICK RELEASE BUTTON,ASSY,POWER MODULE,B-1116-054 (HDWASMB1059)
POWER MODULE BUTTON SCREW, B-1056-023
SPRING, COMPRESSION, BRIGHT ZINC, 1.50" FL X 0.30'' OD X 0.038" WIRE DIA X RATE:13.5LBS/IN, MUSIC WIRE, B-1054-041, (MCMASTER CARR:9434K62)
POWER MODULE BUTTON, B-1056-033
CONTROLLER, NE, CURTIS, ASSY, 75 AMP, W/JAZZY600 PROGRAM
