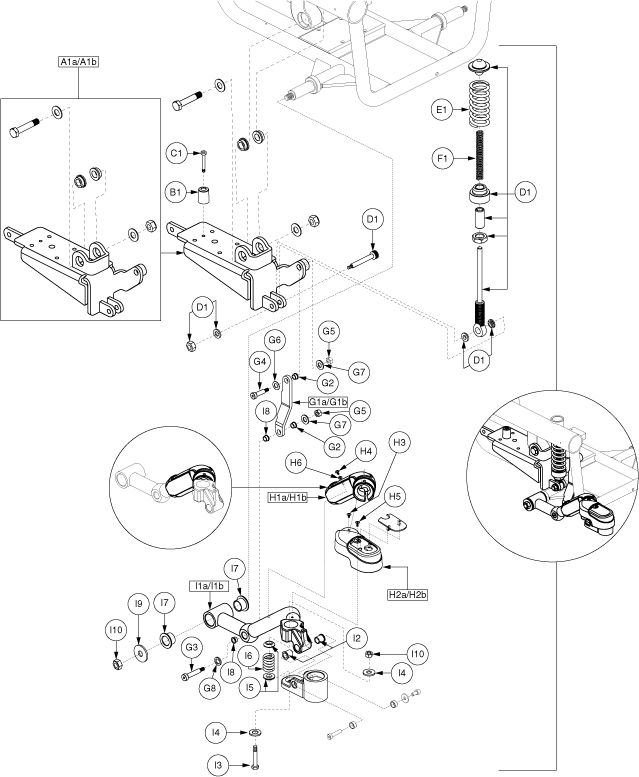

Jazzy 600 - Caster Arm / Active Trac - Active Trac - Freewheel, Motor Mount & Suspension - Used On Group 2 Models - Version 2

ANTI-TIP, ASSY, ACTIVE TRACK, W/MOTOR MOUNT, JAZZY600, RIGHT

ANTI-TIP, ASSY, ACTIVE TRACK, W/MOTOR MOUNT, JAZZY600, LEFT

Pride Mobility

DWR1056B062 - Black Rubber Bumper, 6.5mm ID x 25mm OD x 32mm, Shore 90 A for Quantum Q6 Edge HD, Q6 Edge Z & 6000 Power Chairs

Pride Mobility

SCRSHCS1015 - M6-1.0 X 30 mm Black Zinc Machine Screw

STRUT, ASSY, FRONT SUSPENSION W/LIMIT STOP, JAZZY600, C-1056-089

SPRING, BLACK, 3.00"FL X 1.390"OD X .195"WIRE DIA X RATE:220 LBS/IN

SPRING, BLACK, 3.25"L X .75"OD X .060"WIRE DIA X RATE 6.9

ANTI-TIP, ASSY, TRANSFER LINK, ACTIVE-TRACK, RIGHT, B-1056-053

ANTI-TIP, ASSY, TRANSFER LINK, ACTIVE-TRACK, LEFT, B-1056-054

TRANSFER LINK, ACTIVE-TRACK, RIGHT, C-1056-046

TRANSFER LINK, ACTIVE-TRACK, LEFT, C-1056-047

BOLT, SHOULDER, BLACK ZINC, 10MM X 30MM, GRADE 12.9

BOLT, SHOULDER, 10MM X 25MM, CUSTOM THREAD LENGTH

NUT, NYLOCK, BLACK ZINC CHROMATE, M8-1.25, GRADE 8

WASHER, BLACK, NYLON, 10.5MM ID X 20MM OD X 1MM TH

WASHER, FLAT, BLACK ZINC, 8.4MM ID X 16MM OD X 1.6MM TH

WASHER, BLACK NYLON, 10.5MM ID X 16MM OD X 2.2MM TH

CASTER ARM, ASSY, ARM, W/CASTER BARREL & WHEEL, ACTIVE-TRACK, FRONT/RIGHT, VERSION 2

CASTER ARM, ASSY, ARM, W/CASTER BARREL & WHEEL, ACTIVE-TRACK, FRONT/LEFT, VERSION 2

COVER, CASTER ARM, FOAM, RIGHT, E-1056-039

COVER, CASTER ARM, FOAM, LEFT, E-1056-040

COVER, CASTER ARM, PLASTIC, RIGHT, E-1056-037

COVER, CASTER ARM, PLASTIC, LEFT, E-1056-038

Pride Mobility

SCRPPH1129 - Black PPH Screw, M4-.7 x 12mm for Quantum 600 Power Chairs

Monster Scooter Parts

M4-.7 X 8MM Black Zinc Screw (DWR1354D001)

Pride Mobility

SCRPPH1296 - Black Zinc PPH Screw, M6-1.0 x 10mm for Quantum 600 Power Chairs

Pride Mobility

WASMETR1042 - Black Steel Flat Washer, 4.3 ID x 12 OD x 1 Thick, ISO 7093-1 (GB/T 96.1) for Quantum 600, R4000 & R4400 & R44 Power Chairs

ANTI-TIP, ASSY, ARM, REINFORCED, W/CASTER BARREL, ACTIVE-TRACK, FRONT/RIGHT, JAZZY/QUANTUM600, D-1056-046

ANTI-TIP, ASSY, ARM, REINFORCED, W/CASTER BARREL, ACTIVE-TRACK, FRONT/LEFT, JAZZY/QUANTUM600, D-1056-045

ANTI-TIP ARM WELDMENT, ACTIVE-TRACK, FRONT/RIGHT, D-1056-021

ANTI-TIP ARM WELDMENT, ACTIVE-TRACK, FRONT/LEFT, D-1056-022

Monster Scooter Parts

BRGFLNG1046 - Flange Bearings for Caster Assembly for the Jazzy 600

Monster Scooter Parts

SCRHHCS1444 - M10-1.5x50mm Caster Arm Black Screw for the Jazzy 600

WASHER, FLAT, BLACK ZINC, 10.5MM ID X 20MM OD X 3MM TH

SPRING PIVOT, MUSHROOM, FRONT, B-1056-049

SPRING, BLACK, 1.00" FL X 0.730" OD X 0.148" WIRE DIA X RATE: 1150 LBS/IN, B-1056-056, (LEE SPRING: LHL-750D-1)

BEARING, FLANGE, DELRIN, 19MM ID X 23MM OD X 16MM TH X 32MM FOD X 2MM FTH, B-1056-050

Pride Mobility

BRGFLNG1044 - Black Delrin Flange Bearing, 10mm ID x 13mm OD x 8mm TH x 16mm FOD x 1.50mm FTH for Quantum 6000, 600 & R4000 & R4400 Power Chairs

Pride Mobility

WASMETR1043 - Black Zinc Flat Washer, 10.5 ID x 30 OD x 2.5 Thick, ISO 7093 for Quantum Q6 Edge Z, 610 & 6000 Power Chairs

Pride Mobility

NUTNYLK1073 - Black Zinc Lock Nut, M10 x 1.5, ISO 898-2, CL 8, PVTP (DWG 1714169)

CASTER, ASSY, BARREL, ACTIVE-TRACK, FRONT/RIGHT, JAZZY/QUANTUM600/610, C-1202-007

CASTER, ASSY, BARREL, ACTIVE-TRACK, FRONT/LEFT, JAZZY/QUANTUM600/610, C-1202-008

CASTER, ASSY, FLAT FREE, BLACK RIM/GRAY TIRE, 5" WHEEL, W/FORK & COVERS, RIGHT, W/RADIUS, D-1202-017

CASTER, ASSY, FLAT FREE, BLACK RIM/GRAY TIRE, 5" WHEEL, W/FORK & COVERS, LEFT, W/RADIUS, D-1202-018
