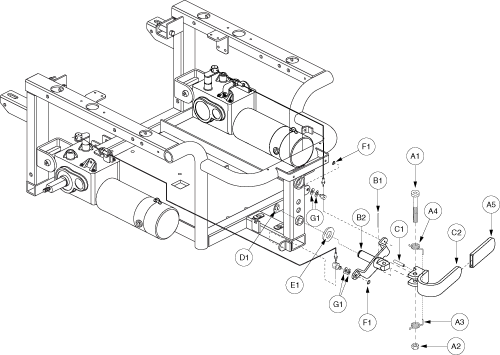

Jazzy 1122 - Freewheel Release Kits - Single Rear Handle - Used On Or After 11- Dec- 2002

BRAKE, ASSY, MAIN, SINGLE LEVER RELEASE, STYLE #3 W/MOUNTING HARDWARE

FREEWHEEL, ASSY, BRAKE, SINGLE LEVER RELEASE, STYLE # 3

SCREW, SHCS, BLACK OXIDE, 1/4-20" X 1-3/4"

Pride Mobility

NUT, LOCK, .250-20, ASME B18.16.6, GR NE2, BZ, PVTP (NUTNYLK1014)

SPRING, 0.31"ID X 0.052" WIRE DIA, TORSION, COUNTER CLOCKWISE

SPRING, TORSION, MUSIC WIRE, 0.31"ID X 0.052" WIRE DIA, CLOCKWISE, A-1500-033

FOAM GRIP, BLACK, 0.1875" X 1.00" X 5.00" X 0.125", (EEZER PRODUCTS: FG1875X1PM1)

HANDLE BRACKET, ASSY, SINGLE LEVER BRAKE RELEASE-STYLE #3, C-1122-053

Pride Mobility

PIN, SPRING, 0.0937 DIA X 0.625 L, ASME B18.8.2, BLACK OXIDE (PINSPRG1018)

FREEWHEEL, SINGLE LEVER BRACKET WELDMENT, C-1122-049

FREEWHEEL, ASSY, HANDLE, SINGLE LEVER FREEWHEEL RELEASE, W/PIN, C-1122-052

DOWEL PIN, 0.1875" DIA X 1.00" L, A-1122-042

FREEWHEEL, WELDMENT, SINGLE LEVER HANDLE, D-1122-021

RETAINING RING, E-CLIP, 0.50"

Pride Mobility

WASHER,NYLON,0.500" ID X 1.125" OD X 0.0625" TH (WASNYLN1018)

RETAINING RING, ZINC PLATED, 0.25", EXTERNAL, (MCMASTER-CARR: 98410A113)

WASHER, FLAT, STEEL, 1/4ID, STAINLESS
